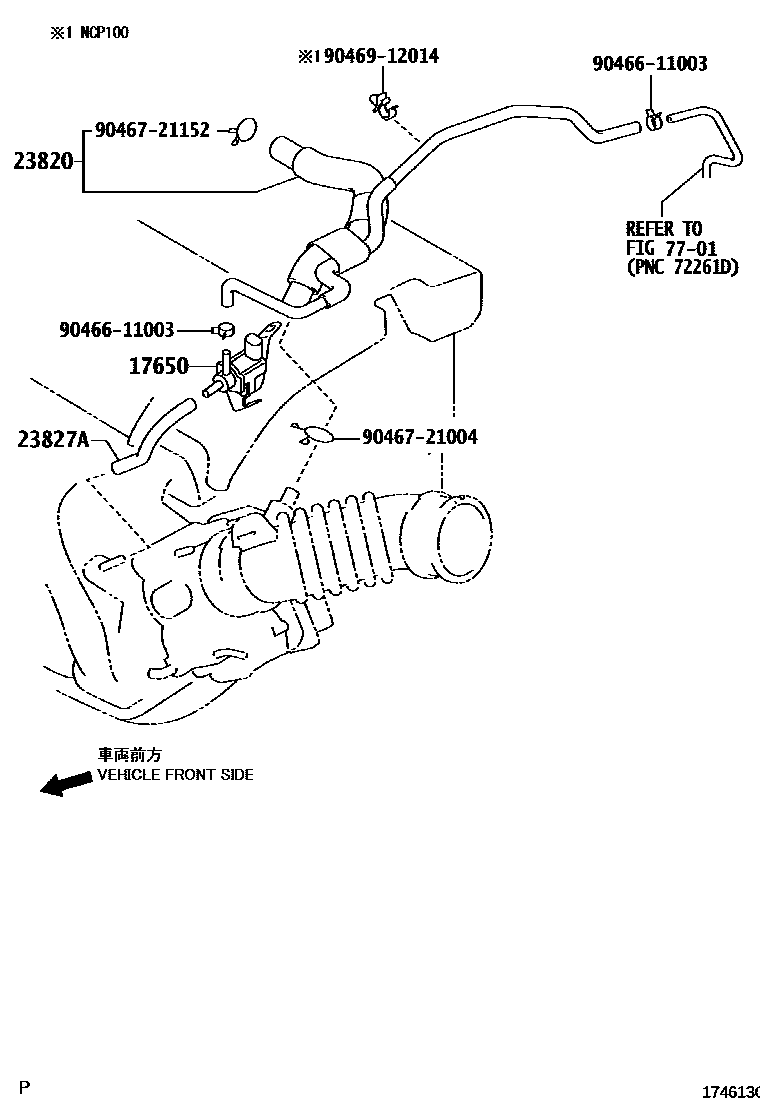

VACUUM PIPING

0001 1 0002 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-21070i1NZFE..NCP10#200712

23820HOSE ASSY, FUEL VAPOR FEED

main23820-21090i1NZFE..NCP100200712

main23820-21100i1NZFE..NCP105200509-200712

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21150i1NZFE..NCP10#200602-200712

main23827-23040i2SZFE..SCP100200712-201008

main95328-07017i1NZFE..NCP10#200509-200601

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9046611003

main90466-11003

9046721004

main90467-21004

9046721152

main90467-21152

9046912014

main90469-12014

8 parts on this diagram · 2 diagrams in section
