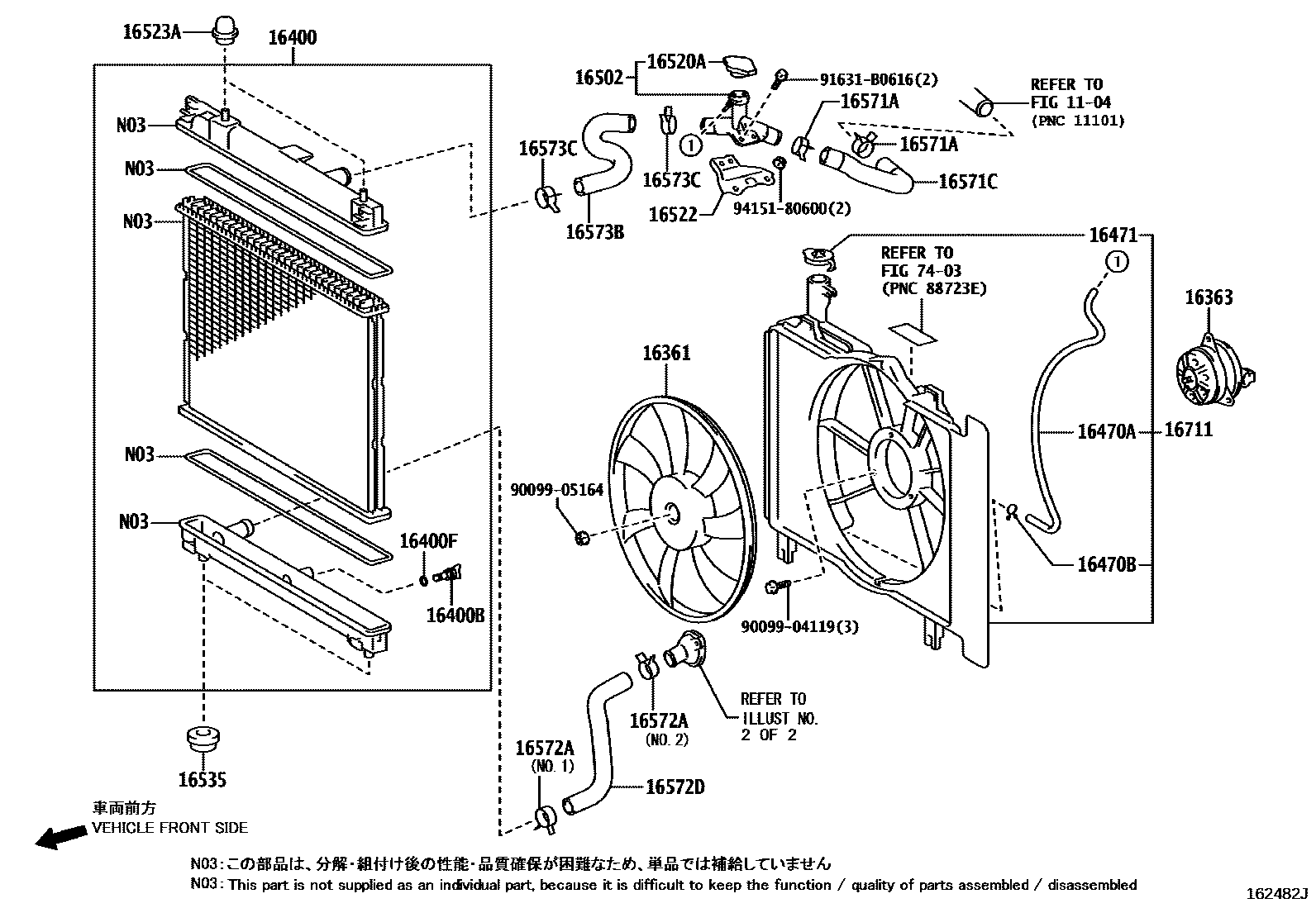

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16361FAN

main16361-21090i1NZFE..NCP105200509-200712

main16361-21100i1NZFE..NCP100200712

main16361-23070i2SZFE..SCP100200712

16363MOTOR, COOLING FAN

main16363-28150i1NZFE..NCP100; 2SZFE..SCP100200509-200712

main16363-28160i1NZFE..NCP105200712

16400RADIATOR ASSY

main16400-21270i1NZFE..NCP100200712-201008

main16400-21300i1NZFE..NCP105200712-201008

main16400-23160i2SZFE..SCP100200712-201008

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1NZFE..NCP10#; 2SZFE..SCP100200509-200712

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZFE..NCP10#; 2SZFE..SCP100200712

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-21200i1NZFE..NCP10#200712-201008

main90445-12078i2SZFE..SCP100200712

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZFE..NCP10#; 2SZFE..SCP100200509-200712

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i1NZFE..NCP10#; 2SZFE..SCP100200509-200712

16502FILLER SUB-ASSY, WATER

main16502-21060i1NZFE..NCP10#200509-200712

main16502-23010i2SZFE..SCP100200509-200712

16520ACAP SUB-ASSY, WATER FILLER

main16401-31480i1NZFE..NCP10#200902

main16401-62100i1NZFE..NCP10#; 2SZFE..SCP100200509-200712

16522BRACKET, WATER FILLER

main16522-21010i1NZFE..NCP10#200509-200712

16523ACUSHION, RADIATOR SUPPORT

main16523-21030×2i1NZFE..NCP10#; 2SZFE..SCP100200509-200712

16535SUPPORT, RADIATOR, LOWER

main90480-22025×2i1NZFE..NCP10#; 2SZFE..SCP100200509-200712

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33006×2i1NZFE..NCP10#200712

16571CHOSE, RADIATOR, NO.1

main16571-21120i1NZFE..NCP10#200712

main16571-23080i2SZFE..SCP100200712

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33006i1NZFE..NCP10#200712

main90467-34004i1NZFE..NCP10#200509-200712

16572DHOSE, RADIATOR, NO.2

main16572-21090i1NZFE..NCP10#200509-200712

main16572-23080i2SZFE..SCP100200509-200712

main16572-23081i2SZFE..SCP100200905

16573BHOSE, RADIATOR, NO.3

main16573-21060i1NZFE..NCP10#200509-200712

main16573-23010i2SZFE..SCP100200509-200712

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006×2i1NZFE..NCP10#; 2SZFE..SCP100200509-200712

16711SHROUD, FAN

main16711-21110i1NZFE..NCP10#200509-200712

main16711-23090i2SZFE..SCP100200712

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9009904119

main90099-04119

9009905164

main90099-05164

91631B0616

main91631-B0616

9415180600

main94151-80600

26 parts on this diagram · 5 diagrams in section
