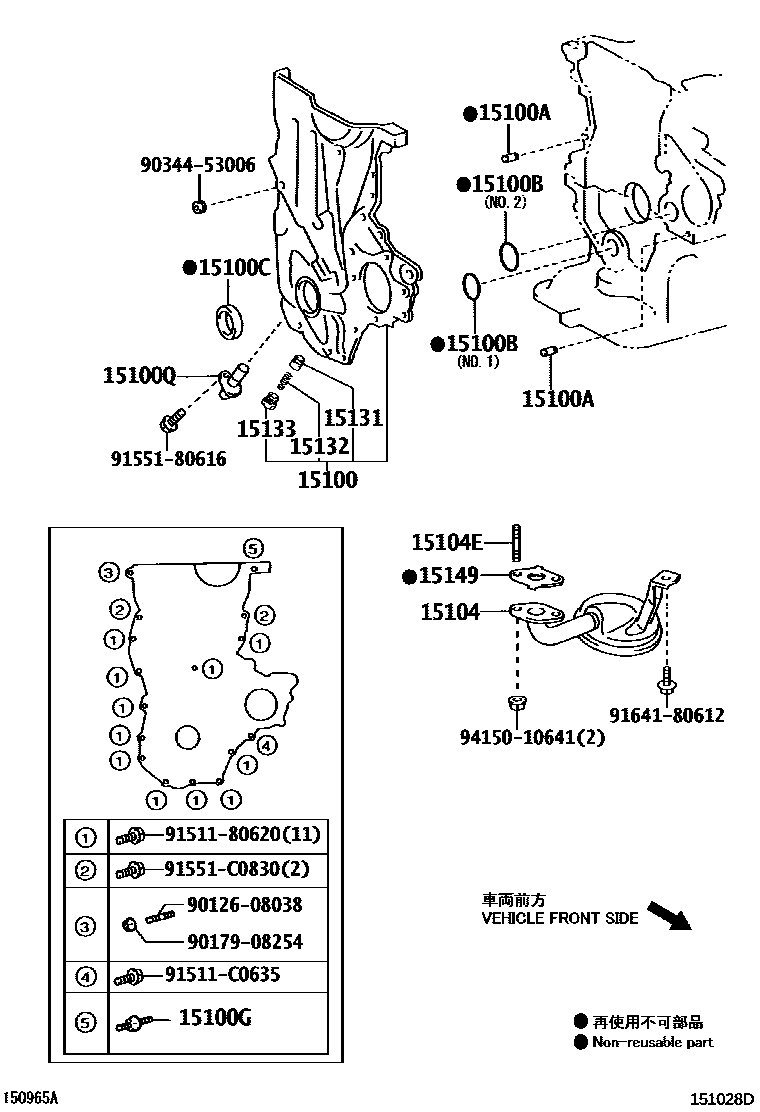

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-21040i1NZFE..NCP105200712

main15100-21060i1NZFE..NCP100200509-200712

main15100-23030i2SZFE..SCP100200509-200606

main15100-23040i2SZFE..SCP100200606-200712

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i1NZFE..NCP10#200509-200712

15100BRING, O(FOR OIL PUMP)

main90301-31012i1NZFE..NCP10#200509-200712

main90301-42006i1NZFE..NCP10#200509-200712

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFE..NCP10#200509-200712

15100GBOLT,STUD(FOR OIL PUMP)

main90109-08283i1NZFE..NCP10#200509-200712

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE..NCP10#200509-200712

15104STRAINER SUB-ASSY, OIL

main15104-21021i1NZFE..NCP10#200509-200612

main15104-21022i1NZFE..NCP10#200612-200712

main15104-23070i2SZFE..SCP100200509-200712

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i1NZFE..NCP10#200509-200712

main92122-B0614×2i2SZFE..SCP100200509-200712

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NCP10#200509-200712

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i1NZFE..NCP105200712

main15132-21060i1NZFE..NCP100200509-200712

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21030i1NZFE..NCP10#200509-200712

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFE..NCP10#200509-200712

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151180620

main91511-80620

91511C0635

main91511-C0635

9155180616

main91551-80616

91551C0830

main91551-C0830

9164180612

main91641-80612

9415010641

main94150-10641

21 parts on this diagram · 2 diagrams in section
