WIRING & CLAMP

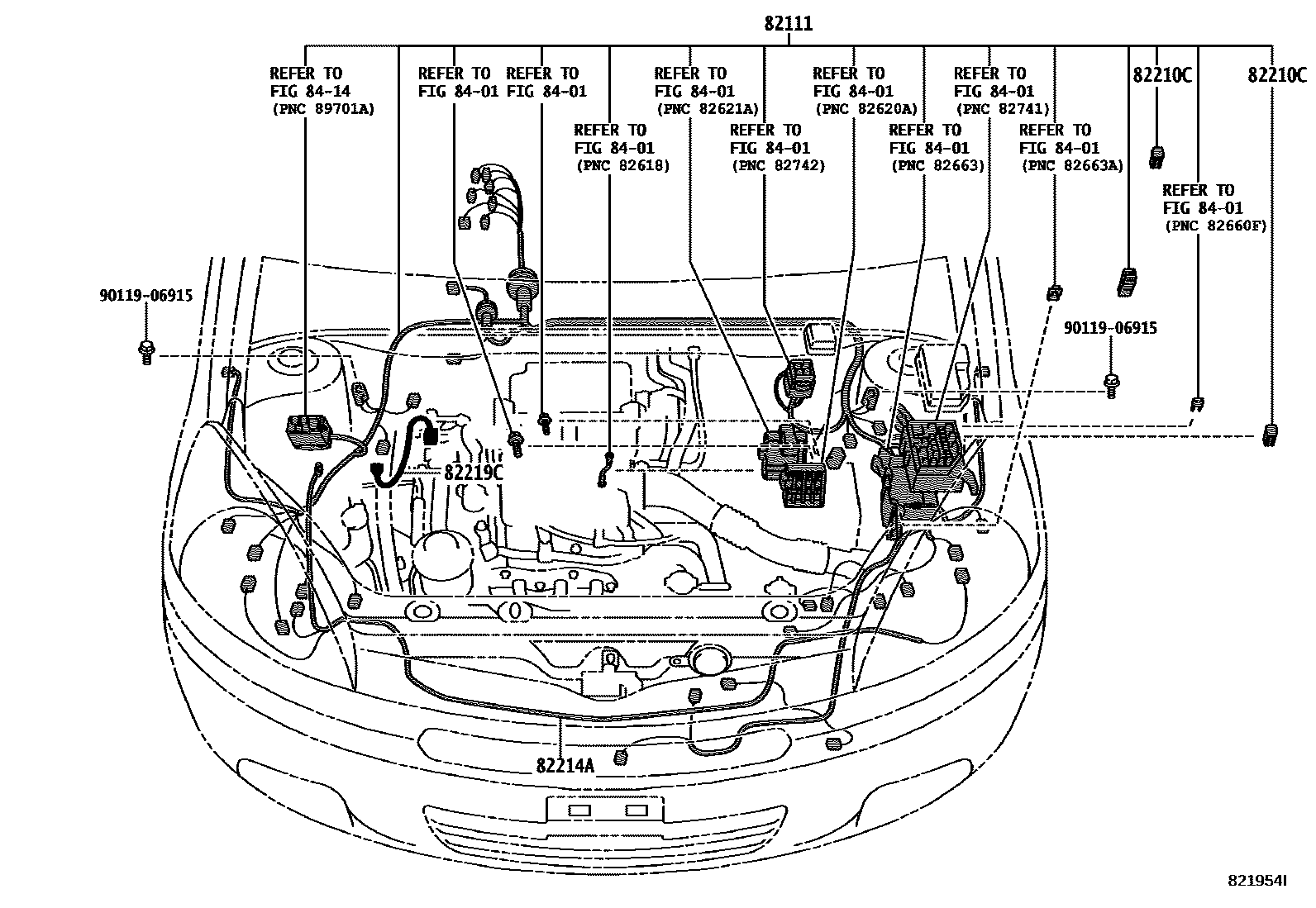

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-52360i199908-199912

main82111-52361i199912-200012

main82111-52362i200012-200208

main82111-52370i199908-199912

main82111-52371i199912-200012

main82111-52372i200012-200208

main82111-52380i199908-199912

main82111-52381i199912-200012

main82111-52382i200012-200208

main82111-52700i199908-199912

main82111-52700i199908-199912

main82111-52701i199912-200012

main82111-52701i199912-200003

main82111-52702i200012-200208

main82111-5C500i200208-200509

main82111-5C510i200208-200509

main82111-5C520i200208-200509

main82111-5C540i200208-200509

main82111-5C550i200208-200509

main82111-5C560i200208-200509

82210CFUSIBLE LINK

main90982-08202i199908-200509

main90982-08254i199908-200509

main90982-08283i199908-200509

main90982-08284i199908-200509

main90982-08285i199908-200509

82214AWIRE, LAMP

main82214-52010i200004-200509

82219CWIRE, SENSOR

main82219-52020i199908-200208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011906915

main90119-06915

7 parts on this diagram · 7 diagrams in section
