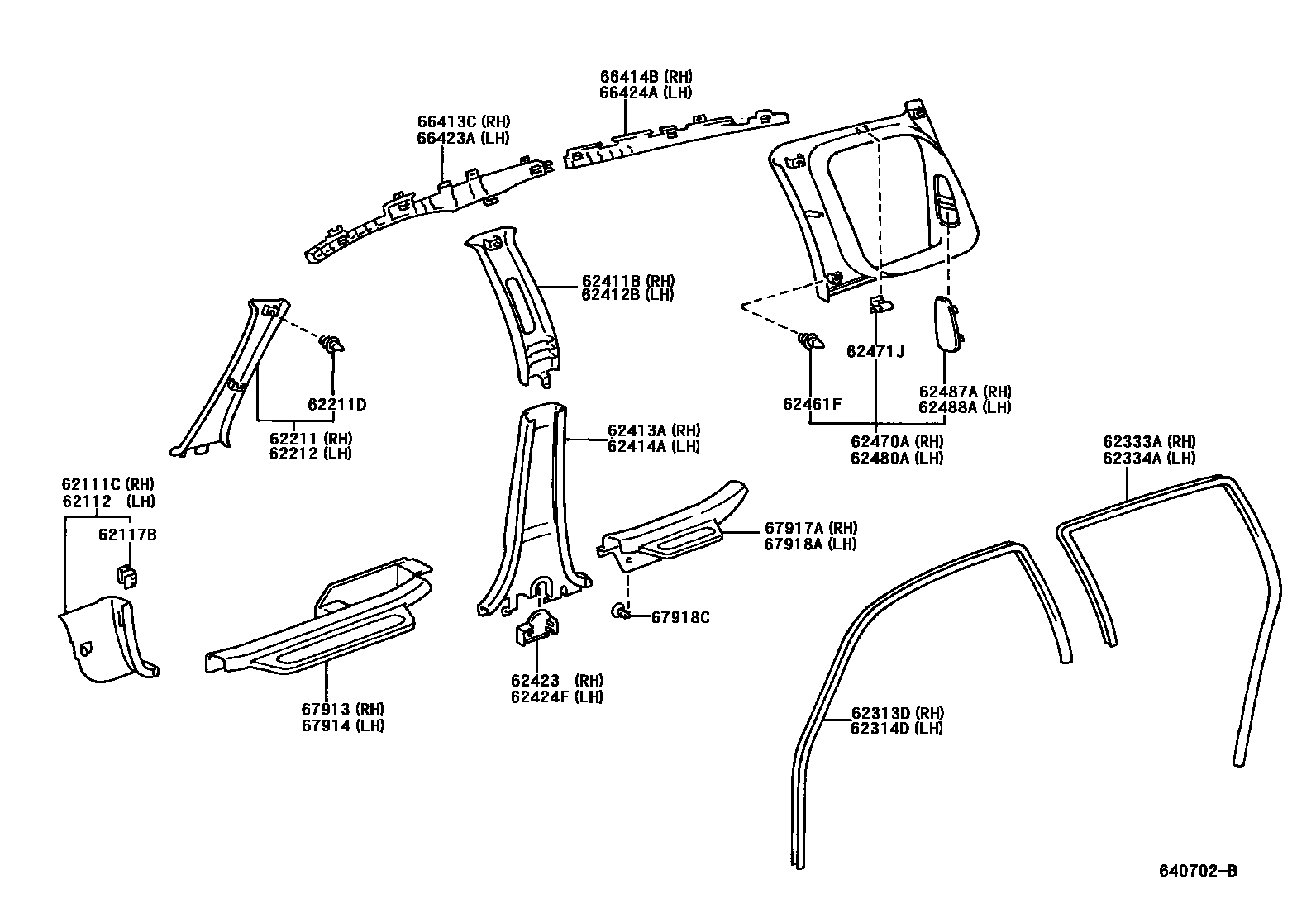

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62211GARNISH, FRONT PILLAR, RH
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
62313DTRIM, FRONT DOOR OPENING, RH
62314DTRIM, FRONT DOOR OPENING, LH
62333ATRIM, REAR DOOR OPENING, RH
62334ATRIM, REAR DOOR OPENING, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
62414AGARNISH, CENTER PILLAR, LOWER LH
62423COVER, CENTER PILLAR GARNISH, LOWER RH
62424FCOVER, CENTER PILLAR GARNISH, LOWER LH
62461FCLIP (FOR ROOF SIDE TRIM GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
62471JCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
62487ACOVER, ROOF SIDE INNER GARNISH, RH
62488ACOVER, ROOF SIDE INNER GARNISH, LH
66413CSPACER, SIDE RAIL, FRONT RH
66414BSPACER, SIDE RAIL, REAR RH
66423ASPACER, SIDE RAIL, FRONT LH
66424ASPACER, SIDE RAIL, REAR LH
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
67918CCLIP(FOR REAR SCUFF PLATE)
31 parts on this diagram · 1 diagram in section
