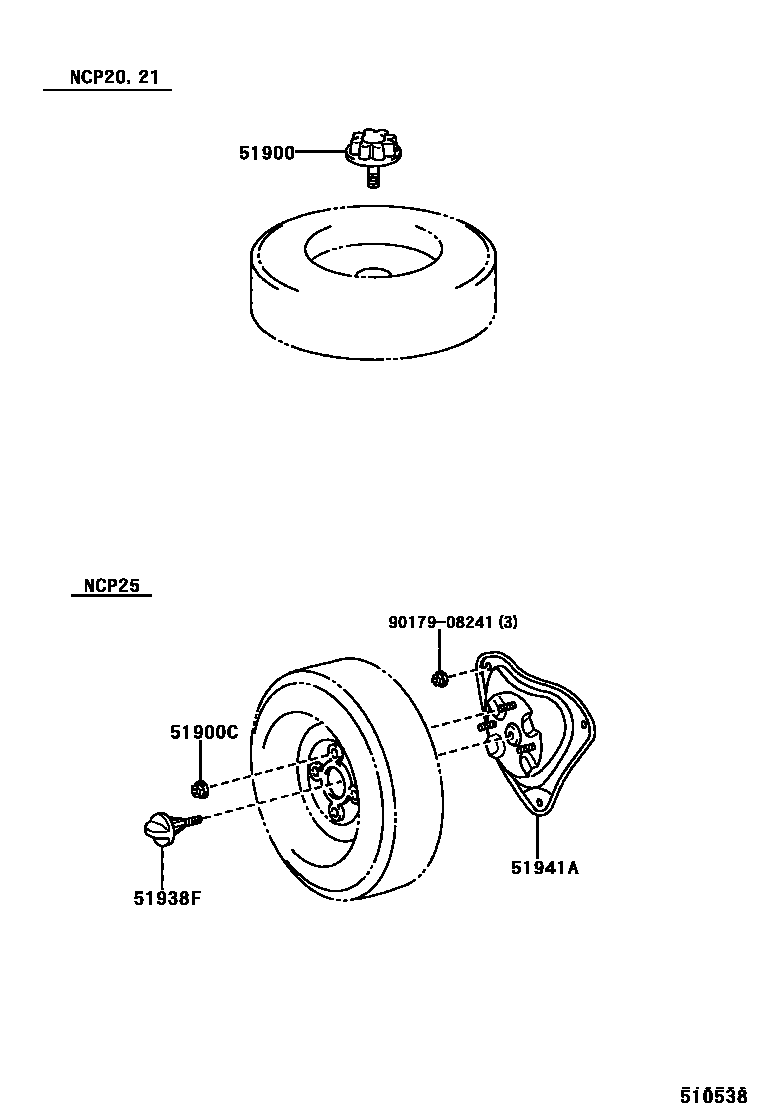

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51931-52010iNCP20,21199908-200208

51900CNUT, SPARE WHEEL, HUB

main51933-52010×3iNCP2#199908-199911

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main51934-52010-B0iNCP25199908-200208

MD.GRAY,TRIM9#

main51934-52010-B1iNCP25200208-200509

DK.GRAY,TRIM1#

main51934-52010-G0iNCP25199908-200208

MIST GREEN,TRIM7#

51941ABRACKET, SPARE WHEEL CARRIER

main51941-52010iNCP2#199908-199911

9017908241

main90179-08241

5 parts on this diagram · 1 diagram in section
