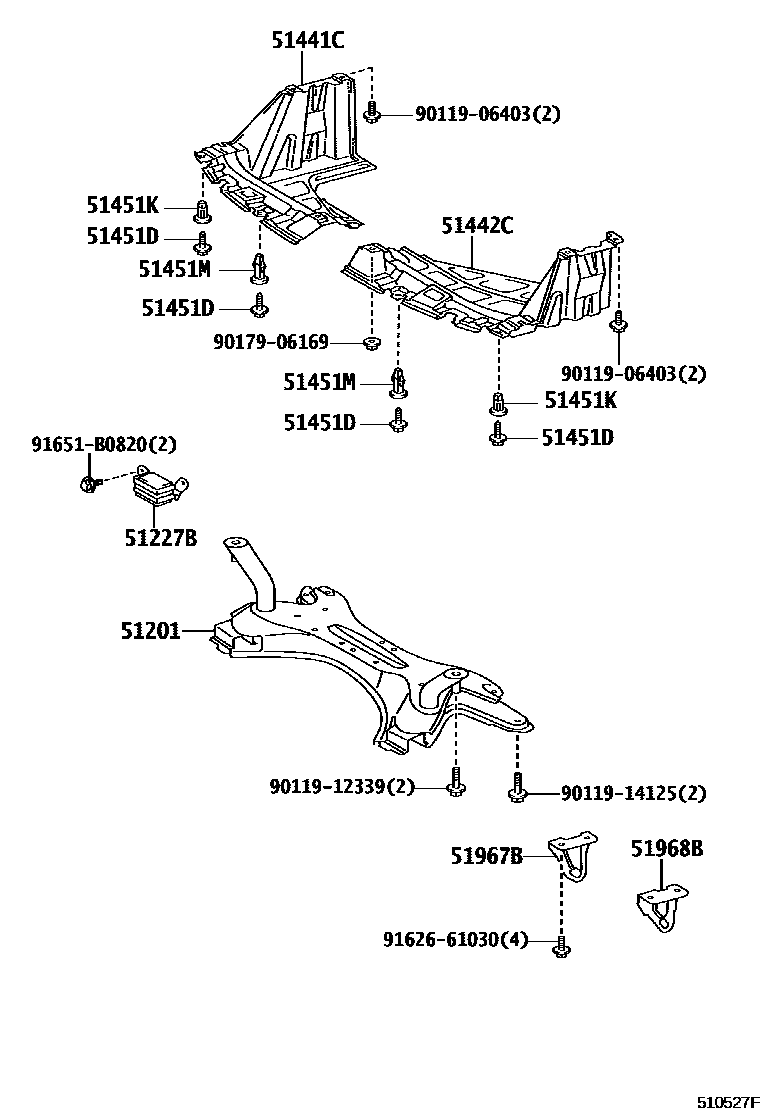

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52010iNCP20,21199908-200001

main51201-52011iNCP20,21200001-200207

main51201-52012iNCP20,21200207-200208

main51201-52013iNCP20,21200208-200305

main51201-52014iNCP20,21200305-200509

main51201-52020iNCP25199908-200001

main51201-52021iNCP25200001-200207

main51201-52022iNCP25200207-200208

main51201-52023iNCP25200305-200509

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-52010iNCP20,21199908-200208

51441CCOVER, ENGINE UNDER, RH

main51441-52010iNCP2#200208-200509

51442CCOVER, ENGINE UNDER, LH

main51442-52010iNCP2#199908-200208

51451DSCREW, NO.1

main90159-60383×4iNCP2#199908-200208

51451KGROMMET, SCREW, NO.1

main90189-06076×2iNCP2#199908-200208

51451MGROMMET, SCREW, NO.2

main90189-06177×2iNCP2#199908-200208

51967BHOOK, TRANSPORT, REAR RH

main51967-10090iNCP20,21199908-200208

51968BHOOK, TRANSPORT, REAR LH

main51967-48010iNCP20,21199908-200208

9011906403

main90119-06403

9011912339

main90119-12339

9011914125

main90119-14125

9017906169

main90179-06169

9162661030

main91626-61030

91651B0820

main91651-B0820

15 parts on this diagram · 1 diagram in section
