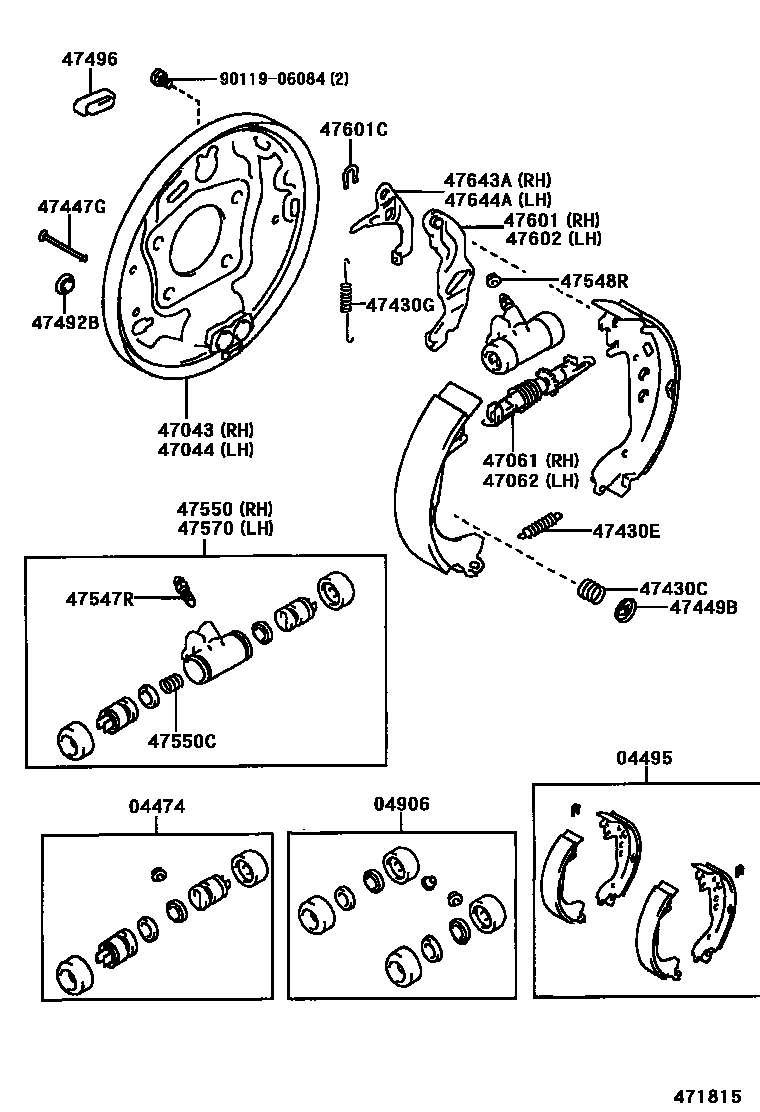

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1

04474CYLINDER KIT, REAR WHEEL

main04474-52010iNCP2#199912-200311

main04474-52020iNCP2#199908-199912

04495SHOE KIT, REAR BRAKE

main04495-52040iNCP2#199908-200509

04906CUP KIT, REAR WHEEL CYLINDER

main04906-52010iNCP2#199912-200509

main04906-52020iNCP2#199908-199912

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52010iNCP20,21199908-200509

main47043-52030iNCP25199908-200509

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52010iNCP20,21199908-200509

main47044-52030iNCP25199908-200509

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-47010iNCP2#199908-200208

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-47010iNCP2#199908-200208

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20147iNCP2#199908-200208

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-14073iNCP2#199908-200208

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-14072iNCP2#199908-200208

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-11010iNCP2#199908-200208

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iNCP2#199908-200208

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iNCP2#199908-200208

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iNCP2#199908-200208

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNCP2#199908-200509

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNCP2#199908-200509

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iNCP2#199908-199911

main47550-52011iNCP2#199912-200509

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014iNCP2#200103-200208

main90501-07006iNCP2#199908-200103

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20101iNCP2#199908-199911

main47570-52011iNCP2#199912-200509

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iNCP2#199908-200509

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iNCP2#199908-200208

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iNCP2#199908-200509

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNCP2#199908-200509

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNCP2#199908-200509

9011906084

main90119-06084
