TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

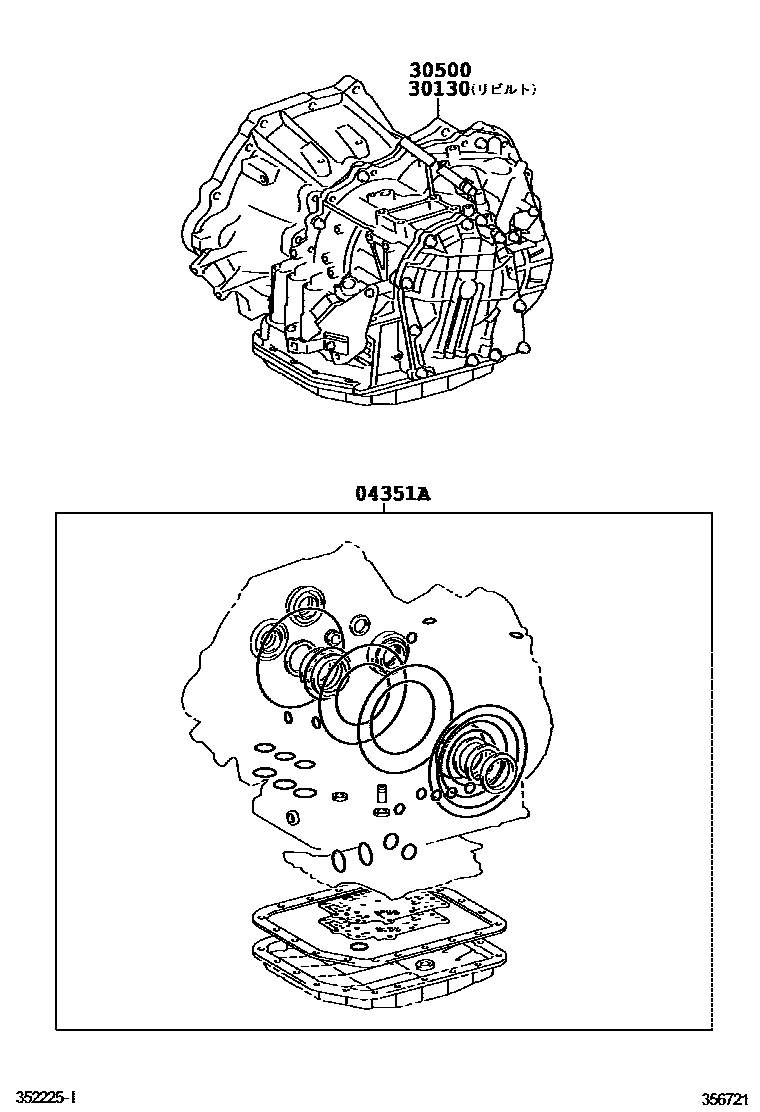

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-52011i199908-200208

main04351-52040i199908-200208

main04351-52240i200503-200509

main04351-52260i200503-200509

main04351-52270i200503-200509

30130TRANSAXLE ASSY, REBUILT

main30130-52060i199908-200208

main30130-52080i199908-200208

main30130-52090i200208-200505

main30130-52091i200506-200507

main30130-52092i200508-200509

main30130-52120i199908-200208

main30130-52230i200208-200505

main30130-52231i200506-200507

main30130-52232i200508-200509

30500TRANSAXLE ASSY, AUTOMATIC

main30500-52060i199908-200208

main30500-52080i199908-200208

main30500-52090i199908-200208

main30500-52091i200506-200508

main30500-52092i200508-200509

main30500-52120i199908-200208

main30500-52230i200208-200506

main30500-52231i200506-200508

main30500-52232i200508-200509

3 parts on this diagram · 2 diagrams in section
