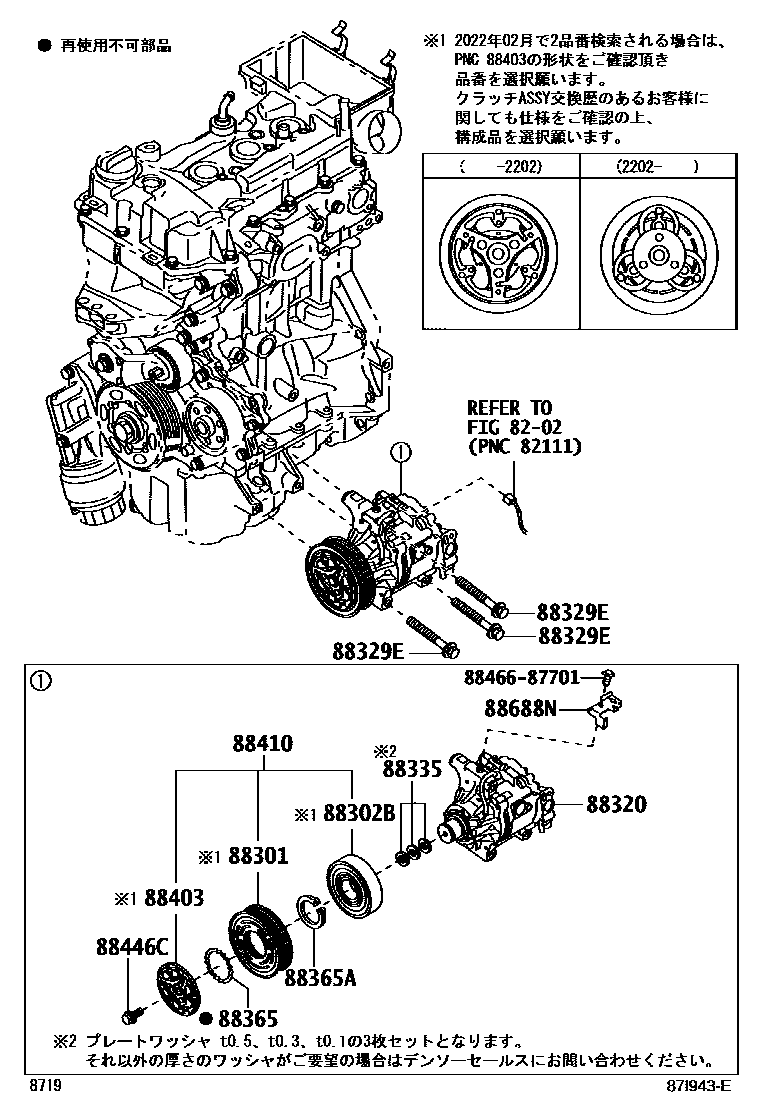

HEATING & AIR CONDITIONING - COMPRESSOR

8202WIRING & CLAMP

→ Go to FIG 82-02

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B1060iM700,710201604-202202

main88412-B1090iM700,710202202-202309

88302BSTATOR, MAGNET CLUTCH

main88411-B1040iM700,710201604-202201

main88411-B1070iM700,710202202-202309

88320COMPRESSOR ASSY, COOLER

main88320-B1070iM700,710201604-201807

main88320-B1080iM700,710201808-202208

main88320-B1100iM700,710202209-202309

88329EBOLT, COMPRESSOR, NO.1

main88329-B1020×3iM700,710201604-202309

88335GASKET KIT, OVERHAUL

main88335-14020iM700,710201604-202309

88365RING, SNAP

main90099-07125iM700,710201604-202309

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iM700,710201604-202309

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-B1020iM700,710202202-202309

main88403-B2020iM700,710201604-201801

main88403-B2040iM700,710201802-202202

88410CLUTCH ASSY, MAGNET

main88410-B1080iM700,710201604-201801

main88410-B1090iM700,710201802-202201

main88410-B1120iM700,710202202-202309

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iM700,710201604-202309

88688NBRACKET, COOLER

main88688-B1090iM700,710201604-202309

8846687701

main88466-87701

13 parts on this diagram · 1 diagram in section
