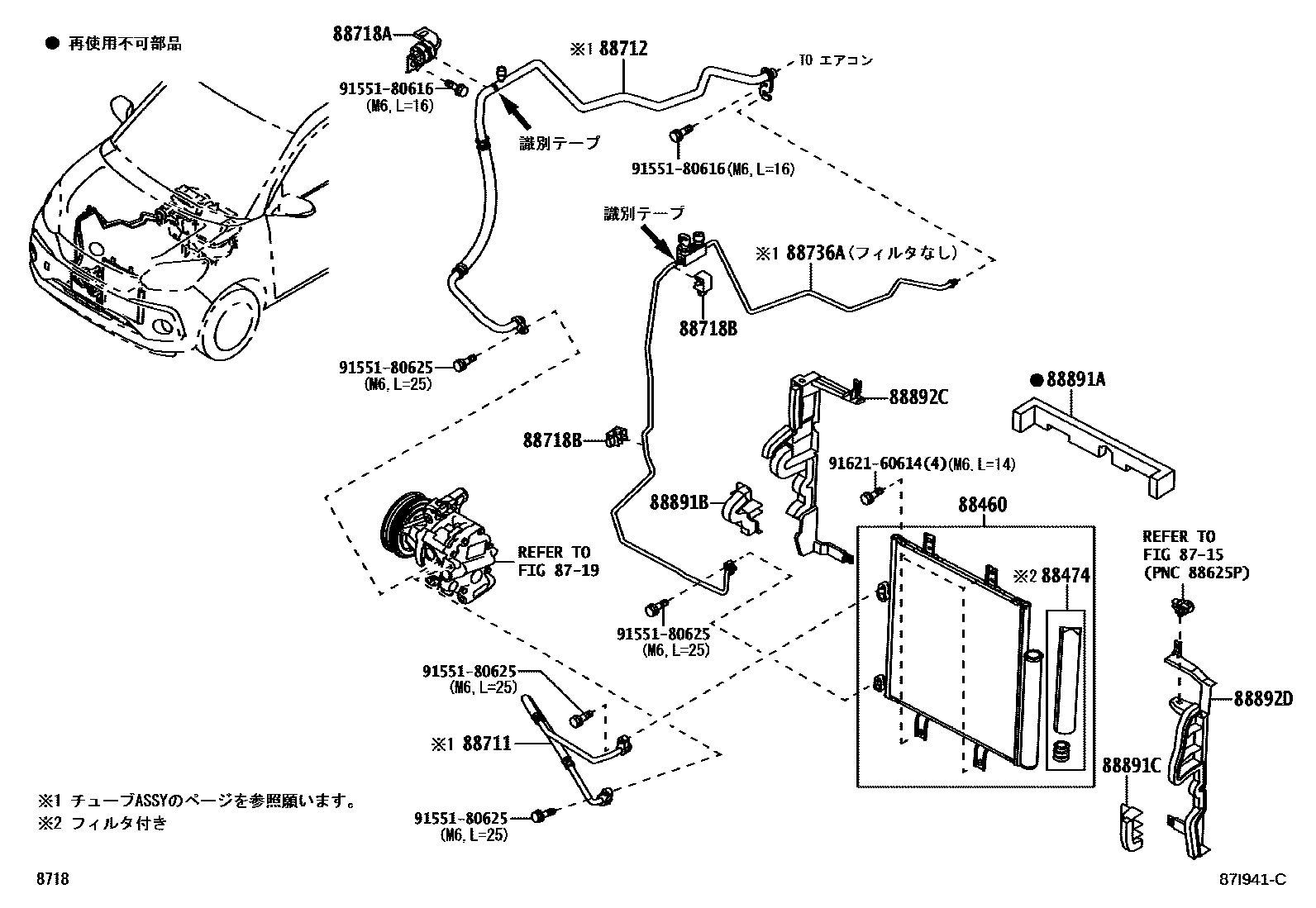

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1������ 0002 1�����ASSY

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-B1010iM700,710201604-202309

88474DRYER, COOLER

main88474-B2010iM700,710201604-202309

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-B1180iM700,710201604-202309

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-B1240iM700,710201604-202208

main88712-B1241iM700,710202208-202309

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-B1070iM700,710201604-202309

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-13060×2iM700,710201604-202309

88736ATUBE, LIQUID, A(FOR COOL BOX)

main88716-B1300iM700,710201604-201810

main88716-B1301iM700,710201810-202202

main88716-B1311iM700,710202202-202208

main88716-B1312iM700,710202208-202309

88891APACKING A (FOR COOLER)

main88578-B1590iM700,710201604-201609

main88578-B1600iM700,710201610-202309

88891BPACKING B (FOR COOLER)

main88619-B1030iM700,710201604-201810

main88619-B1060iM700,710201810-202309

88891CPACKING C (FOR COOLER)

main88629-B1010iM700,710201604-201810

main88629-B1040iM700,710201810-202309

88892CPLATE, CONDENSER, NO.1

main53285-B1010iM700,710..X201604-202309

main53285-B1030iM700,710..MODA201604-201810

main53285-B1040iM700,710..MODA201810-202309

88892DPLATE, CONDENSER, NO.2

main53286-B1010iM700,710..X201604-201810

main53286-B1030iM700,710..MODA201604-201810

main53286-B1040iM700,710..X201810-202309

main53286-B1050iM700,710..MODA201810-202309

9155180616

main91551-80616

9155180625

main91551-80625

9162160614

main91621-60614

17 parts on this diagram · 2 diagrams in section
