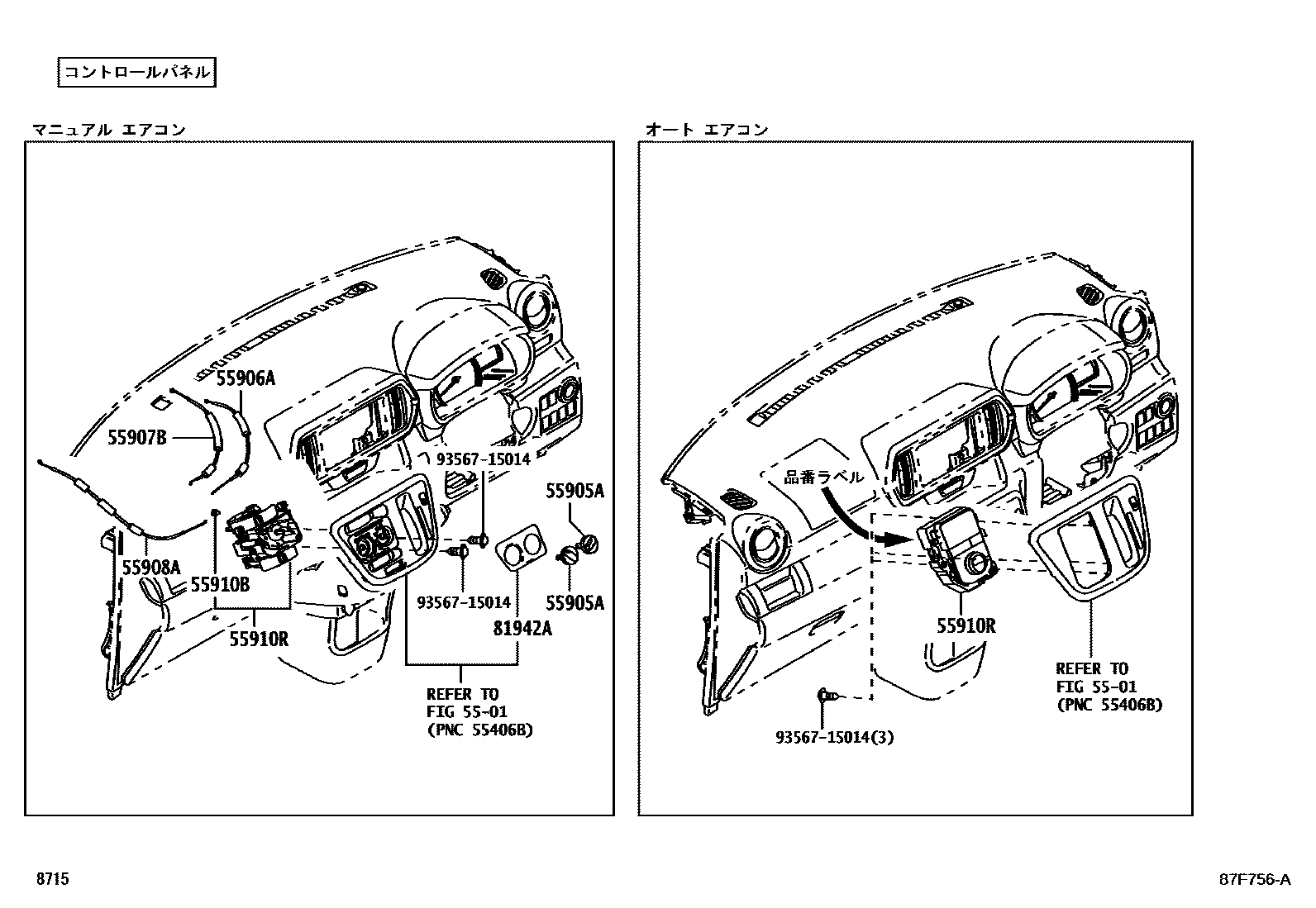

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������ ���� 0002 1�� ���� 0003 1���

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55905AKNOB, HEATER CONTROL

main55905-B2190×2iM700,710..X201604-201810

mainGAITONASHIsupersedes 55905-B2190iM700,710..X201604

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-B1070iM700,710..X201604-201810

mainGAITONASHIsupersedes 55906-B1070iM700,710..X201604

55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL

main55907-B1070iM700,710..X201604-201810

mainGAITONASHIsupersedes 55907-B1070iM700,710..X201604

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-B1070iM700,710..X201604-201810

mainGAITONASHIsupersedes 55908-B1070iM700,710..X201604

55910BBULB, HEATER CONTROL

main81936-B2040iM700,710..X201604-201810

mainGAITONASHIsupersedes 81936-B2040iM700,710..X201604

55910RCONTROL ASSY, HEATER

main55910-B1150iM700,710..MODA201604-201810

main55910-B1170iM700,710..MODA201810-201811

main55910-B1171iM700,710..MODA201811-202104

main55910-B1172iM700,710..MODA202104-202309

main55910-B1151iM700,710..X201811-202104

main55910-B1152iM700,710..X202104-202309

main55910-B1160iM700,710..X201604-202009

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-B1380iM700,710..X201604-201810

mainGAITONASHIsupersedes 81942-B1380iM700,710..X201604

9356715014

main93567-15014

9 parts on this diagram · 3 diagrams in section
