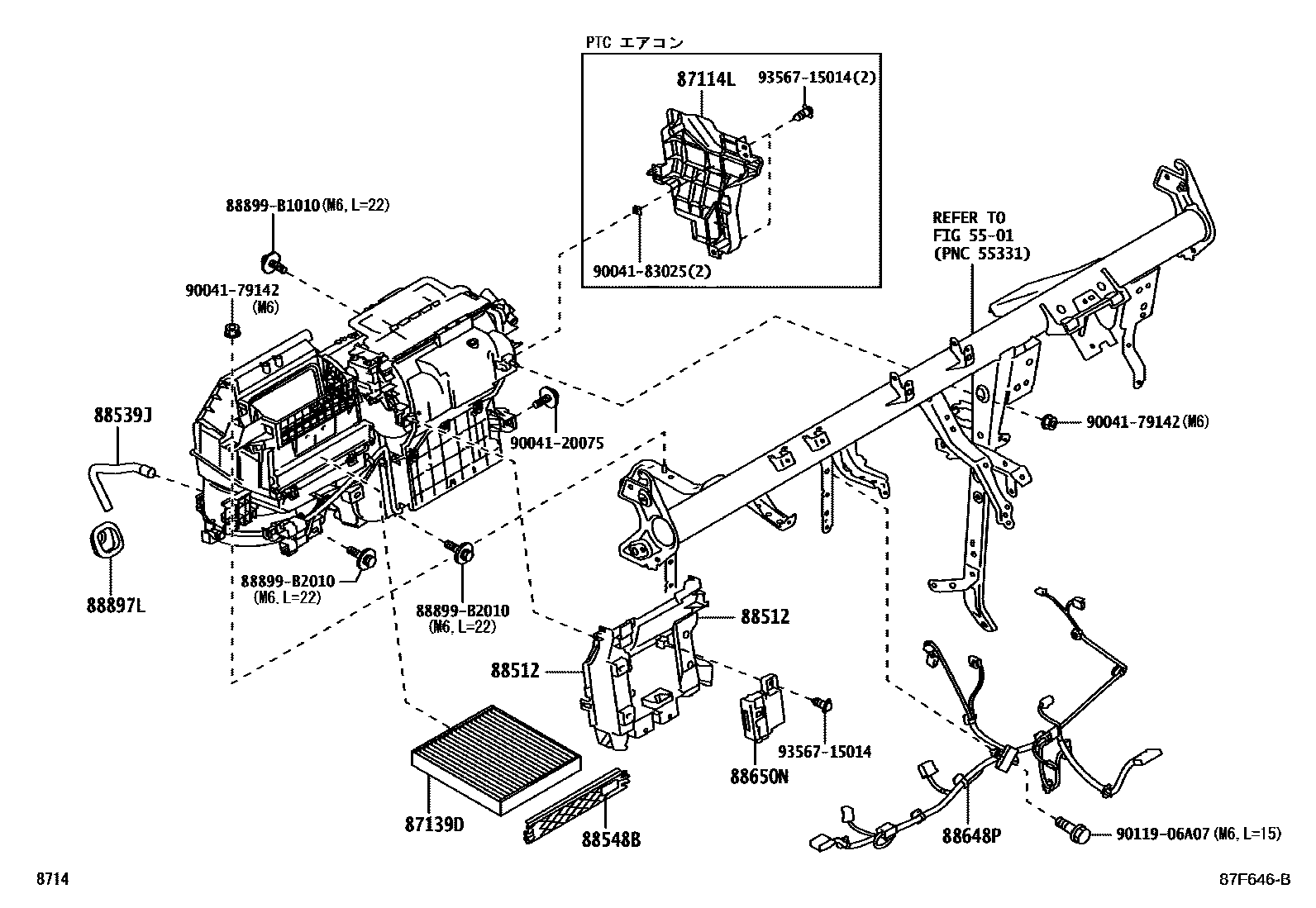

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1����� ���� 0003 1��� ���� 0004 1������� �����

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

87114LCOVER, HEATER, NO.2

main87114-B1030iM700,710..X201604-202104

87139DELEMENT, AIR REFINER

main87139-50100iM700,710201604-202309

main87139-52040iM700,710201604-202309

88512DUCT, AIR

main87214-B1010iM700,710; M700,710..X201604-201810

main87214-B1040iM700,710..X201810-202104

88539JHOSE, DRAIN COOLER

main88539-B1060iM700,710201604-202309

88548BCASE, AIR FILTER

main88548-B1010iM700,710201604-202309

88648PWIRE,AIR CONDITIONER,NO.1

main88648-B1100iM700,710..X201604-202104

main88648-B1110iM700,710..X201604-202104

main88648-B1130supersedes 88648-B1120iM700,710..X201604-202309

88650NAMPLIFIER ASSY, AIR CONDITIONER

main00000-00000supersedes 88650-B1180iM700,710..MODA; M700,710..X201604-202309

main88650-B1180supersedes 00000-00000iM700,710..MODA; M700,710..X201604-202309

88897LGROMMET (FOR DRAIN HOSE)

main88897-B1020iM700,710201604-202309

88899B1010COVER, EVAPORATOR

main88899-B1010

88899B2010COVER, EVAPORATOR

main88899-B2010

9004120075

main90041-20075

9004179142

main90041-79142

9004183025

main90041-83025

9011906A07

main90119-06A07

9356715014

main93567-15014

16 parts on this diagram · 4 diagrams in section
