Toyota PASSO — WIRELESS DOOR LOCK
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
5801FLOOR PAN & LOWER BACK PANEL
6708BACK DOOR PANEL & GLASS
6709BACK DOOR LOCK & HANDLE
8202WIRING & CLAMP
84763FPLATE, SWITCH
84930DSWITCH, DOOR CONTROL
8701MIRROR
89997AANTENNA, ELECTRICAL KEY, NO.2
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
86167B2020SCREW, SPEAKER
9004468378

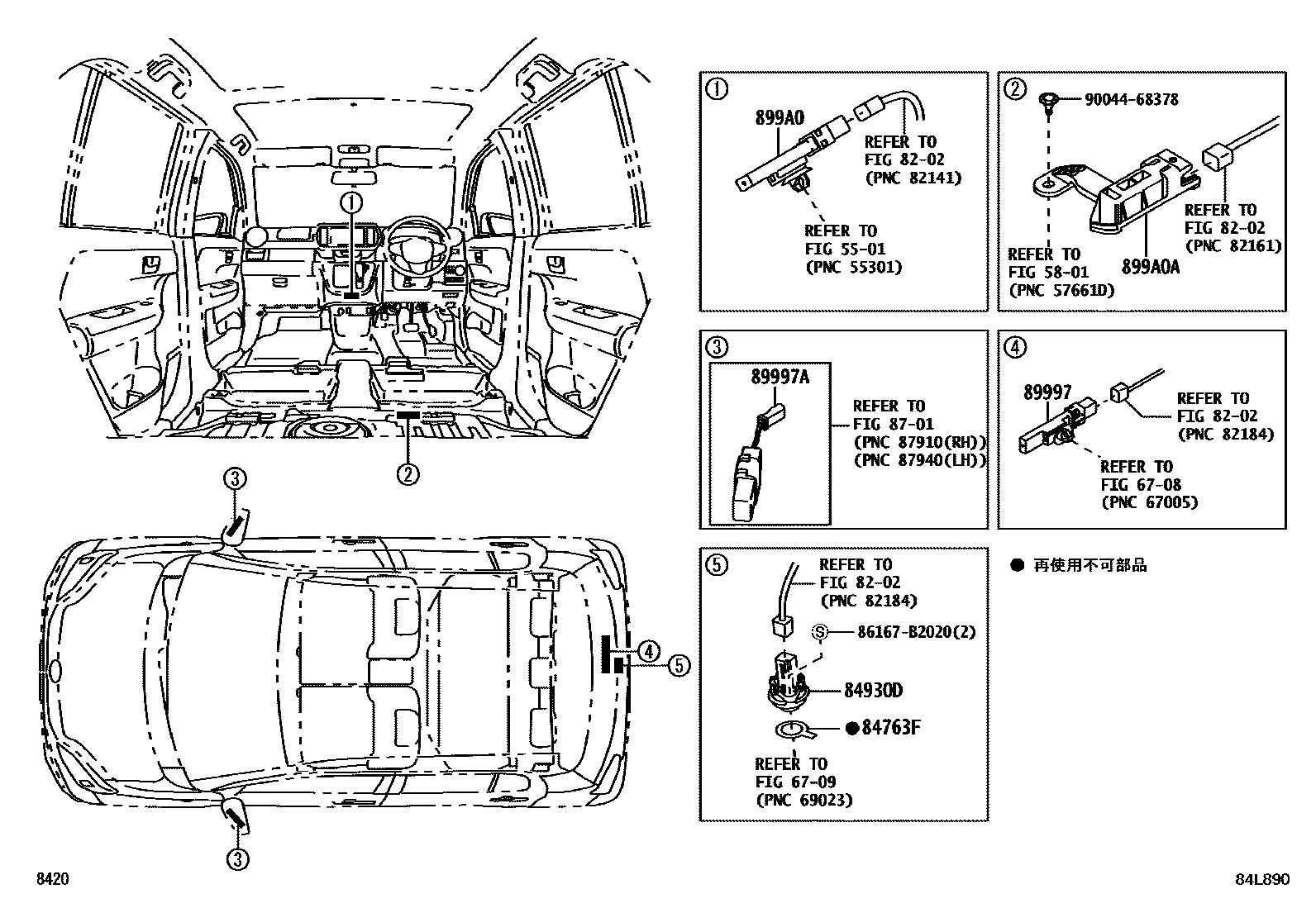

14 parts on this diagram · 1 diagram in section
WIRELESS DOOR LOCK for Toyota PASSO
This section contains 14 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota PASSO. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, FLOOR PAN & LOWER BACK PANEL, BACK DOOR PANEL & GLASS, BACK DOOR LOCK & HANDLE, WIRING & CLAMP.
