CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8202WIRING & CLAMP

→ Go to FIG 82-02

82219HWIRE, SENSOR

main82219-B1050iM700,710..X202104-202309

main82219-B1060iM700,710..MODA201810-202309

main82219-B1020iM700,710201604-201810

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-B1060iM700,710..MODA201810-202309

main89340-B1020iM700,710201604-201610

main89340-B1030iM700,710201611-201810

89341ASENSOR, ULTRASONIC, NO.1

main89341-B2020-A1×2iM700,710..MODA201810

WHITE PEARL MC.CS,W24 ,X99

main89341-B2020-B0×2iM700,710..MODA201810

SILVER ME.,S28

main89341-B2020-C0×2iM700,710..MODA201810

BLACK M.M.,X07

main89341-B2020-D0×2iM700,710..MODA201810

BROWN MC.CS,R59

main89341-B2020-D1×2iM700,710..MODA201810

RED ME.,R67 ,X96

main89341-B2020-D4×2iM700,710..MODA201810

MAGENTA M.M.,R72 ,XE2

main89341-B2020-D5×2iM700,710..MODA201810

JUICY PINK ME.,R73 ,XG7

main89341-B2020-E2×2iM700,710..MODA201810

BEIGE.ME.,T25 ,XE5

main89341-B2020-E5×2iM700,710..MODA201810

COPPER SE.,T33 ,XG2

main89341-B2020-F0×2iM700,710..MODA201810

YELLOW SE.,XE4 ,Y13

main89341-B2020-G2×2iM700,710..MODA201810

DARK GREEN MC.,G58 ,XE3

main89341-B2020-J3×2iM700,710..MODA201810

LIGHT BLUE M.M.,B67

main89341-B2020-R1×2iM700,710..MODA; M700,710..X202104

main89341-B2020-A0×2iM700,710..X201604-201810

main89341-B2020-J1×2iM700,710..MODA; M700,710..X201604-201810

89348DCLIP, ULTRASONIC SENSOR

main89348-35030×3iM700,710..MODA201810-202309

9015970003

main90159-70003

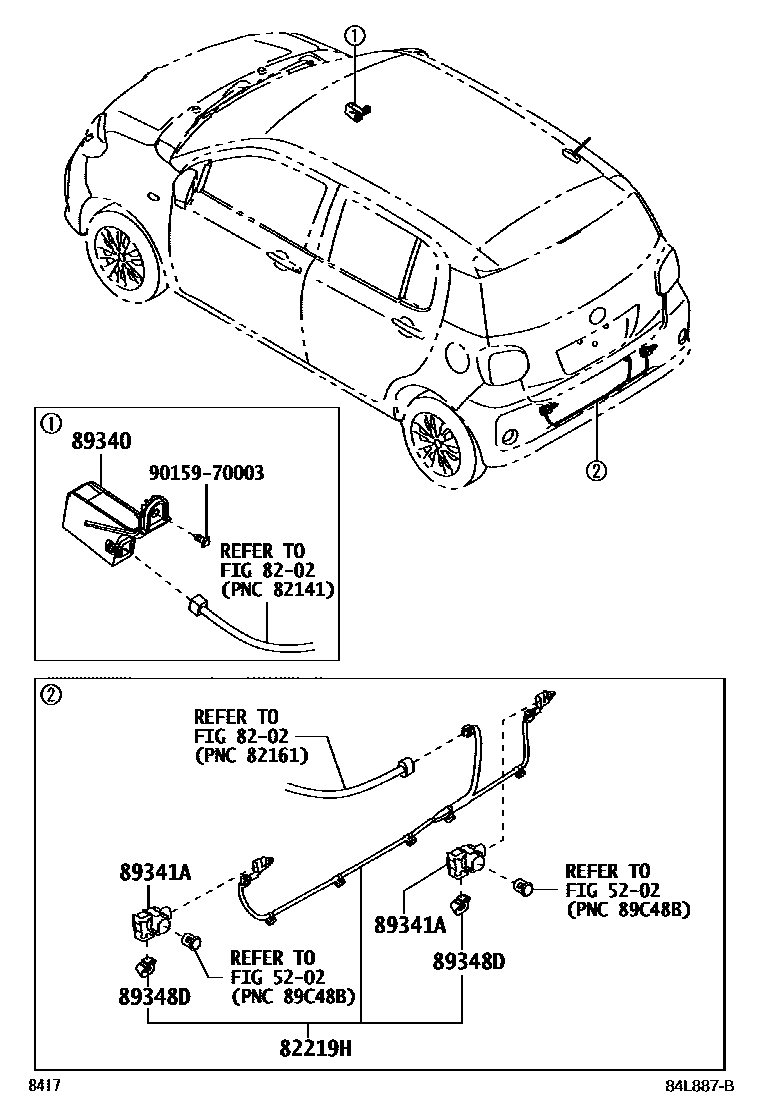

7 parts on this diagram · 3 diagrams in section
