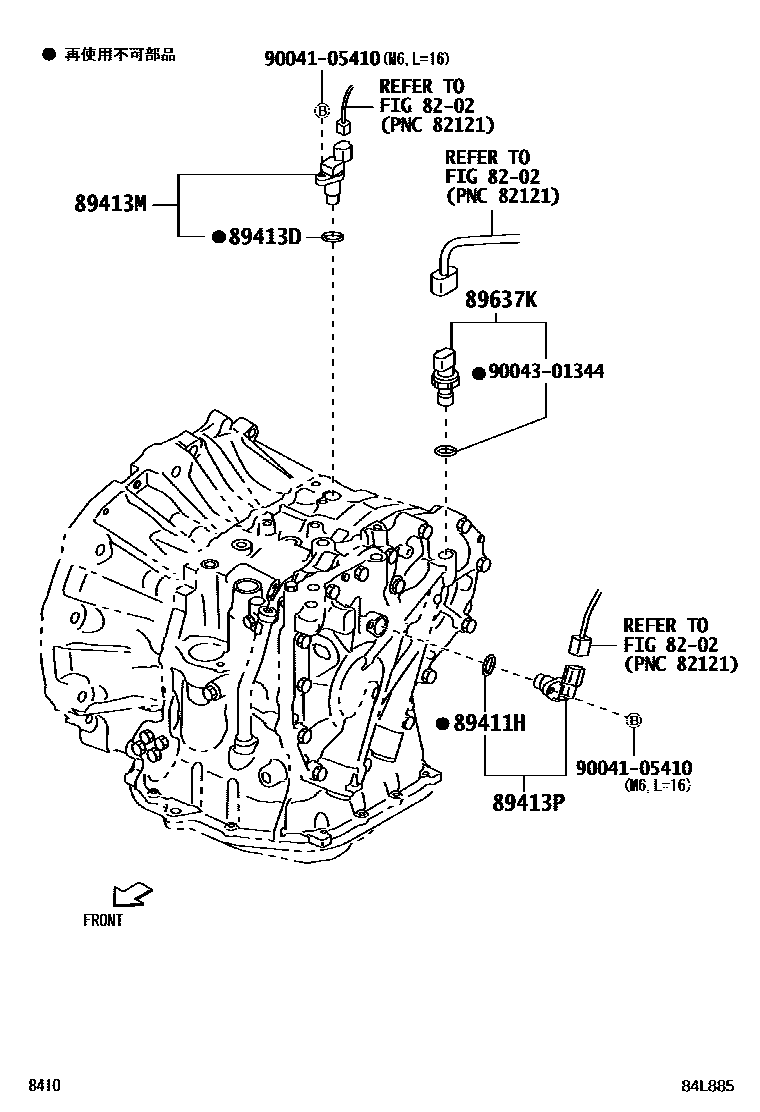

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8202WIRING & CLAMP

→ Go to FIG 82-02

89411HRING, O

main90043-01278iM700,710201604-202309

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278iM700,710201604-202309

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-97202iM700,710201604-202309

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-B2010iM700,710201604-202309

89637KSENSOR, OIL PRESSURE

main89637-B2010iM700,710201604-202309

9004105410

main90041-05410

9004301344

main90043-01344

8 parts on this diagram · 1 diagram in section
