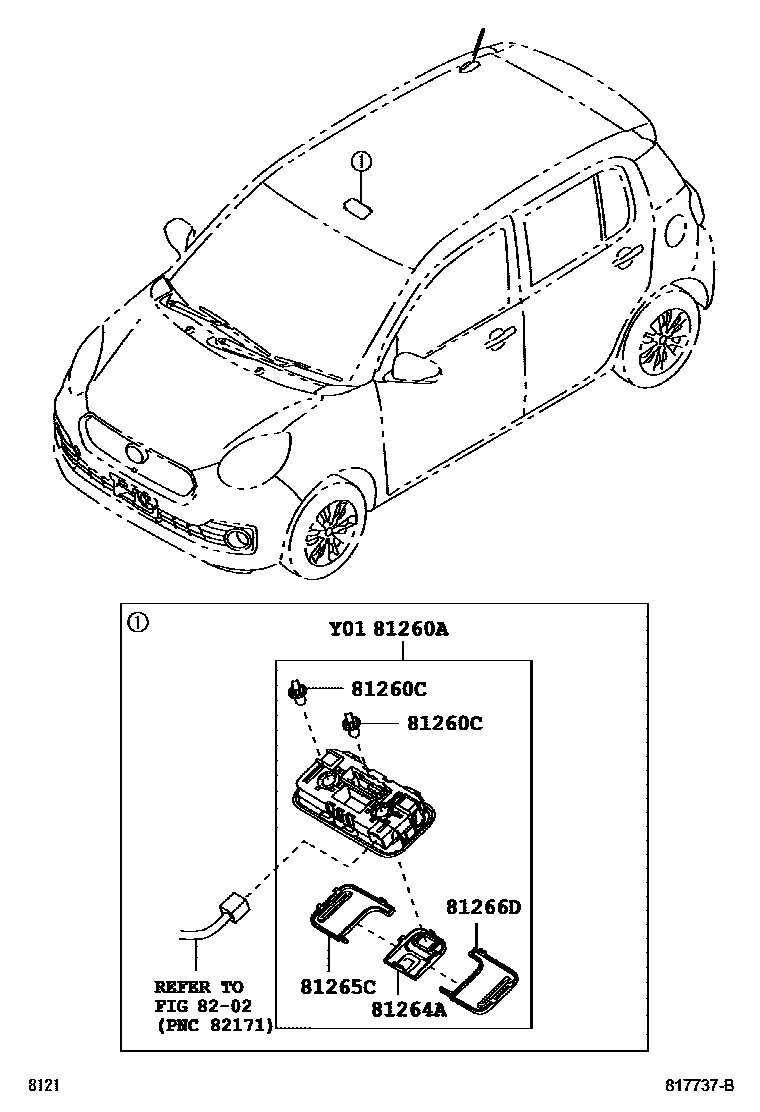

INTERIOR LAMP

81260ALAMP ASSY, MAP

main81260-B2030-B0iM700,710..MODA; M700,710..X201604-202309

LT.GRAY,TRIM1#; LT.GRAY,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-11013×2iM700,710201604-202309

81264ACOVER, MAP LAMP

main81261-B2010iM700,710201604-201711

main81261-B2011-B0iM700,710..MODA; M700,710..X201712-202309

LT.GRAY,TRIM1#; LT.GRAY,TRIM4#

81265CLENS, MAP LAMP, NO.1

main81265-B2030iM700,710201604-202309

81266DLENS, MAP LAMP, NO.2

main81266-B2010iM700,710201604-202309

8202WIRING & CLAMP

→ Go to FIG 82-02

6 parts on this diagram · 1 diagram in section
