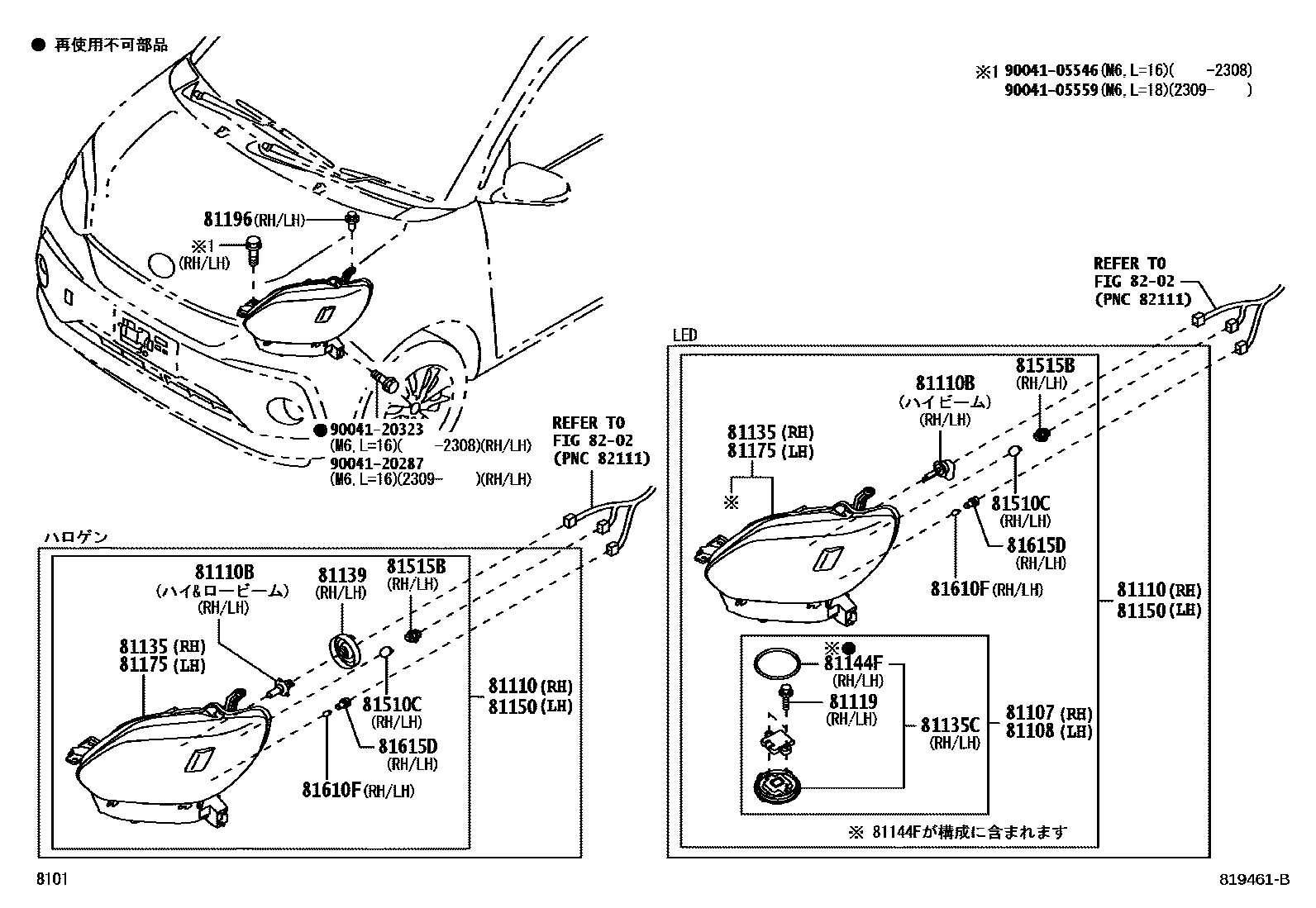

HEADLAMP

0001 1 0002 1

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main85967-B2090iM700,710..MODA201604-202309

main81107-B2090iM700,710..X201604-202104

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main85967-B2090iM700,710..MODA201604-202309

main81107-B2090iM700,710..X202104-202309

81110HEADLAMP ASSY, RH

main81110-B1400iM700,710..X201604-202309

main81110-B1420iM700,710..MODA201604-202309

main81110-B1410iM700,710..X201604-202104

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51088×2iM700,710..X201604-202309

main90049-51155×2iM700,710..X201604-202104

81119SCREW, HEADLAMP

main93540-54012×2iM700,710..X201604-202104

81135UNIT ASSY, HEADLAMP, RH

main81130-B1250iM700,710..X201604-202309

main81130-B1260iM700,710..MODA201604-202309

main81145-B1040iM700,710..X201604-202104

81135CCOVER, HEADLAMP BACK, NO.1

main81135-B1010×2iM700,710..MODA201604-202309

main81135-B2030×2iM700,710..X202104-202309

81139COVER, HEADLAMP SOCKET

main00000-00000supersedes 81139-B2010iM700,710..X201604

81144FO-RING, HEADLAMP COVER

main9004C-30005×2iM700,710..X202104-202309

81150HEADLAMP ASSY, LH

main81150-B1400iM700,710..X201604-202309

main81150-B1420iM700,710..MODA201604-202309

main81150-B1410iM700,710..X201604-202104

81175UNIT ASSY, HEADLAMP, LH

main81170-B1250iM700,710..X201604-202309

main81170-B1260iM700,710..MODA201604-202309

main81185-B1040iM700,710..X201604-202104

81196RETAINER, HEADLAMP

main90044-68320×2iM700,710201604-201907

main90044-68378×2iM700,710201908-202309

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90049-51179×2iM700,710201604-202309

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81945-B1010×2iM700,710201604-202309

81610FBULB(FOR CLEARANCE LAMP)

main90981-11013×2iM700,710..X201604-202309

81615DSOCKET, CLEARANCE LAMP

main81128-B2090×2iM700,710..X201604-202309

8202WIRING & CLAMP

→ Go to FIG 82-02

9004105546

main90041-05546

9004105559

main90041-05559

9004120287

main90041-20287

9004120323

main90041-20323

21 parts on this diagram · 2 diagrams in section
