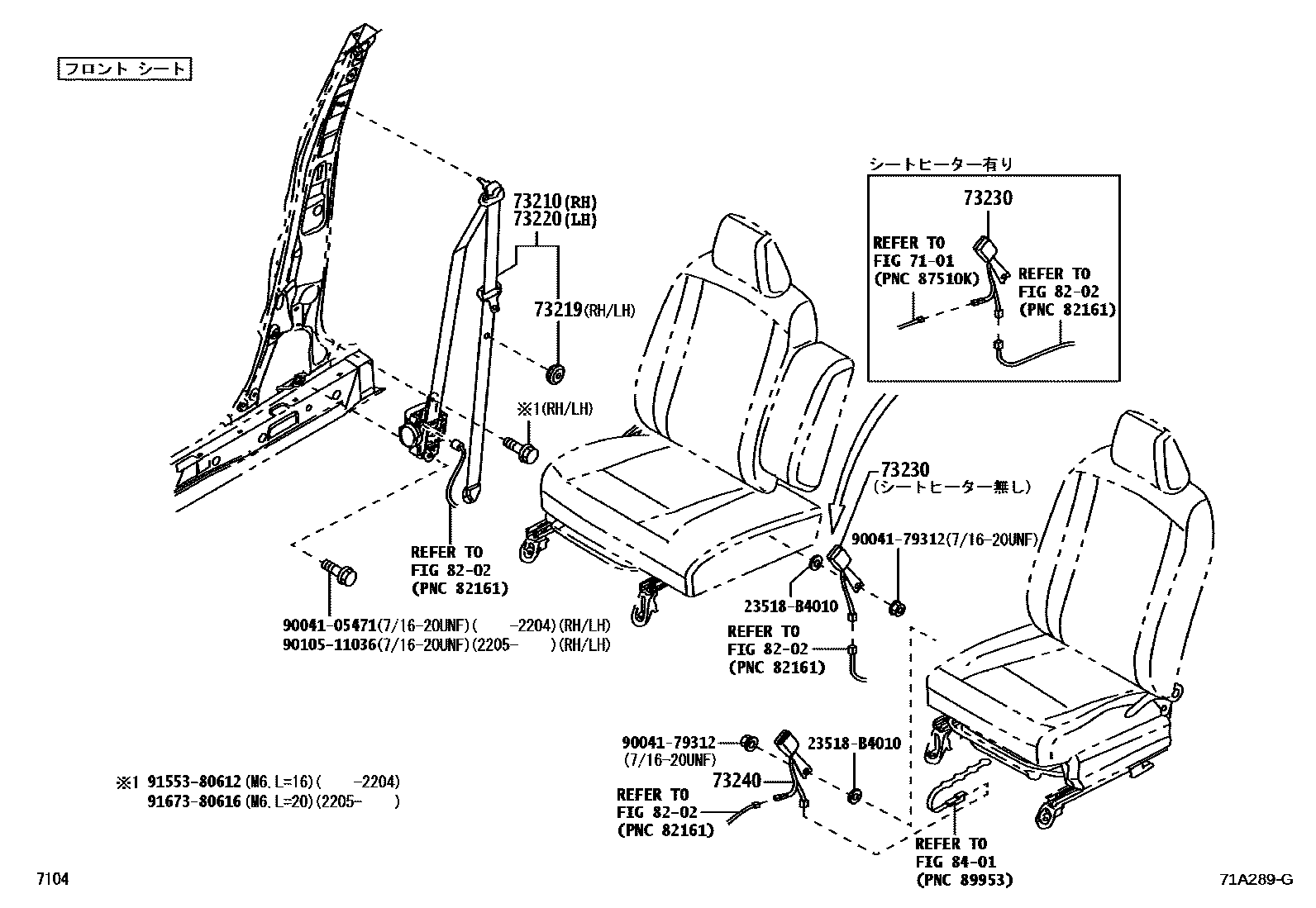

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-B1160-B1iM700,710..MODA; M700,710..X201604-202309

-,TRIM1#; -,TRIM4#

73219STOPPER, TONGUE PLATE

main73690-87401iM700,710201604-202309

main73690-B1010iM700,710201604-202309

main73690-B1020iM700,710201604-202309

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-B1170-B1iM700,710..MODA; M700,710..X201604-202309

-,TRIM1#; -,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-B1250-B0supersedes 73230-B1260-B0iM700,710..MODA; M700,710..X201604-202309

main73230-B1270-B0iM700,710..MODA202004-202309

main73230-B1300-B0supersedes 73230-B1260-B0iM700,710..X201604-202309

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-B1310-B0iM700,710..MODA; M700,710..X201604-202309

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

23518B4010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-B4010

9004105471

main90041-05471

9004179312

main90041-79312

9010511036

main90105-11036

9155380612

main91553-80612

9167380616

main91673-80616

14 parts on this diagram · 2 diagrams in section
