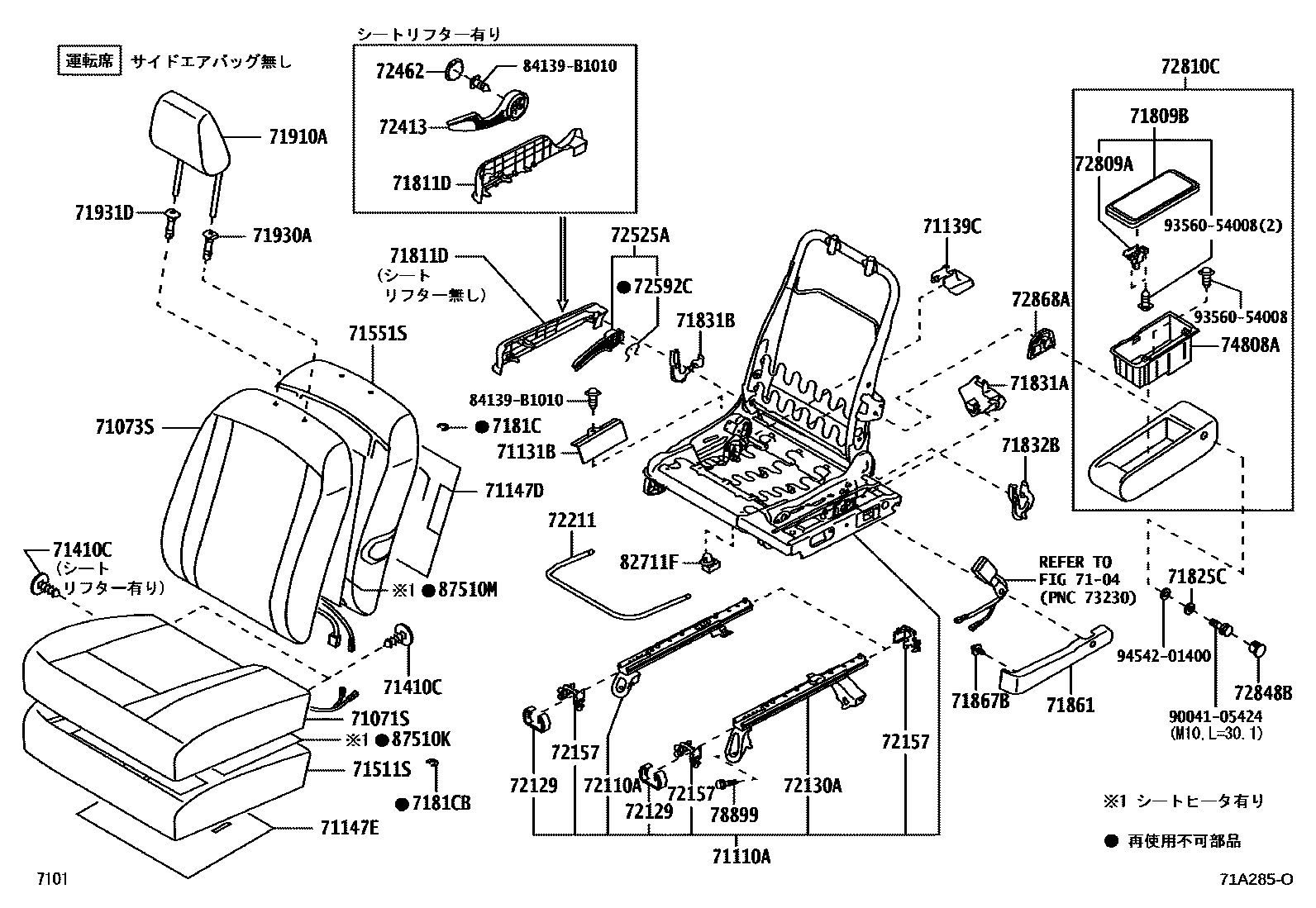

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1������(�������) 0006 1 0007 1 0008 1�������(�������)

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-B1500-B3supersedes 71071-B1340-B3iM700,710..X201604-201810

main71071-B1570-B0supersedes 71071-B1340-B3iM700,710..X201604-201810

main71071-B1580-B0supersedes 71071-B1510-B1iM700,710..MODA201604-201810

main71071-B1590-B0supersedes 71071-B1340-B3iM700,710..X201604-201810

main71071-B1600-B0supersedes 71071-B1690-B1iM700,710..MODA201810-202309

main71071-B1650-B1supersedes 71071-B1730-B1iM700,710..X201810-202309

main71071-B1670-B1supersedes 71071-B1730-B1iM700,710..X201810-202309

main71071-B1710-B1supersedes 71071-B1690-B1iM700,710..MODA201810-202309

main71071-B1750-B1supersedes 71071-B1730-B1iM700,710..X201810-202309

main71071-B1810-B0supersedes 71071-B1690-B1iM700,710..MODA201810-202309

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-B1C40-B3supersedes 71073-B1C30-B3iM700,710..X201604-201810

main71073-B1C60-B2supersedes 71073-B1C50-B2iM700,710..MODA201604-201810

main71073-B1D60-B0supersedes 71073-B1E50-B1iM700,710..MODA201810-202309

main71073-B1E20-B1supersedes 71073-B1E90-B1iM700,710..X201810-202309

main71073-B1E60-B1supersedes 71073-B1E50-B1iM700,710..MODA201810-202309

main71073-B1F70-B0supersedes 71073-B1E50-B1iM700,710..MODA201810-202309

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-B1110supersedes 71110-B1090iM700,710..MODA; M700,710..X201604-201910

main71110-B1111iM700,710..MODA; M700,710..X201911-202309

71131BPLATE, FRONT SEAT CUSHION, NO.1

main71127-B1010×2iM700,710201703-202309

main71127-BZ010×2iM700,710201604-201702

71139CCOVER, FRONT SEAT LEG, RH

main71139-B1050-B0iM700,710..MODA; M700,710..X201604-201610

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main71139-B1050-C0iM700,710..MODA; M700,710..X201610-202309

BLACK,TRIM1#; BLACK,TRIM4#

71147DSILENCER, SEAT SPRING, RH(FOR SEATBACK)

main71147-B2100iM700,710201604-202309

71147ESILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

main71147-B1140iM700,710201604-202309

71410CCLIP(FOR FRONT SEAT CUSHION)

main90044-68185-B1×5iM700,710..MODA; M700,710..X201604-202309

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-B1230iM700,710201604-202309

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-B1340iM700,710201604-202309

main71505-B1350iM700,710..X201604-201810

71809BCOVER SUB-ASSY, FRONT SEAT ARMREST HOLDER

main71809-B1150-B0iM700,710..X201604-201810

LIGHT GRAY,TRIM4#

main71809-B1160-C0iM700,710..MODA201604-201610

BLACK,TRIM1#

main71809-B1160-C1iM700,710..MODA201610-202309

BLACK,TRIM1#

main71809-B1210-B1iM700,710..X201810-202309

LIGHT GRAY,TRIM4#

main71809-B2510-C1iM700,710..MODA201810-202309

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-B1100-B0iM700,710..MODA201604-201610

DK.GRAY,TRIM1#

main71811-B1100-C0iM700,710..MODA201610-202309

BLACK,TRIM1#

main71811-B1100-E0iM700,710..X201810-202309

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main71812-87201×3iM700,710201604-202309

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main71812-87201×9iM700,710201604-202309

71825CPLATE

main72815-B1010iM700,710201604-202309

71831ACOVER, FRONT SEAT HINGE

main71831-B1070-B0iM700,710..MODA; M700,710..X201604-201610

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main71831-B1070-C0iM700,710..MODA; M700,710..X201610-202309

BLACK,TRIM1#; BLACK,TRIM4#

71831BCOVER, FRONT SEAT HINGE, RH

main71831-B1080-B0iM700,710..MODA; M700,710..X201604-201610

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main71831-B1080-C0iM700,710..MODA; M700,710..X201610-202309

BLACK,TRIM1#; BLACK,TRIM4#

71832BCOVER, FRONT SEAT HINGE, LH

main71832-B1090-B0iM700,710..MODA; M700,710..X201604-201610

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main71832-B1090-C0iM700,710..MODA; M700,710..X201610-202309

BLACK,TRIM1#; BLACK,TRIM4#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-B1060-B0iM700,710..MODA201604-201610

DK.GRAY,TRIM1#

main71861-B1060-C0iM700,710..MODA201610-202309

BLACK,TRIM1#

main71861-B1060-E0iM700,710..X201810-202309

71867BCLIP(FOR FRONT SEAT CUSHION INNER SHIELD)

main90044-68061-B1×2iM700,710201604-201707

DK.GRAY

main90044-68061-C0×2iM700,710201707-202309

BLACK

71910AHEADREST ASSY, FRONT SEAT

main71910-B1370-B0×2iM700,710..X201604-201810

LIGHT GRAY,TRIM4#

main71910-B1380-C0×2iM700,710..MODA201604-201810

BLACK,TRIM1#

main71910-B1430-B1×2iM700,710..X201810-202309

LIGHT GRAY,TRIM4#

main71910-B1410-B0×2supersedes 71910-B1380-C1iM700,710..MODA201810-202309

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-B2010-B0×2iM700,710..MODA201604-201610

main71930-B2010-C1×2iM700,710..MODA201810-202309

main71930-B2010-E1×2iM700,710..MODA201810-202309

71931DSUPPORT, FRONT SEAT HEADREST, RH

main71931-B2010-B0iM700,710..MODA201604-201610

DK.GRAY,TRIM1#

main71931-B2010-C1iM700,710..MODA201610-201810

BLACK,TRIM1#

main71931-B2010-E1iM700,710..X201604-202309

LINEN BEIGE,TRIM4#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-B1010iM700,710201604-202309

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-B2033×4iM700,710201604-202309

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-B1010iM700,710201604-202309

72157COVER, SEAT TRACK BRACKET, INNER

main72157-B2031×4iM700,710201604-202309

main72157-B2030×4iM700,710..X201810-201911

72211HANDLE, SEAT TRACK ADJUSTING

main72211-B2090iM700,710201604-202309

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-B2110-B1iM700,710..MODA201604-201701

DK.GRAY,TRIM1#

main72413-B2110-C0iM700,710..MODA201701-202309

BLACK,TRIM1#

main72413-B2110-E1iM700,710..X201810-202309

72462COVER, VERTICAL ADJUSTER RH

main72462-B2080-B0iM700,710..MODA201604-201701

DK.GRAY,TRIM1#

main72462-B2080-C0iM700,710..MODA201701-202309

BLACK,TRIM1#

main72462-B2080-E1iM700,710..X201604-201810

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-B1020-B0iM700,710..MODA201604-201610

DK.GRAY,TRIM1#

main72525-B1020-C0iM700,710..MODA201610-202309

BLACK,TRIM1#

main72525-B1020-E0iM700,710..X201604-202309

LINEN BEIGE,TRIM4#

72592CRING, SHAFT SNAP

main90520-01002×2iM700,710201604-202309

72809ALOCK SUB-ASSY, CENTER ARMREST

main72809-B2010-B3iM700,710..MODA201604-201610

DK.GRAY,TRIM1#

main72809-B2010-C1iM700,710..MODA201610-202309

BLACK,TRIM1#

main72809-B2010-E4iM700,710..X201604-202309

LINEN BEIGE,TRIM4#

72810CARMREST ASSY, FRONT SEAT, CENTER

main72810-B1190-B2iM700,710..X201604-201810

-,TRIM4#

main72810-B1230-C1iM700,710..MODA201604-201610

-,TRIM1#

main72810-B1230-C2iM700,710..MODA201610-201810

BLACK,TRIM1#

main72810-B1280-B1iM700,710..X201810-202309

LIGHT GRAY,TRIM4#

main72810-B1260-C0supersedes 72810-B1230-C3iM700,710..MODA202004-202309

72848BCAP, SEAT ARMREST, NO.1

main72848-B1020-B0iM700,710..MODA201604-201610

DK.GRAY,TRIM1#

main72848-B1020-C0iM700,710..MODA201610-202309

BLACK,TRIM1#

main72848-B1020-E0iM700,710..X201604-202309

LINEN BEIGE,TRIM4#

72868ACOVER, CENTER ARMREST HINGE

main72868-B2020iM700,710201604-202309

74808ABOX SUB-ASSY, SEAT TRASH

main74808-B2040-B1iM700,710..MODA201604-201610

DK.GRAY,TRIM1#

main74808-B2040-C0iM700,710..MODA201610-202309

BLACK,TRIM1#

main74808-B2040-E2iM700,710..X201604-202309

LINEN BEIGE,TRIM4#

78899BOLT, FRONT SEAT

main90041-05506×8iM700,710201611-202309

82711FCLAMP, WIRING HARNESS

main15549-B4010iM700,710201604-202309

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-B2110iM700,710..X201604-201810

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-B2110iM700,710..X201604-201810

84139B1010

main84139-B1010

9004105424

main90041-05424

9356054008

main93560-54008

9454201400

main94542-01400

46 parts on this diagram · 8 diagrams in section
