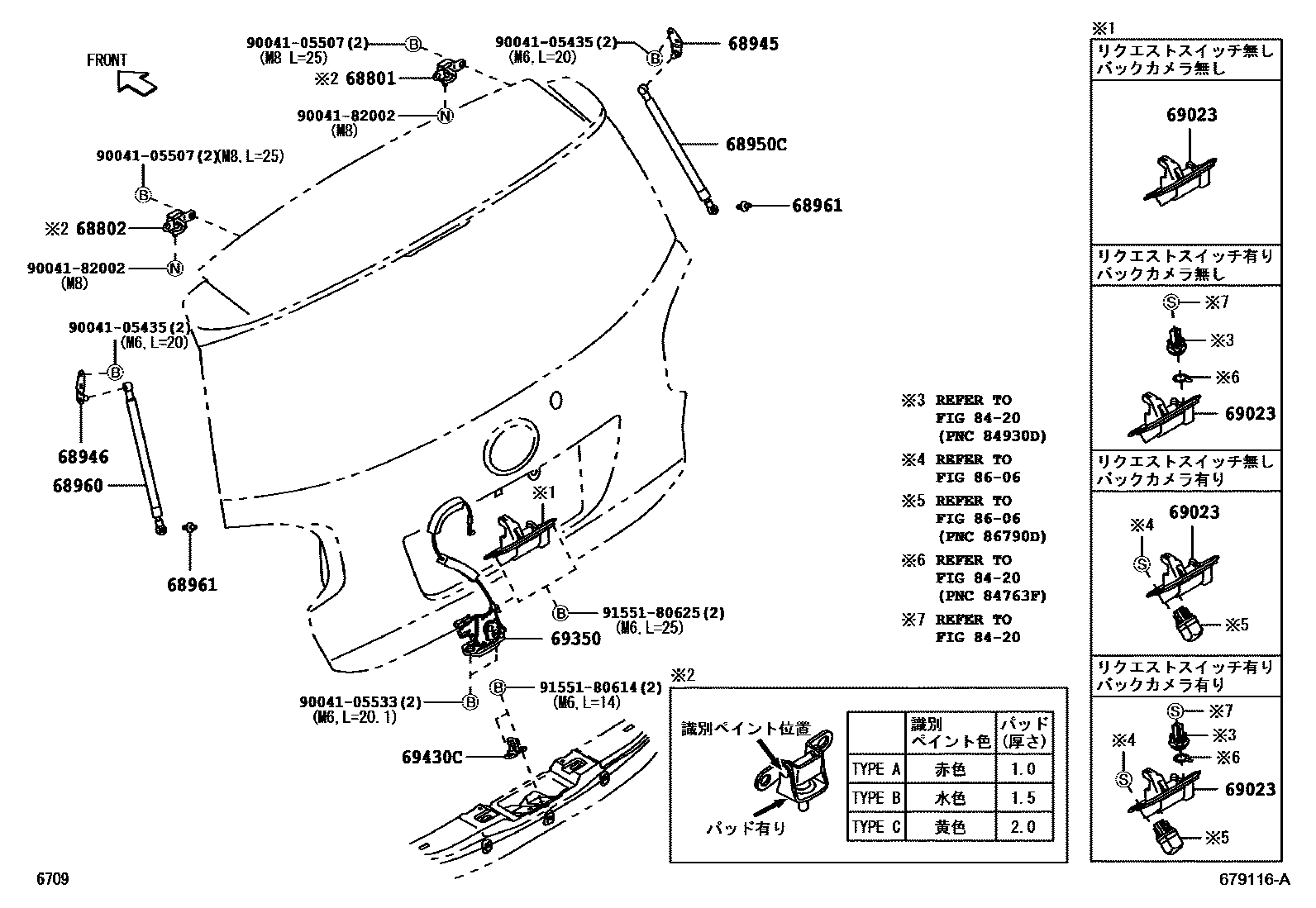

BACK DOOR LOCK & HANDLE

0001 1 0002 1

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-B1050iM700,710201610-202309

main68801-B1060iM700,710201610-202309

main68801-B1070iM700,710201610-202309

main68801-B2150iM700,710201604-201609

main68801-B2160iM700,710201604-201609

main68801-B2170iM700,710201604-201609

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68802-B1010iM700,710201610-202309

main68802-B1020iM700,710201610-202309

main68802-B1030iM700,710201610-202309

main68802-B2050iM700,710201604-201609

main68802-B2060iM700,710201604-201609

main68802-B2070iM700,710201604-201609

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-B1010iM700,710201604-202309

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-B1010iM700,710201604-202309

68950CSTAY ASSY, BACK DOOR, RH

main68950-B1170iM710201604-202309

main68950-B1180iM700201604-202309

68960STAY ASSY, BACK DOOR, LH

main68960-B1180iM710201604-202309

main68960-B1190iM700201604-202309

68961BOLT, BACK DOOR STAY

main68961-B2040×2iM700,710201604-202309

69023HANDLE SUB-ASSY, BACK DOOR OUTSIDE

main69023-B1030supersedes 69090-B1050iM700,710..X201604-201810

main69023-B1040supersedes 69090-B1050iM700,710..X201604-201810

main69023-B1050supersedes 69090-B1050iM700,710..X201604-201810

69350LOCK ASSY, BACK DOOR

main69350-B1080iM700,710201604-202309

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B2070iM700,710201604-202309

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9004105435

main90041-05435

9004105507

main90041-05507

9004105533

main90041-05533

9004182002

main90041-82002

9155180614

main91551-80614

9155180625

main91551-80625

18 parts on this diagram · 2 diagrams in section
