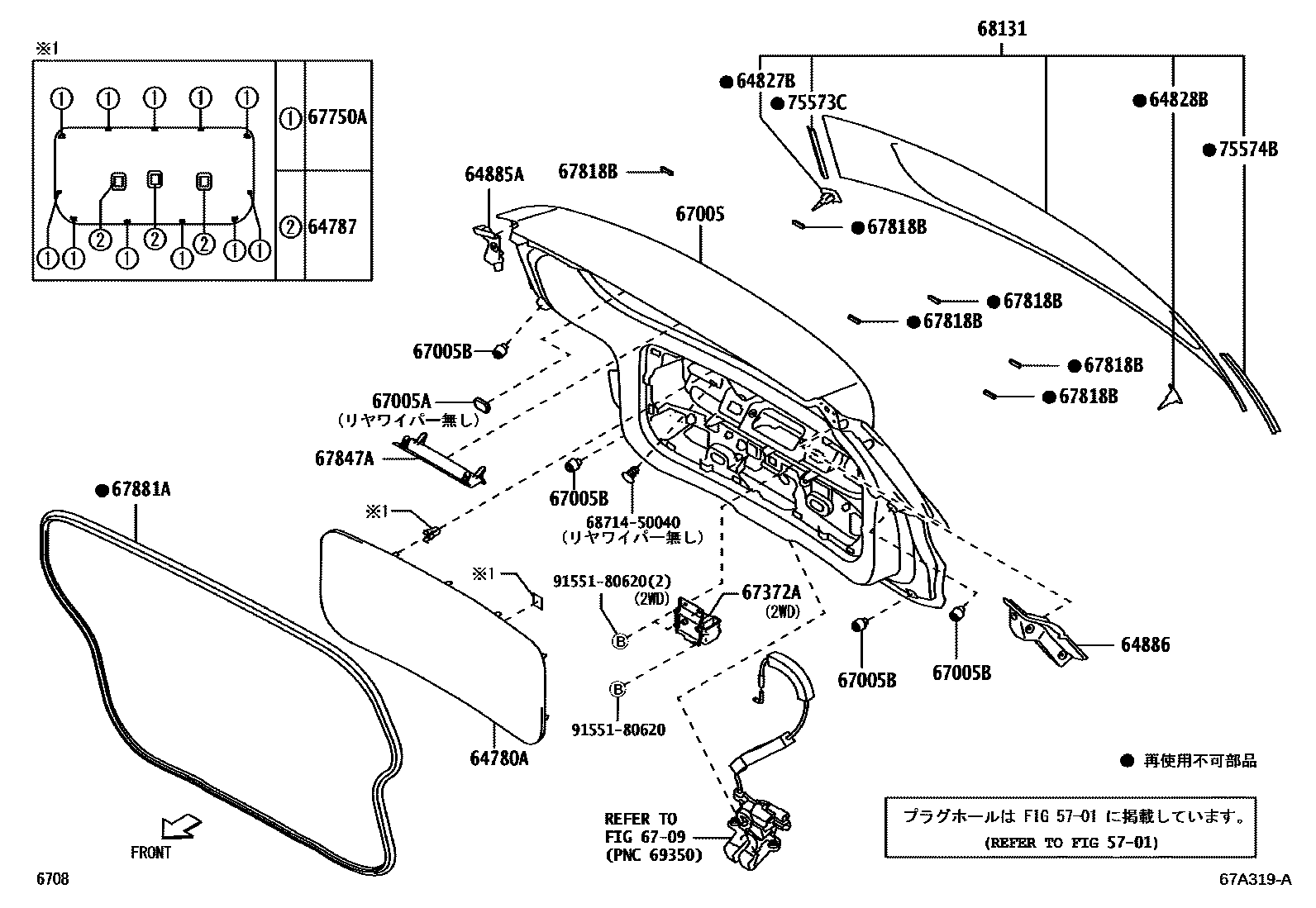

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

5701HOLE PLUG

→ Go to FIG 57-01

64780APANEL ASSY, BACK DOOR TRIM

main64781-B1010-B0iM700,710..MODA; M700,710..X201604-202309

LT.GRAY,TRIM1#; LT.GRAY,TRIM4#

64787PAD, BACK DOOR TRIM

main64787-B1020×3iM700,710201604-202309

64827BCLIP, BACK WINDOW GLASS, RH

main64827-B1030iM700,710201604-202309

64828BCLIP, BACK WINDOW GLASS, LH

main64828-B1030iM700,710201604-202309

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-B1010iM700,710201604-202309

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-B1010iM700,710201604-202309

67005PANEL SUB-ASSY, BACK DOOR

main67005-B1490-B0supersedes 67005-B1500-B0iM700,710..MODA; M700,710..X201604-201810

main67005-B1600-B0supersedes 67005-B1610-B0iM700,710..MODA; M700,710..X201810-202309

67005APLUG, HOLE(FOR BACK DOOR PANEL)

main90048-71321iM700,710..X201604-202309

67005BCUSHION(FOR BACK DOOR PANEL)

main90045-41273×4iM700,710201604-202309

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

67372AWEIGHT, BACK DOOR

main67049-B1020iM700201604-202309

67750ACLIP(FOR BACK DOOR TRIM)

main90467-05172×11iM700,710201604-202309

67818BSPACER, BACK WINDOW GLASS

main64818-B2010×6iM700,710201604-202309

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-B1010iM700,710201604-202309

67881AWEATHERSTRIP, BACK DOOR

main67881-B1050iM700,710201604-202309

68131GLASS, BACK DOOR

main68105-B1070supersedes 68105-B1100iM700,710..MODA201604-202309

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-B1050iM700,710201604-202309

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75573-B1050iM700,710201604-202309

6871450040

main68714-50040

9155180620

main91551-80620

21 parts on this diagram · 3 diagrams in section
