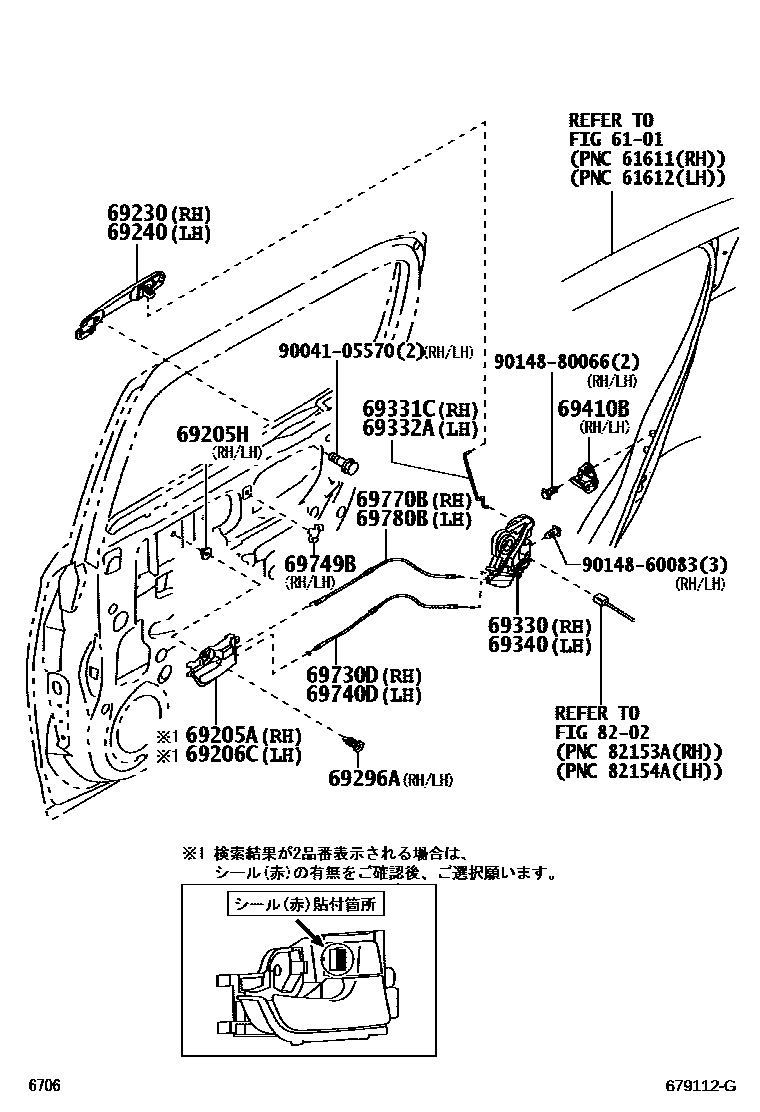

REAR DOOR LOCK & HANDLE
6101SIDE MEMBER
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205HGROMMET(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
BLACK M.M.,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W09 ,W24 ,X07 ,Y13
WHITE PEARL MC.CS,W24; WHITE PEARL MC.CS,W24 ,X99
SILVER ME.,B67 ,B86 ,G58 ,R59 ,R67 ,R72 ,R73 ,S28 ,T25 ,T33 ,W24 ,X07 ,X96 ,X99 ,XE2 ,XE3 ,XE4 ,XE5 ,XG2 ,XG7; SILVER ME.,B86 ,G58 ,R59 ,R67 ,S28 ,T25 ,W09 ,W24 ,X07; SILVER ME.,Y13
BLACK M.M.,X07
BROWN MC.CS,R59
MAGENTA M.M.,R72 ,XE2
JUICY PINK ME.,R73 ,XG7
COPPER SE.,T33 ,XG2
DARK GREEN MC.,G58 ,XE3
BLACK M.M.,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W09 ,W24 ,X07 ,Y13
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLACK M.M.,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W09 ,W24 ,X07 ,Y13
WHITE PEARL MC.CS,W24; WHITE PEARL MC.CS,W24 ,X99
SILVER ME.,B67 ,B86 ,G58 ,R59 ,R67 ,R72 ,R73 ,S28 ,T25 ,T33 ,W24 ,X07 ,X96 ,X99 ,XE2 ,XE3 ,XE4 ,XE5 ,XG2 ,XG7; SILVER ME.,B86 ,G58 ,R59 ,R67 ,S28 ,T25 ,W09 ,W24 ,X07; SILVER ME.,Y13
BLACK M.M.,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W09 ,W24 ,X07 ,Y13
BROWN MC.CS,R59
MAGENTA M.M.,R72 ,XE2
JUICY PINK ME.,R73 ,XG7
COPPER SE.,T33 ,XG2
DARK GREEN MC.,G58 ,XE3
BLACK M.M.,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W09 ,W24 ,X07 ,Y13
69296ASCREW, DOOR INSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69331CROD, REAR DOOR LOCK OPEN, RH
69332AROD, REAR DOOR LOCK OPEN, LH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
8202WIRING & CLAMP
9004105570
main90041-05570
9014860083
main90148-60083
9014880066
main90148-80066
21 parts on this diagram · 1 diagram in section
