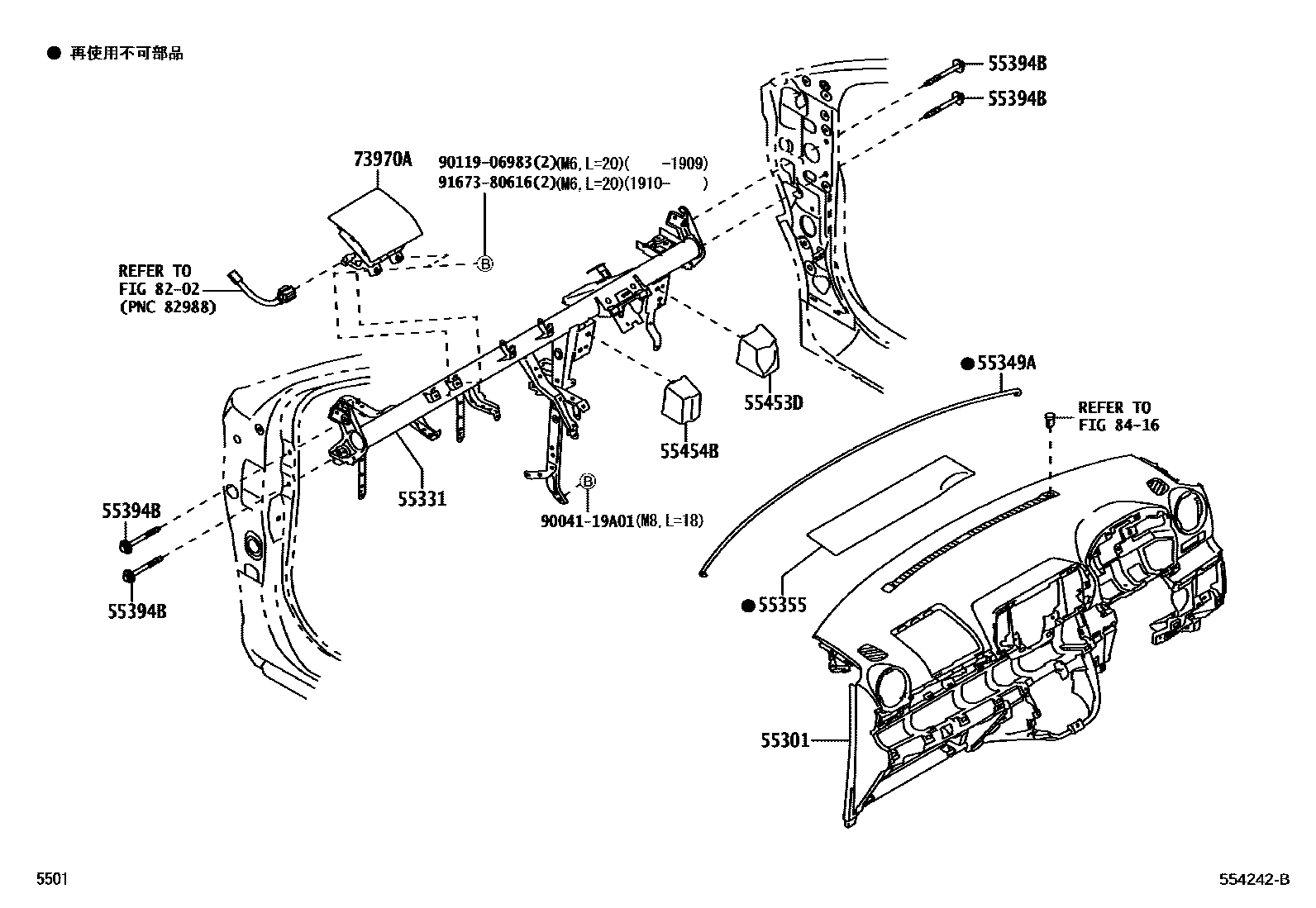

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B1120-B0iM700,710..MODA; M700,710..X201604-201704

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main55311-B1121-B0iM700,710..MODA; M700,710..X201705-202309

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B1130iM700,710201604-201810

main55305-B1150iM700,710201810-202309

55349ACUSHION, INSTRUMENT PANEL

main55349-B1020iM700,710201604-202309

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-B1070iM700,710201604-202309

55394BBOLT, INSTRUMENT PANEL

main90041-19A03×4iM700,710201604-202309

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-B1080iM700,710201604-202309

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-B1080iM700,710201604-202309

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B1100-B0iM700,710..MODA; M700,710..X201604-202309

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

8202WIRING & CLAMP

→ Go to FIG 82-02

8416AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

→ Go to FIG 84-16

9004119A01

main90041-19A01

9011906983

main90119-06983

9167380616

main91673-80616

13 parts on this diagram · 7 diagrams in section
