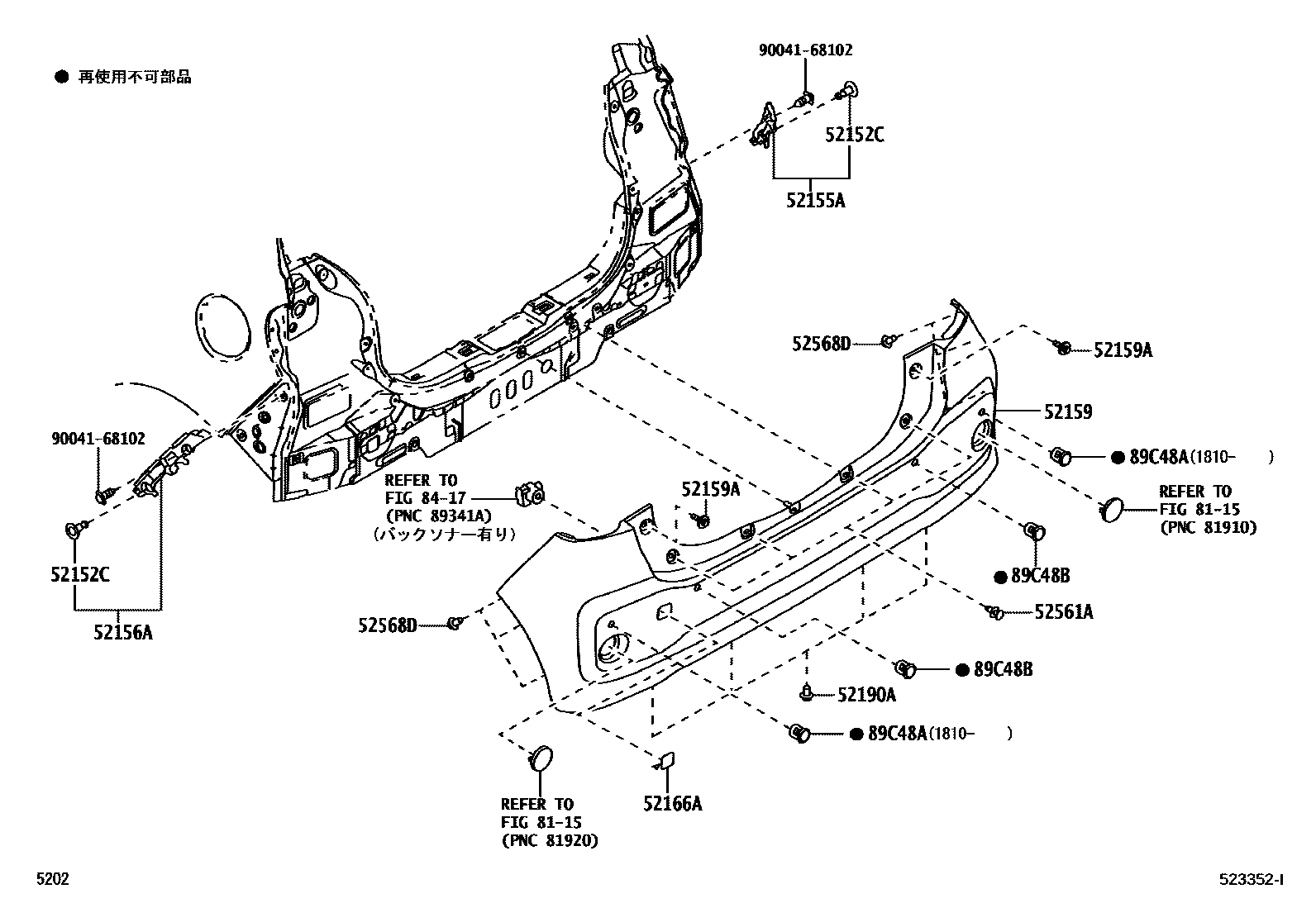

REAR BUMPER & BUMPER STAY
52152CCLIP, REAR BUMPER SIDE
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52159ABOLT(FOR REAR BUMPER COVER)
52166ACOVER, REAR BUMPER, UPR LH
WHITE,W09
WHITE PEARL MC.CS,W24
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
RED ME.,R67
MAGENTA M.M.,R72
BEIGE.ME.,T25
YELLOW SE.,Y13
DARK GREEN MC.,G58
LIGHT BLUE M.M.,B67
DARK BLUE SE.,B79
TURQUOISE M.M.,B86
WHITE PEARL MC.CS,W24
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
RED ME.,R67 ,X96
MAGENTA M.M.,R72 ,XE2
BEIGE.ME.,T25 ,XE5
YELLOW SE.,XE4 ,Y13
DARK GREEN MC.,G58 ,XE3
LIGHT BLUE M.M.,B67 ,XE6
DARK BLUE SE.,B79 ,X98
WHITE PEARL MC.CS,W24 ,X99
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
RED ME.,R67 ,X96
MAGENTA M.M.,R72 ,XE2
CORAL PINK ME.,R73 ,XG7
BEIGE.ME.,T25 ,XE5
COPPER SE.,T33 ,XG2
YELLOW SE.,XE4 ,Y13
DARK GREEN MC.,G58 ,XE3
LIGHT BLUE M.M.,B67
TURQUOISE M.M.,B86
52561ACLIP(FOR REAR BUMPER RETAINER)
52568DRETAINER, REAR BUMPER, UPPER NO.2
8115REFLEX REFLECTOR
8417CLEARANCE & BACK SONAR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
WHITE,W09
WHITE PEARL MC.CS,W24 ,X99
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
RED ME.,R67 ,X96
JUICY PINK ME.,R73 ,XG7
BEIGE.ME.,T25 ,XE5
COPPER SE.,T33 ,XG2
DARK GREEN MC.,G58 ,XE3
TURQUOISE M.M.,B86
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
WHITE,W09
WHITE PEARL MC.CS,W24 ,X99
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
RED ME.,R67
JUICY PINK ME.,R73 ,XG7
BEIGE.ME.,T25 ,XE5
COPPER SE.,T33 ,XG2
DARK GREEN MC.,G58 ,XE3
TURQUOISE M.M.,B86
9004168102
main90041-68102
14 parts on this diagram · 3 diagrams in section
