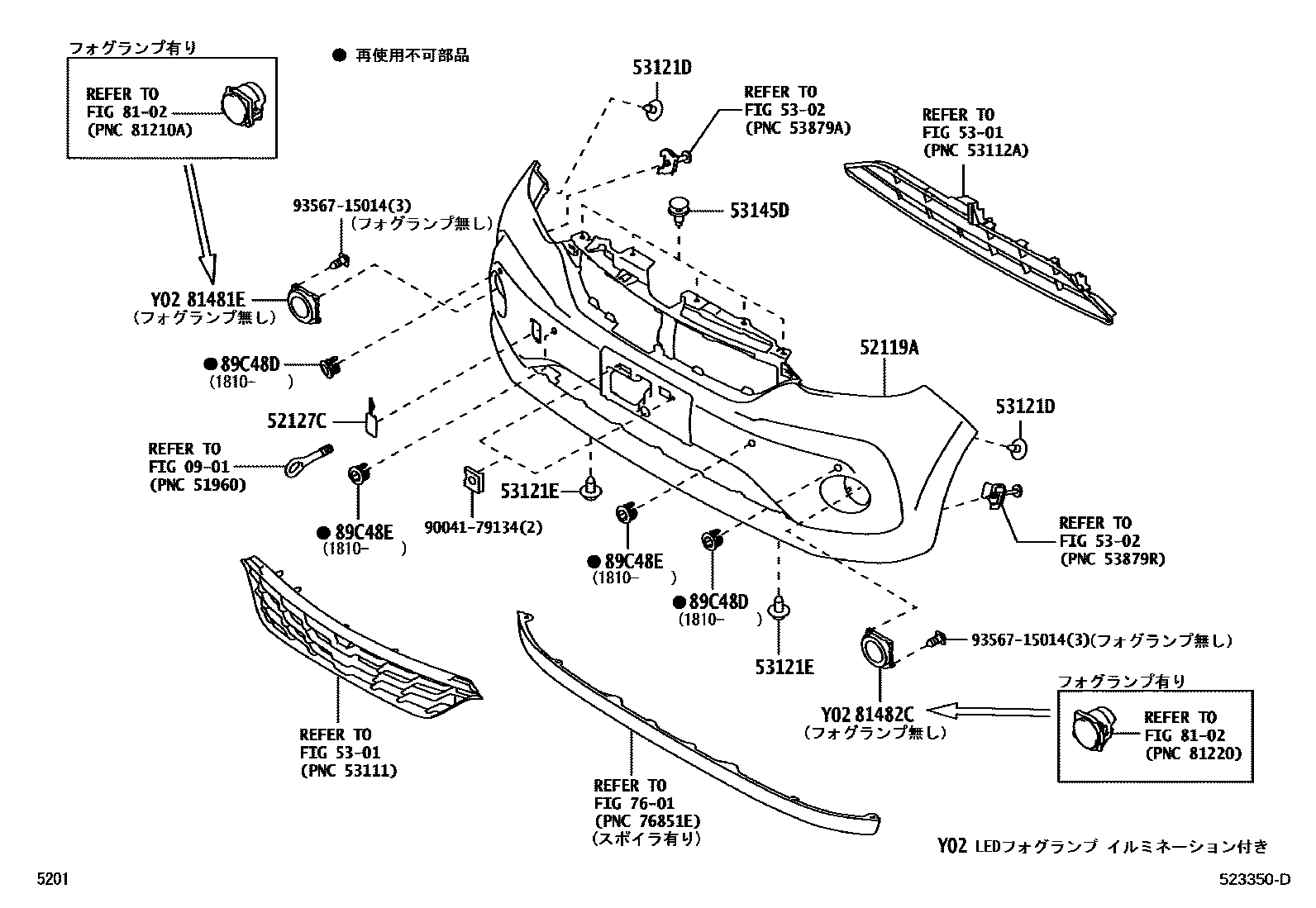

FRONT BUMPER & BUMPER STAY
0901STANDARD TOOL
52119ACOVER, FRONT BUMPER
52127CCOVER, FRONT BUMPER HOLE
WHITE,W09
WHITE PEARL MC.CS,W24
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
RED ME.,R67
MAGENTA M.M.,R72
BEIGE.ME.,T25
YELLOW SE.,Y13
DARK GREEN MC.,G58
LIGHT BLUE M.M.,B67
DARK BLUE SE.,B79
TURQUOISE M.M.,B86
WHITE PEARL MC.CS,W24
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
RED ME.,R67 ,X96
MAGENTA M.M.,R72 ,XE2
BEIGE.ME.,T25 ,XE5
YELLOW SE.,XE4 ,Y13
DARK GREEN MC.,G58 ,XE3
LIGHT BLUE M.M.,B67 ,XE6
DARK BLUE SE.,B79 ,X98
5301RADIATOR GRILLE
5302HOOD & FRONT FENDER
53121DCLIP(FOR FRONT BUMPER), NO.2
53121ECLIP(FOR FRONT BUMPER), NO.1
53145DCLIP, RADIATOR GRILLE
7601MUDGUARD & SPOILER
8102FOG LAMP
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
WHITE,W09
WHITE PEARL MC.CS,W24
WHITE PEARL MC.CS,W24 ,X99
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
RED ME.,R67 ,X96
RED ME.,R67
MAGENTA M.M.,R72 ,XE2
JUICY PINK ME.,R73 ,XG7
BEIGE.ME.,T25 ,XE5
BEIGE.ME.,T25
COPPER SE.,T33 ,XG2
YELLOW SE.,XE4 ,Y13
DARK GREEN MC.,G58 ,XE3
DARK GREEN MC.,G58
LIGHT BLUE M.M.,B67
TURQUOISE M.M.,B86
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
WHITE,W09
WHITE PEARL MC.CS,W24
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
RED ME.,R67
BEIGE.ME.,T25
DARK GREEN MC.,G58
TURQUOISE M.M.,B86
9004179134
main90041-79134
9356715014
main93567-15014
16 parts on this diagram · 3 diagrams in section
