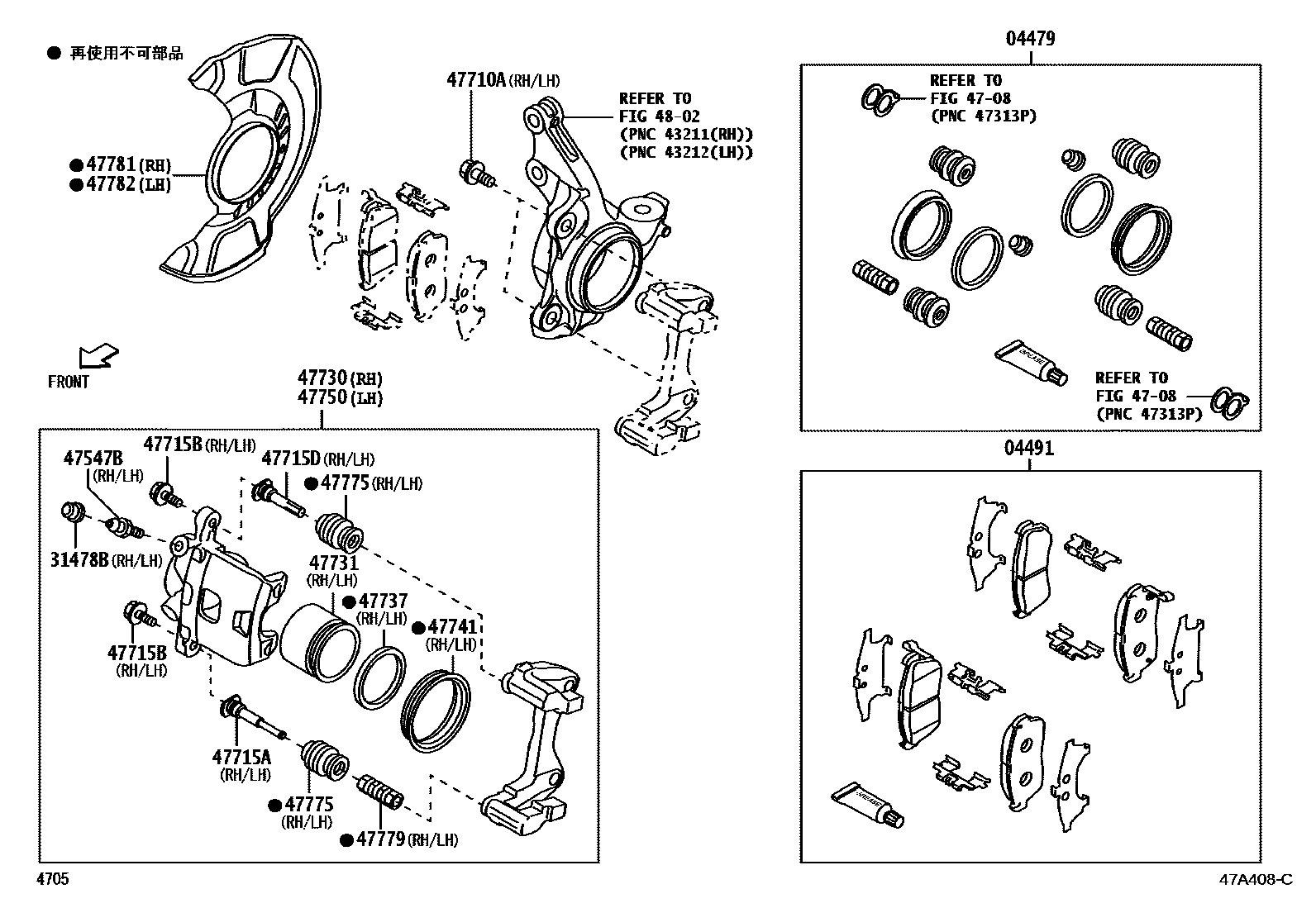

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1����������(���� ���) 0002 1����������(���� ���)

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-B2155iM700,710201604-201609

main04478-B2156iM700,710201609-202309

04491PAD KIT, DISC BRAKE, FRONT

main04491-B1150iM700,710201604-201901

main04491-B1180iM700,710201901-202309

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-97401×2iM700,710201604-202309

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-B1020×2iM700,710201604-202309

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05242×4iM700,710201604-202309

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-B2010×2iM700,710201604-202309

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-B1020×4iM700,710201604-202309

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-97401×2iM700,710201604-202309

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-B1012iM700,710201604-202309

47731PISTON, FRONT DISC BRAKE

main47731-97401×2iM700,710201604-202309

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-97401×2iM700,710201604-202309

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-97401×2iM700,710201604-202309

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-B1012iM700,710201604-202309

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-97401×4iM700,710201604-201608

main47775-B2040×4iM700,710201609-202309

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47769-B2020×2iM700,710201604-202104

main47769-B9030×2iM700,710202104-202309

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-B1070iM700,710201604-202309

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-B1070iM700,710201604-202309

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

19 parts on this diagram · 2 diagrams in section
