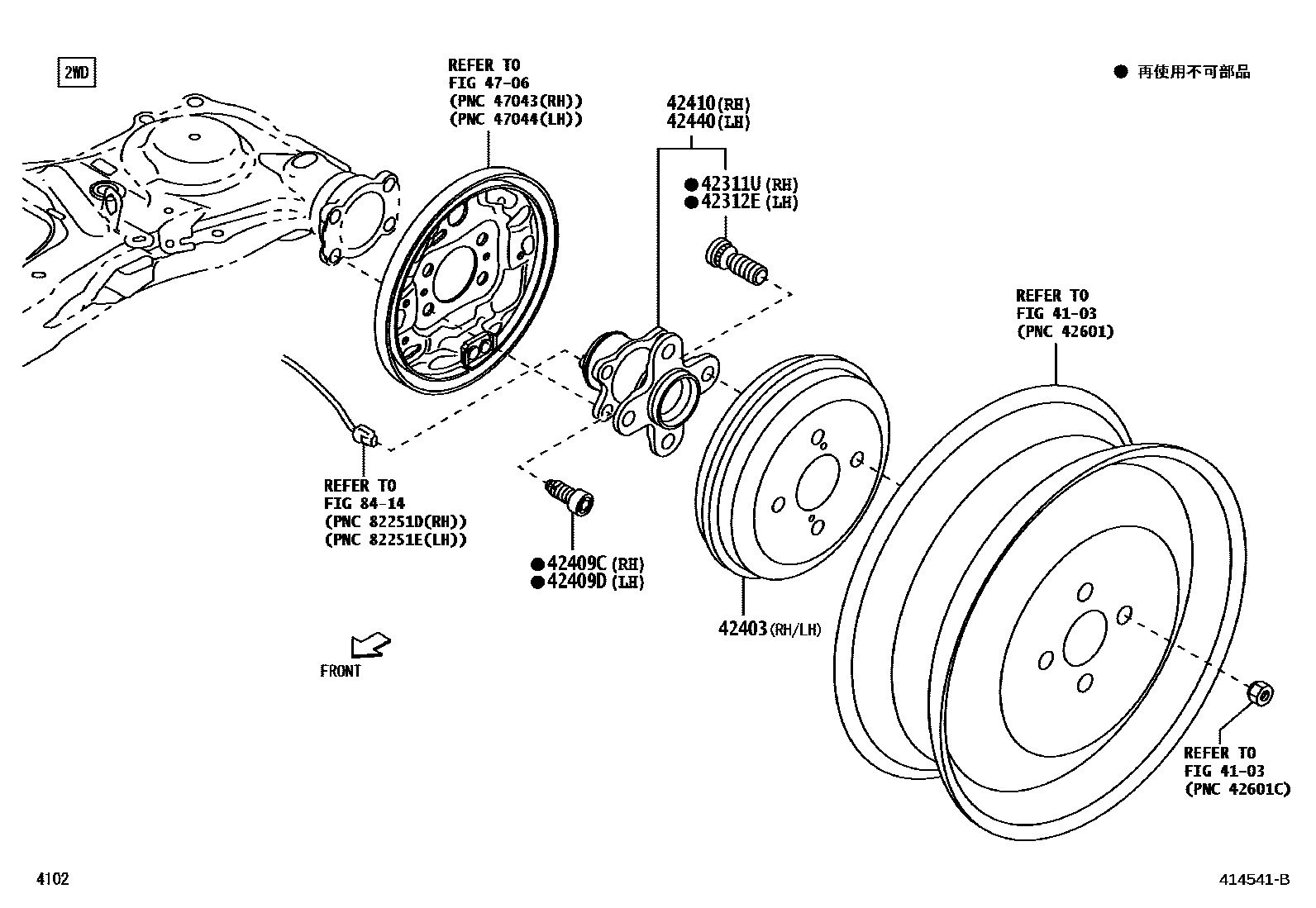

REAR AXLE SHAFT & HUB

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311UBOLT, HUB(FOR REAR AXLE RH)

main90049-12055×4iM710201604-202309

main90049-12062×4iM700201604-202309

42312SHAFT, REAR AXLE, LH

main42312-B1020iM710201604-202309

42312EBOLT, HUB(FOR REAR AXLE LH)

main90049-12055×4iM710201604-202309

main90049-12062×4iM700201604-202309

42403DRUM SUB-ASSY, REAR BRAKE

main42431-B1021×2iM700201604-202309

main42431-B2080×2iM710201604-202309

42409CBOLT (FOR REAR AXLE BEARING RH)

main90041-01711×4iM700201604-202309

42409DBOLT (FOR REAR AXLE BEARING LH)

main90041-01711×4iM700201604-202309

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-B1061iM700201604-201612

main42410-B1080iM700201701-202309

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-B1061iM700201604-201612

main42410-B1080iM700201701-202309

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

8414ABS & VSC

→ Go to FIG 84-14

11 parts on this diagram · 2 diagrams in section
