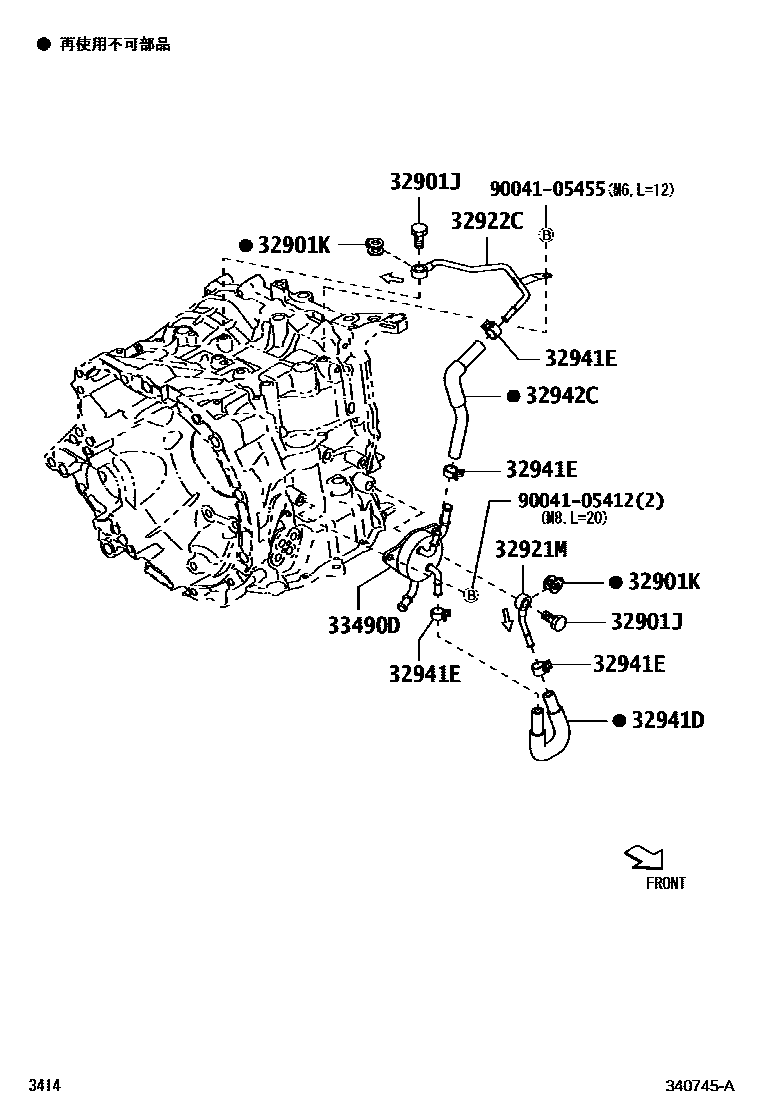

OIL COOLER & TUBE(CVT)

32901JBOLT, UNION(FOR OIL COOLER)

main90044-01081×2iM700,710201604-202309

32901KGASKET(FOR OIL COOLER UNION)

main90044-30329×2iM700,710201604-202309

32921MTUBE, OIL COOLER INLET, NO.1

main32904-B1060iM700,710201604-202309

32922CTUBE, OIL COOLER OUTLET, NO.1

main32905-B1070iM700,710201604-202309

32941DHOSE, OIL COOLER INLET

main32941-B1090iM700,710201604-202309

32941ECLIP(FOR OIL COOLER TUBE)

main90044-67590×4iM700,710201604-202309

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-B1090iM700,710201604-202309

33490DCOOLER ASSY, TRANSMISSION OIL

main33490-B1020iM700,710201604-202309

9004105412

main90041-05412

9004105455

main90041-05455

10 parts on this diagram · 1 diagram in section
