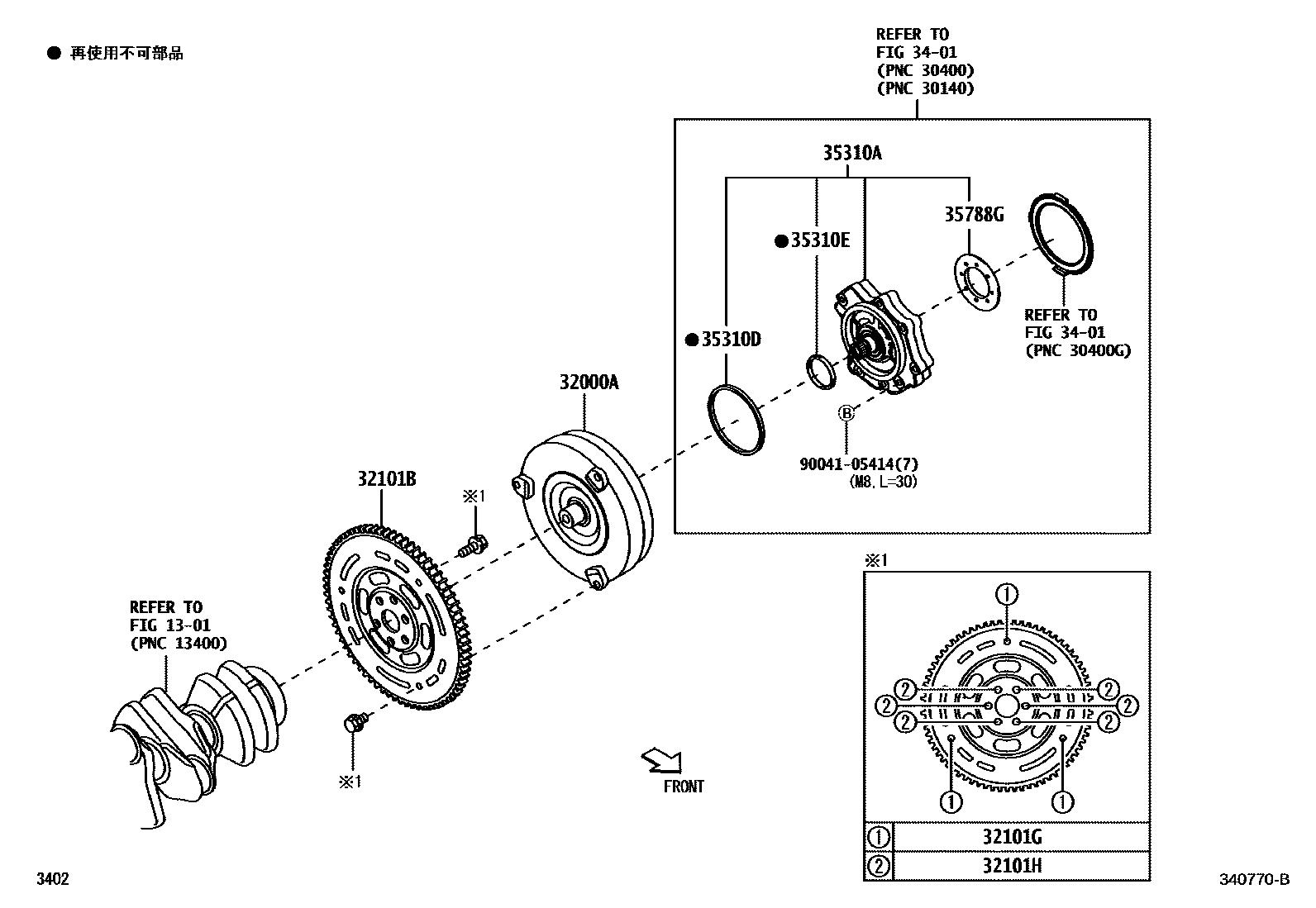

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

32000ACONVERTER ASSY, TORQUE

main32000-B1120iM700,710201604-202309

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B1051iM700,710201604-202309

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05280iM700,710201604-202309

main90041-05281×2iM700,710201604-202309

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037×6iM700,710201604-202309

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-B9071iM700,710201604-202309

35310DRING, O (FOR FRONT OIL PUMP)

main90043-01332iM700,710201604-202309

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main90043-11369iM700,710201604-202309

35788GRACE, THRUST BEARING

main35789-B2061iM700,710201604-202309

main35789-B2071iM700,710201604-202309

main35789-B2081iM700,710201604-202309

main35789-B2091iM700,710201604-202309

main35789-B2101iM700,710201604-202309

main35789-B2111iM700,710201604-202309

9004105414

main90041-05414

11 parts on this diagram · 1 diagram in section
