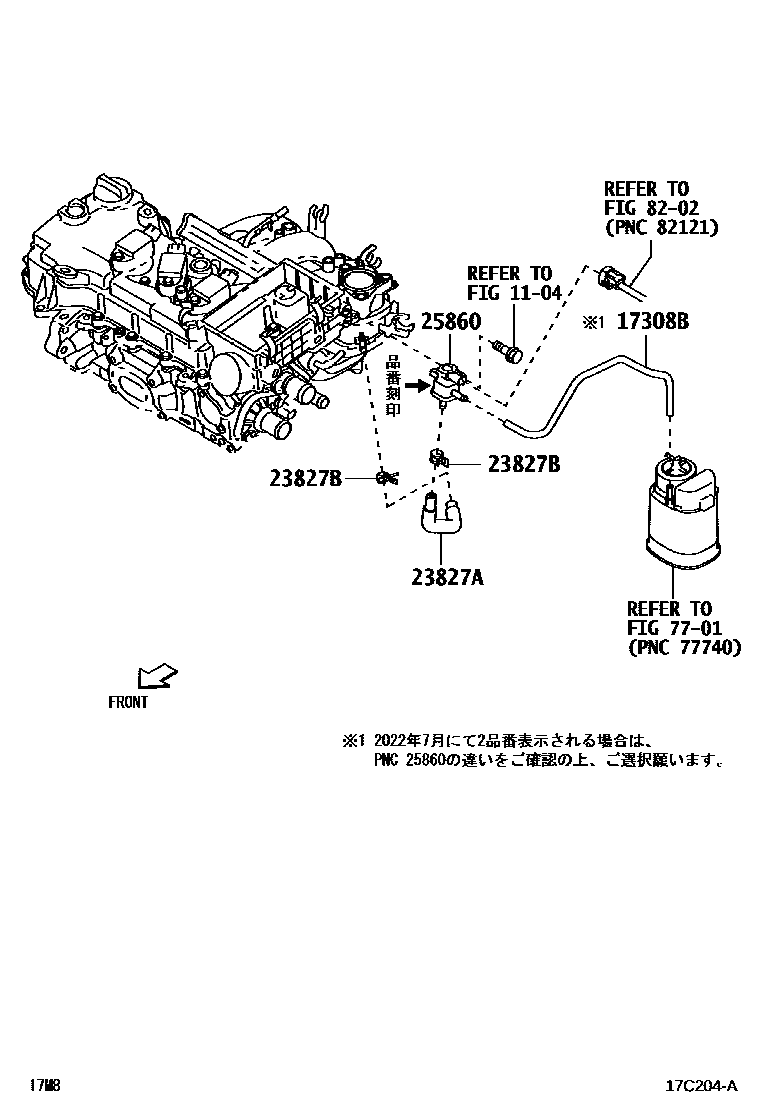

VACUUM PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

17308BHOSE SUB-ASSY, VACUUM

main77754-B1150i1KRFE..M700,710201604-202207

main77754-B1210i1KRFE..M700,710202207-202309

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-B1040i1KRFE..M700,710201604-202309

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96133-41301×2i1KRFE..M700,710201604-202309

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-B1050i1KRFE..M700,710202007-202207

main90910-12280i1KRFE..M700,710201604-202006

main90910-12282i1KRFE..M700,710202207-202309

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8202WIRING & CLAMP

→ Go to FIG 82-02

7 parts on this diagram · 1 diagram in section
