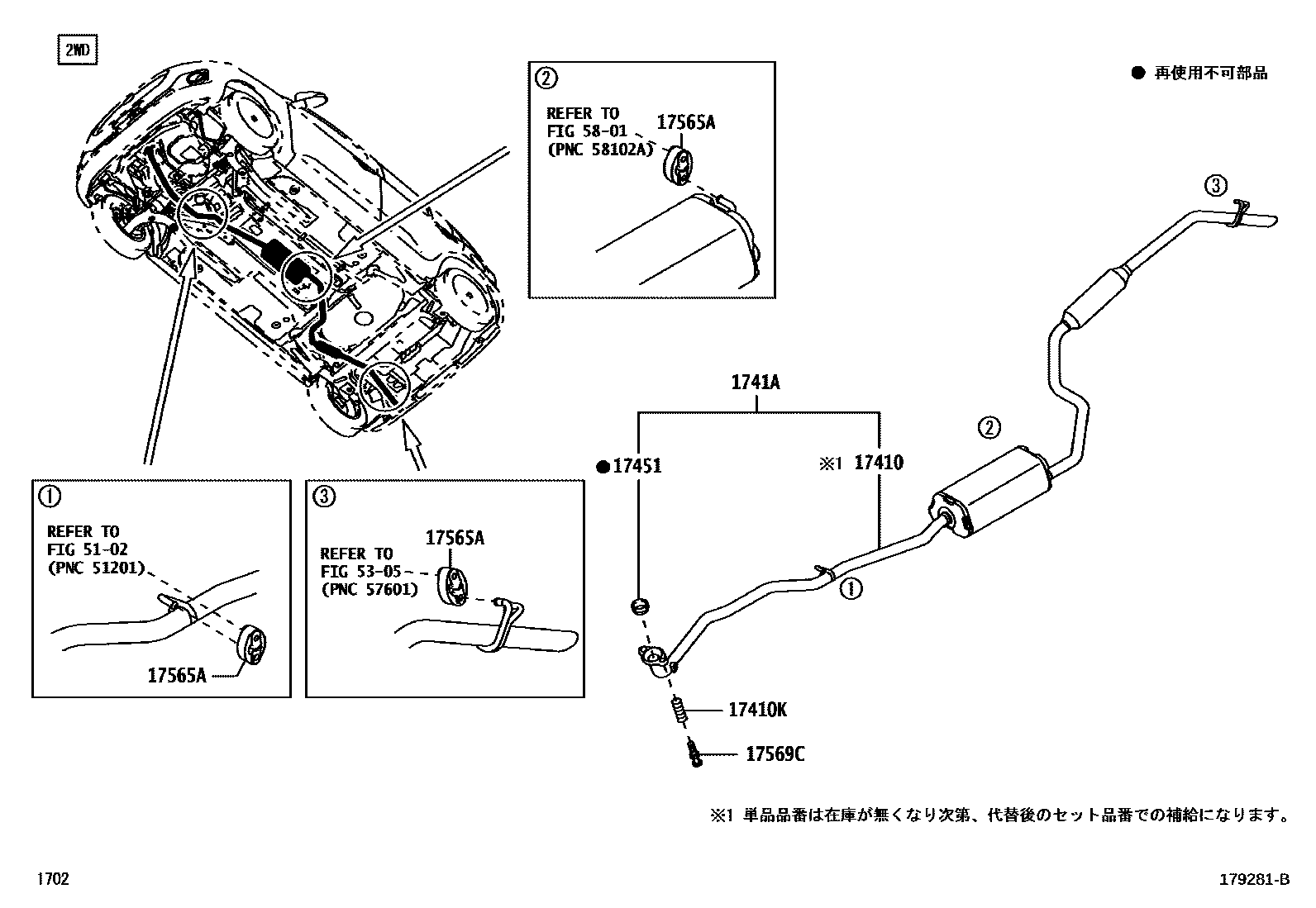

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-B1340i1KRFE..M700201604-201610

main17410-B1350i1KRFE..M710201604-202309

main17410-B1390i1KRFE..M700201610-201909

17410KSPRING, EXHAUST PIPE

main17152-97201×2i1KRFE..M700,710201604-202309

1741APIPE SET, EXHAUST

main17410-B9680i1KRFE..M710201604-202309

main17410-B9690i1KRFE..M700201604-202309

17451GASKET, EXHAUST PIPE

main17451-B1021i1KRFE..M700,710201604-202309

17565ASUPPORT, EXHAUST PIPE, NO.4

main17567-B2020×3i1KRFE..M700,710201604-202309

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97201×2i1KRFE..M700,710201604-202309

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9 parts on this diagram · 2 diagrams in section
