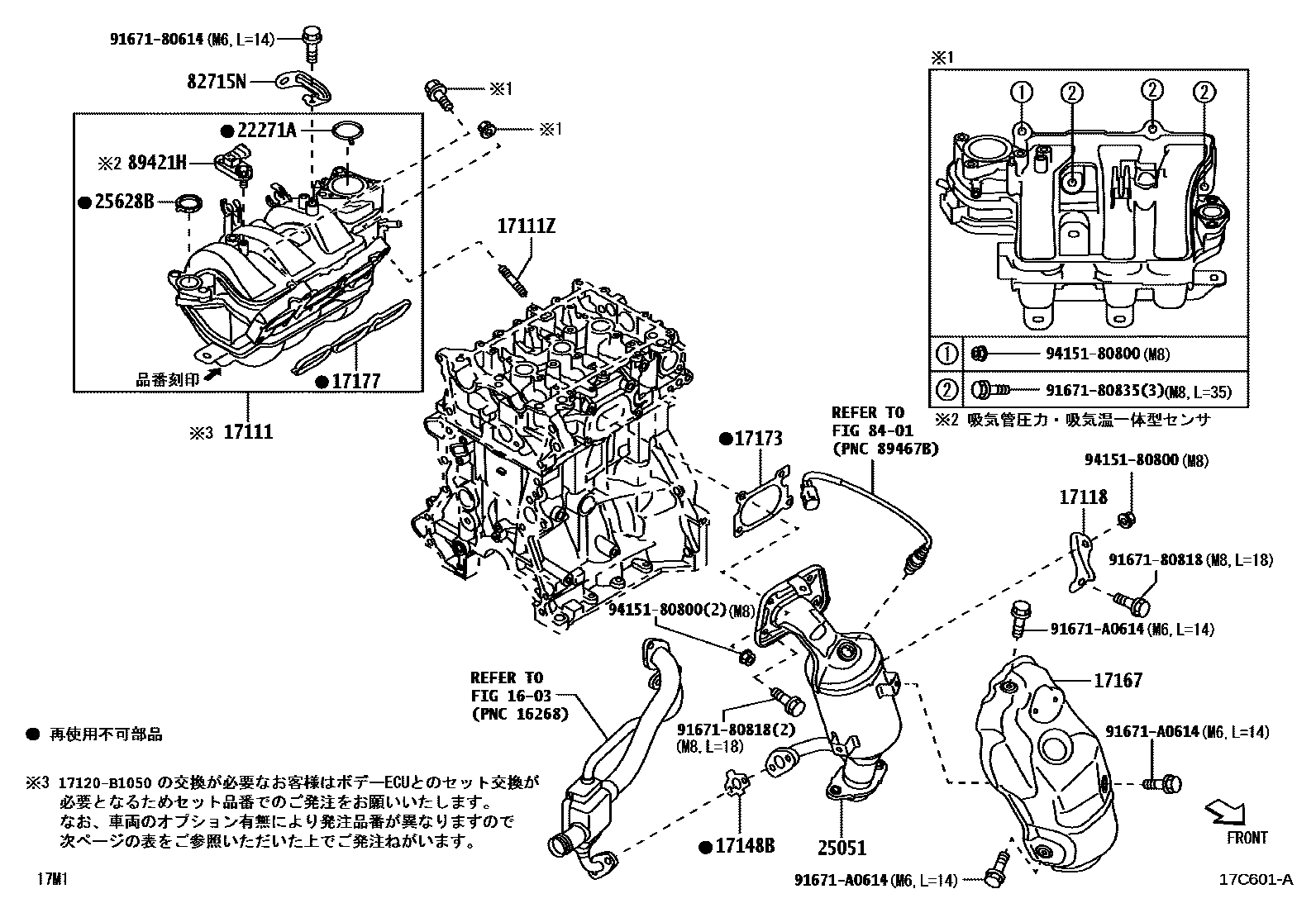

MANIFOLD

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

17111MANIFOLD, INTAKE

main17120-B1050i1KRFE..M700,710201604-201605

main17120-B1051i1KRFE..M700,710201605-202309

main17120-B9010i1KRFE..M700,710201604-201605

main17120-B9020i1KRFE..M700,710201604-201605

main17120-B9030i1KRFE..M700,710201604-201605

main17120-B9040i1KRFE..M700,710201604-201605

main17120-B9050i1KRFE..M700,710201604-201605

main17120-B9060i1KRFE..M700,710201604-201605

main17120-B9070i1KRFE..M700,710201604-201605

main17120-B9080i1KRFE..M700,710201604-201605

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main92122-80828i1KRFE..M700,710201604-202309

17118STAY, MANIFOLD

main17118-40040i1KRFE..M700,710201604-202309

17148BGASKET, EGR INLET

main25685-B1010i1KRFE..M700,710201604-202309

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-B1050i1KRFE..M700,710201604-202309

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-40040i1KRFE..M700,710201604-202309

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-B1030i1KRFE..M700,710201604-202309

22271AGASKET, THROTTLE BODY

main22271-40030i1KRFE..M700,710201604-202309

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-B1180i1KRFE..M700,710201604-202007

main25051-B1181i1KRFE..M700,710202007-202309

25628BGASKET, EGR INLET

main25628-B1040i1KRFE..M700,710201604-202309

82715NBRACKET, WIRING HARNESS CLAMP

main82715-B1510iM700,710201604-202309

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89421HSENSOR, VACUUM

main89421-52010iM700,710201604-202309

9167180614

main91671-80614

9167180818

main91671-80818

9167180835

main91671-80835

91671A0614

main91671-A0614

9415180800

main94151-80800

19 parts on this diagram · 2 diagrams in section
