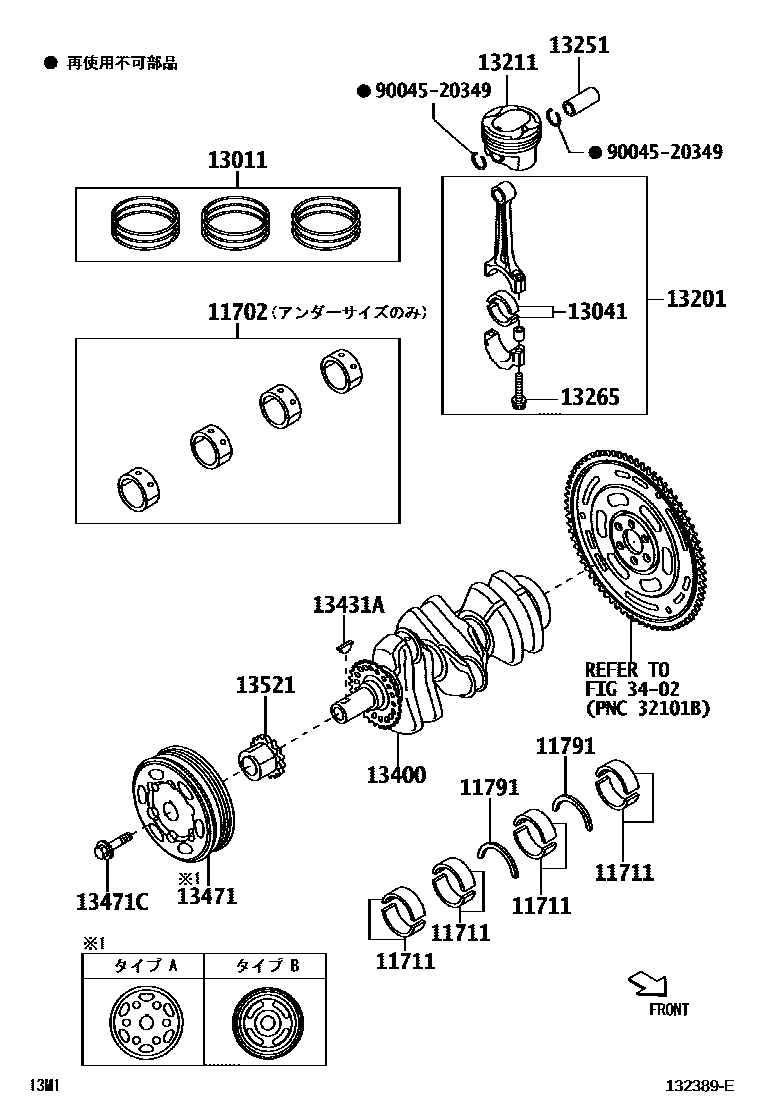

CRANKSHAFT & PISTON

11702BEARING SET, CRANKSHAFT

main11704-40040i1KRFE..M700,710201604-202309

11711BEARING, CRANKSHAFT

main11701-40040-02×4i1KRFE..M700,710201604-202309

main11701-40040-03×4i1KRFE..M700,710201604-202309

main11701-40040-04×4i1KRFE..M700,710201604-202309

main11701-40040-05×4i1KRFE..M700,710201604-202309

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-40040×2i1KRFE..M700,710201604-202309

main11792-40040×2i1KRFE..M700,710201604-202309

main11793-40040×2i1KRFE..M700,710201604-202309

13011RING SET, PISTON

main13011-40070i1KRFE..M700,710201604-202309

13041BEARING, CONNECTING ROD

main13041-40032-01×3i1KRFE..M700,710201604-202309

main13041-40032-02×3i1KRFE..M700,710201604-202309

main13041-40032-03×3i1KRFE..M700,710201604-202309

13201ROD SUB-ASSY, CONNECTING

main13201-B9110-0X×3i1KRFE..M700,710201604-202309

main13201-B9110-0Y×3i1KRFE..M700,710201604-202309

main13201-B9110-0Z×3i1KRFE..M700,710201604-202309

13211PISTON

main13211-B1110-0X×3i1KRFE..M700,710201604-202309

main13211-B1110-0Y×3i1KRFE..M700,710201604-202309

main13211-B1110-0Z×3i1KRFE..M700,710201604-202309

13251PIN, PISTON

main13251-B1020-0X×3i1KRFE..M700,710201604-202309

main13251-B1020-0Y×3i1KRFE..M700,710201604-202309

main13251-B1020-0Z×3i1KRFE..M700,710201604-202309

13265BOLT, CONNECTING ROD

main13265-21020×6i1KRFE..M700,710201604-202309

13400CRANKSHAFT ASSY

main13401-40060i1KRFE..M700,710201604-202309

13431AKEY, WOODRUFF(FOR DISTRIBUTOR DRIVE GEAR)

main90280-04001i1KRFE..M700,710201604-202309

13471PULLEY, CRANKSHAFT

main13470-B1040i1KRFE..M700,710202008-202309

main13471-40060i1KRFE..M700,710201604-202008

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i1KRFE..M700,710201607-202309

main90119-14175i1KRFE..M700,710201604-201606

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-40020i1KRFE..M700,710201604-202309

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

9004520349

main90045-20349

16 parts on this diagram · 1 diagram in section
