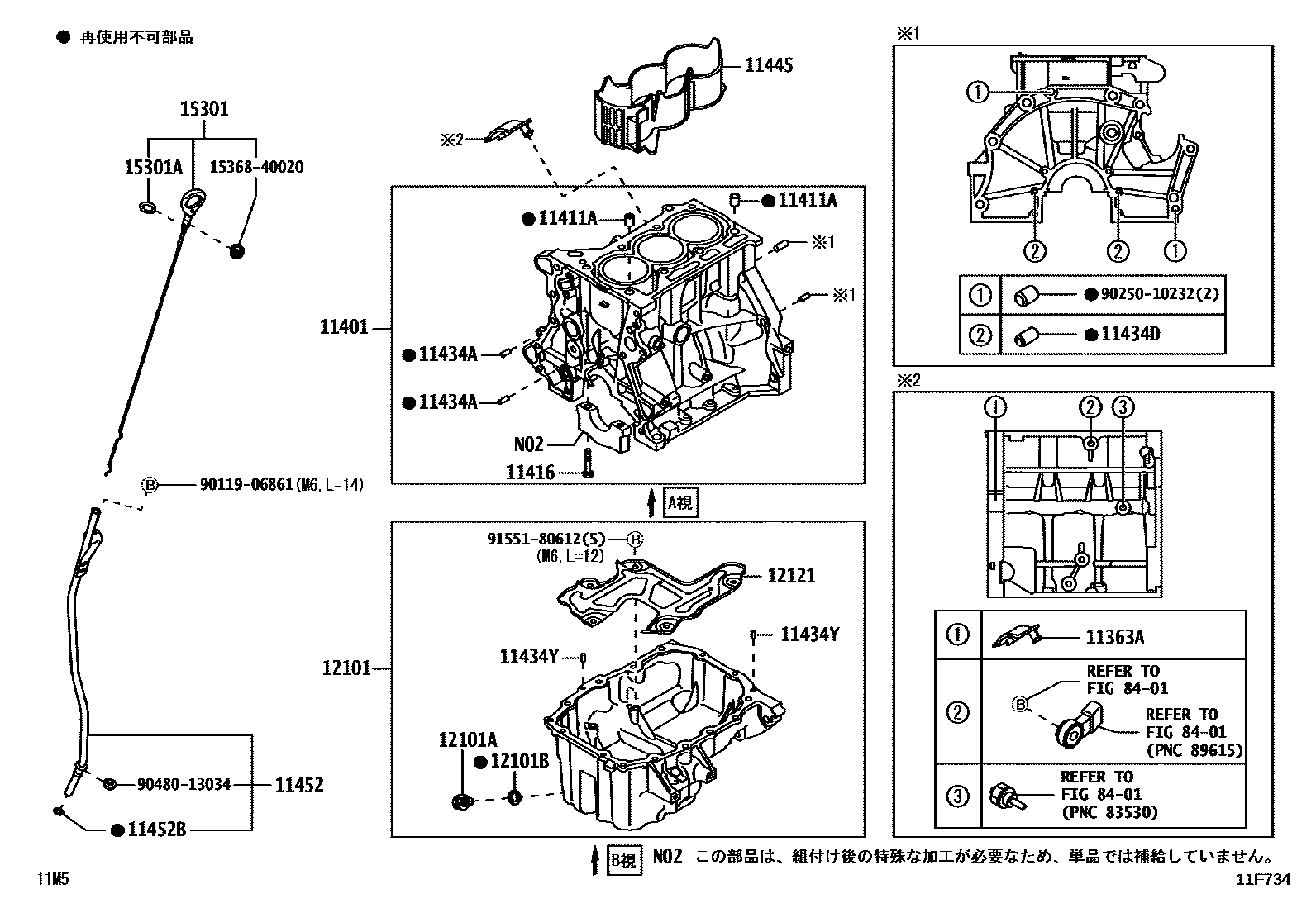

CYLINDER BLOCK
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
11434YPIN, STRAIGHT(FOR OIL PAN)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12121PLATE, OIL PAN BAFFLE, NO.1
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
8401SWITCH & RELAY & COMPUTER
1536840020
main15368-40020
9011906861
main90119-06861
9025010232
main90250-10232
9048013034
main90480-13034
9155180612
main91551-80612
22 parts on this diagram · 2 diagrams in section
