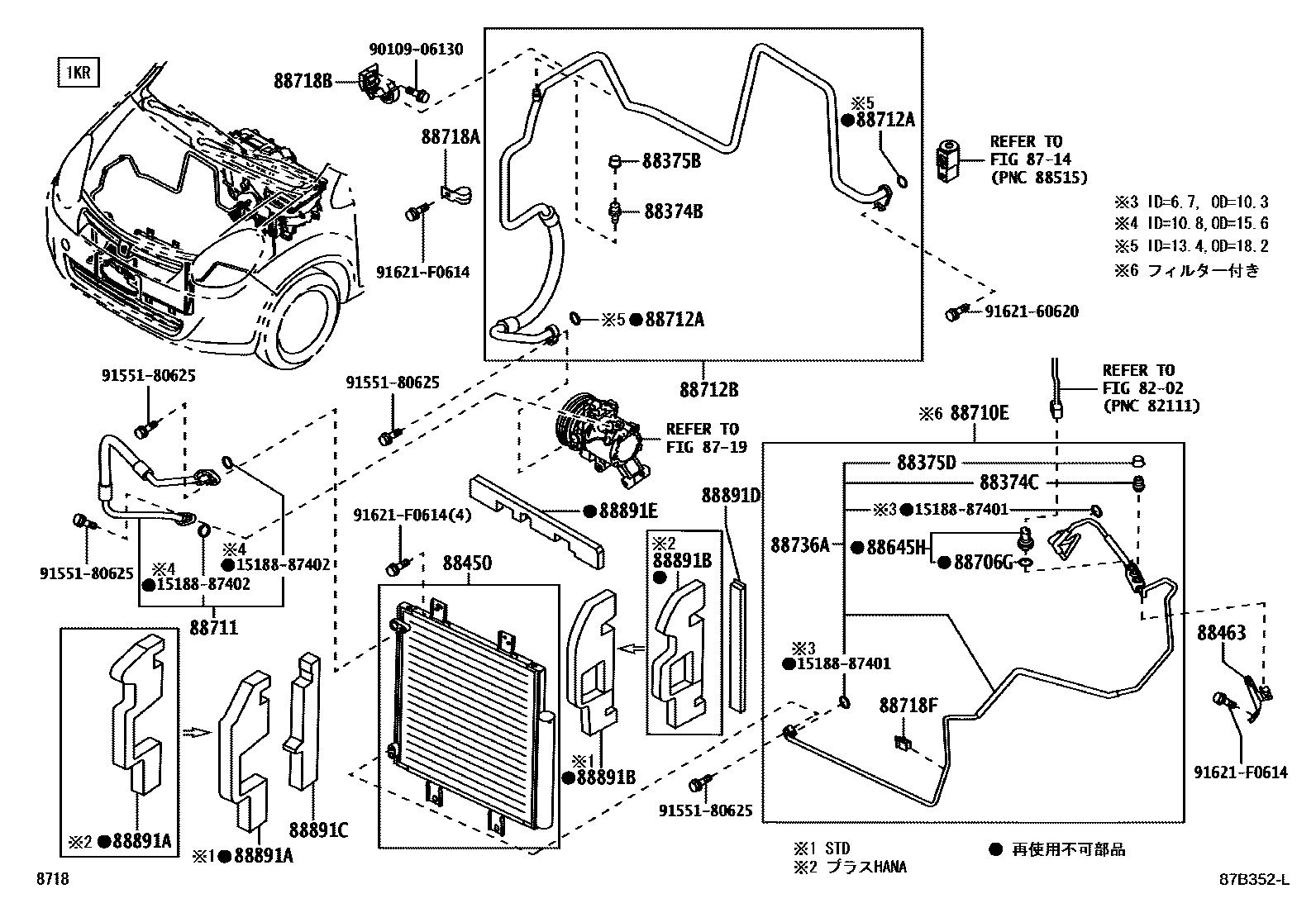

HEATING & AIR CONDITIONING - COOLER PIPING
8202WIRING & CLAMP
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88450CONDENSER ASSY, W/RECEIVER
88463BRACKET, COOLER CONDENSER, NO.1
88645HSWITCH, PRESSURE NO.1
88706GRING, O(FOR LIQUID TUBE)
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88712BHOSE, COOLER REFRIGERANT SUCTION
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88736ATUBE, LIQUID, A(FOR COOL BOX)
88891APACKING A (FOR COOLER)
88891BPACKING B (FOR COOLER)
88891CPACKING C (FOR COOLER)
88891DPACKING D (FOR COOLER)
88891EPACKING E (FOR COOLER)
1518887401GASKET, OIL PUMP
main15188-87401
1518887402GASKET, OIL PUMP
main15188-87402
9010906130
main90109-06130
9155180625
main91551-80625
9162160620
main91621-60620
91621F0614
main91621-F0614
30 parts on this diagram · 4 diagrams in section
