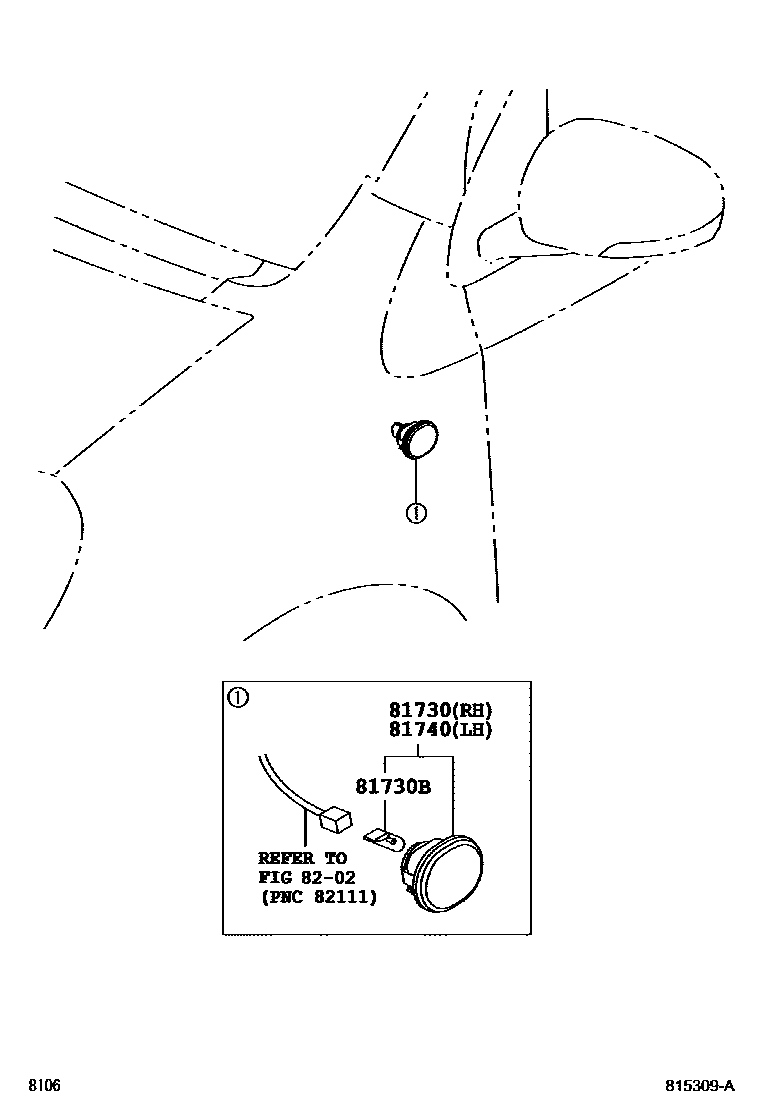

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-30140iKGC3#,NGC30..HANA201002-201206

main81730-52090iKGC3#,NGC30..HANA201404

main81730-B1010iKGC3#,NGC30..G,X201002-201206

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90049-51184×2iKGC3#,NGC30..G,X201206-201404

main90981-11013×2iKGC3#,NGC30..G,X201002-201106

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-B1010iKGC3#,NGC30..G,X201002-201206

main81740-30130iKGC3#,NGC30..HANA201206-201404

main81740-52040iKGC3#,NGC30..HANA201404

8202WIRING & CLAMP

→ Go to FIG 82-02

4 parts on this diagram · 2 diagrams in section
