REAR DOOR LOCK & HANDLE

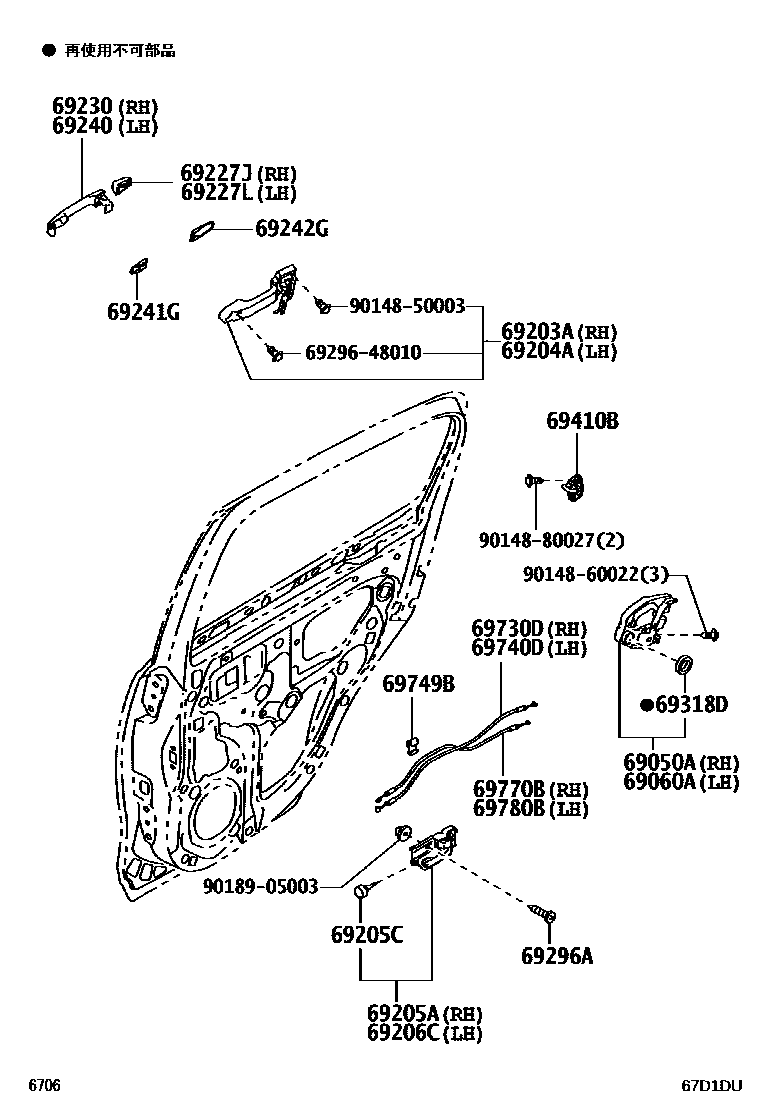

Parts diagram
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
main69050-42021i201002-201404
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
main69060-42021i201002-201404
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-52050i201002-201404
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-52060i201002-201404
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-B1010-E0i201112-201604
LINEN BEIGE,TRIM4#
sub69205-B1010
main69205-B1010-E0i201112-201206
sub69205-B1010
main69205-B1010-E1i201112-201604
EBONY BROWN,TRIM4#
sub69205-B1010
main69205-B1010-E1i201112-201206
sub69205-B1010
main69205-B1021-E0i201404-201604
sub69205-B1050
main69205-B1021-E0i201404-201604
EBONY BROWN,TRIM4#
sub69205-B1050
main69205-B1030-E0i201002-201112
sub69205-B1010
main69205-B1030-E0i201002-201112
LINEN BEIGE,TRIM4#
sub69205-B1010
main69205-B1030-E1i201002-201112
EBONY BROWN,TRIM4#
sub69205-B1010
main69205-B1030-E1i201002-201112
sub69205-B1010
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
main90541-04027i201002-201404
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-B1010-E0i201112-201604
LINEN BEIGE,TRIM4#
sub69206-B1010
main69206-B1010-E0i201112-201206
sub69206-B1010
main69206-B1010-E1i201112-201604
EBONY BROWN,TRIM4#
sub69206-B1010
main69206-B1010-E1i201112-201206
sub69206-B1010
main69206-B1021-E0i201404-201604
sub69206-B1050
main69206-B1021-E0i201404-201604
EBONY BROWN,TRIM4#
sub69206-B1050
main69206-B1030-E0i201002-201112
sub69206-B1010
main69206-B1030-E0i201002-201112
LINEN BEIGE,TRIM4#
sub69206-B1010
main69206-B1030-E1i201002-201112
sub69206-B1010
main69206-B1030-E1i201002-201112
EBONY BROWN,TRIM4#
sub69206-B1010
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-B1010-A3i201404-201604
WHITE PEARL MC.CS,G50 ,P12 ,R40 ,R54 ,R65 ,S28 ,T25 ,W24 ,X07 ,X82 ,X88 ,X89
sub69227-B1010
main69227-B1010-A3i201404-201604
WHITE PEARL MC.CS,W24
sub69227-B1010
main69227-B1010-B7i201002-201404
LT.BLUE ME.OP.,B57
sub69227-B1010
main69227-B1010-D0i201206-201404
sub69227-B1010
main69227-B1010-D0i201002-201604
DK.RED.MC,R54
sub69227-B1010
main69227-B1010-D0i201206-201404
sub69227-B1010
main69227-B1010-D4i201002-201404
LT.ORANGE.M.M.,R62
sub69227-B1010
main69227-B1010-D6i201404-201604
PINK PEARL SE,R65 ,X82
sub69227-B1010
main69227-B1010-E2i201206-201404
CHAMPAGNE,B57 ,G50 ,P12 ,R40 ,R54 ,R62 ,S28 ,T25 ,W16 ,X07
sub69227-B1010
main69227-B1010-E3i201002-201604
BEIGE.ME.,T25
sub69227-B1010
main69227-B1010-G4i201002-201404
LT.GREEN.ME.,G50
sub69227-B1010
main69227-B1010-G4i201404-201602
LT.GREEN.ME.,G50 ,X88
sub69227-B1010
main69227-B1010-G5i201404-201602
OLIVE ME.SE,G52
sub69227-B1010
main69227-B1010-J1i201404-201604
LIGHT BLUE M.M.,B67
sub69227-B1010
main69227-B1010-K1i201002-201604
GRAYISH PURPLE ME.OP.,P12
sub69227-B1010
main69227-B1010-K1i201404-201604
GRAYISH PURPLE ME.OP.,P12 ,X89
sub69227-B1010
main69227-B1010-R0i201002-201602
RED,R40
sub69227-B1010
main69227-B1010-S8i201002-201604
SILVER ME.,S28
sub69227-B1010
main69227-B1010-W6i201002-201404
WHITE PEARL.MC.,W16
sub69227-B1010
main69227-B1010-W9i201002-201604
WHITE,W09
sub69227-B1010
main69227-B1010-X7i201002-201604
BLACK M.M.,X07
sub69227-B1010
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69227-B1010-A3i201404-201604
WHITE PEARL MC.CS,W24
sub69227-B1010
main69227-B1010-A3i201404-201604
WHITE PEARL MC.CS,G50 ,P12 ,R40 ,R54 ,R65 ,S28 ,T25 ,W24 ,X07 ,X82 ,X88 ,X89
sub69227-B1010
main69227-B1010-B7i201002-201404
LT.BLUE ME.OP.,B57
sub69227-B1010
main69227-B1010-D0i201002-201604
DK.RED.MC,R54
sub69227-B1010
main69227-B1010-D0i201206-201404
sub69227-B1010
main69227-B1010-D0i201206-201404
sub69227-B1010
main69227-B1010-D4i201002-201404
LT.ORANGE.M.M.,R62
sub69227-B1010
main69227-B1010-D6i201404-201604
PINK PEARL SE,R65 ,X82
sub69227-B1010
main69227-B1010-E2i201206-201404
CHAMPAGNE,B57 ,G50 ,P12 ,R40 ,R54 ,R62 ,S28 ,T25 ,W16 ,X07
sub69227-B1010
main69227-B1010-E3i201002-201604
BEIGE.ME.,T25
sub69227-B1010
main69227-B1010-G4i201002-201404
LT.GREEN.ME.,G50
sub69227-B1010
main69227-B1010-G4i201404-201602
LT.GREEN.ME.,G50 ,X88
sub69227-B1010
main69227-B1010-G5i201404-201602
OLIVE ME.SE,G52
sub69227-B1010
main69227-B1010-J1i201404-201604
LIGHT BLUE M.M.,B67
sub69227-B1010
main69227-B1010-K1i201404-201604
GRAYISH PURPLE ME.OP.,P12 ,X89
sub69227-B1010
main69227-B1010-K1i201002-201604
GRAYISH PURPLE ME.OP.,P12
sub69227-B1010
main69227-B1010-R0i201002-201602
RED,R40
sub69227-B1010
main69227-B1010-S8i201002-201604
SILVER ME.,S28
sub69227-B1010
main69227-B1010-W6i201002-201404
WHITE PEARL.MC.,W16
sub69227-B1010
main69227-B1010-W9i201002-201604
WHITE,W09
sub69227-B1010
main69227-B1010-X7i201002-201604
BLACK M.M.,X07
sub69227-B1010
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69211-B1010-A3i201404-201604
WHITE PEARL MC.CS,W24
sub69211-B1010
main69211-B1010-A3i201404-201604
WHITE PEARL MC.CS,G50 ,P12 ,R40 ,R54 ,R65 ,S28 ,T25 ,W24 ,X07 ,X82 ,X88 ,X89
sub69211-B1010
main69211-B1010-B7i201002-201404
LT.BLUE ME.OP.,B57
sub69211-B1010
main69211-B1010-D0i201206-201404
sub69211-B1010
main69211-B1010-D0i201002-201604
DK.RED.MC,R54
sub69211-B1010
main69211-B1010-D0i201206-201404
sub69211-B1010
main69211-B1010-D4i201002-201404
LT.ORANGE.M.M.,R62
sub69211-B1010
main69211-B1010-D6i201404-201604
PINK PEARL SE,R65 ,X82
sub69211-B1010
main69211-B1010-E2i201206-201404
CHAMPAGNE,B57 ,G50 ,P12 ,R40 ,R54 ,R62 ,S28 ,T25 ,W16 ,X07
sub69211-B1010
main69211-B1010-E3i201002-201604
BEIGE.ME.,T25
sub69211-B1010
main69211-B1010-G4i201002-201404
LT.GREEN.ME.,G50
sub69211-B1010
main69211-B1010-G4i201404-201602
LT.GREEN.ME.,G50 ,X88
sub69211-B1010
main69211-B1010-G5i201404-201602
OLIVE ME.SE,G52
sub69211-B1010
main69211-B1010-J1i201404-201604
LIGHT BLUE M.M.,B67
sub69211-B1010
main69211-B1010-K1i201404-201604
GRAYISH PURPLE ME.OP.,P12 ,X89
sub69211-B1010
main69211-B1010-K1i201002-201604
GRAYISH PURPLE ME.OP.,P12
sub69211-B1010
main69211-B1010-R0i201002-201602
RED,R40
sub69211-B1010
main69211-B1010-S8i201002-201604
SILVER ME.,S28
sub69211-B1010
main69211-B1010-W6i201002-201404
WHITE PEARL.MC.,W16
sub69211-B1010
main69211-B1010-W9i201002-201604
WHITE,W09
sub69211-B1010
main69211-B1010-X7i201002-201604
BLACK M.M.,X07
sub69211-B1010
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69211-B1010-A3i201404-201604
WHITE PEARL MC.CS,G50 ,P12 ,R40 ,R54 ,R65 ,S28 ,T25 ,W24 ,X07 ,X82 ,X88 ,X89
sub69211-B1010
main69211-B1010-A3i201404-201604
WHITE PEARL MC.CS,W24
sub69211-B1010
main69211-B1010-B7i201002-201404
LT.BLUE ME.OP.,B57
sub69211-B1010
main69211-B1010-D0i201002-201604
DK.RED.MC,R54
sub69211-B1010
main69211-B1010-D0i201206-201404
sub69211-B1010
main69211-B1010-D0i201206-201404
sub69211-B1010
main69211-B1010-D4i201002-201404
LT.ORANGE.M.M.,R62
sub69211-B1010
main69211-B1010-D6i201404-201604
PINK PEARL SE,R65 ,X82
sub69211-B1010
main69211-B1010-E2i201206-201404
CHAMPAGNE,B57 ,G50 ,P12 ,R40 ,R54 ,R62 ,S28 ,T25 ,W16 ,X07
sub69211-B1010
main69211-B1010-E3i201002-201604
BEIGE.ME.,T25
sub69211-B1010
main69211-B1010-G4i201002-201404
LT.GREEN.ME.,G50
sub69211-B1010
main69211-B1010-G4i201404-201602
LT.GREEN.ME.,G50 ,X88
sub69211-B1010
main69211-B1010-G5i201404-201602
OLIVE ME.SE,G52
sub69211-B1010
main69211-B1010-J1i201404-201604
LIGHT BLUE M.M.,B67
sub69211-B1010
main69211-B1010-K1i201404-201604
GRAYISH PURPLE ME.OP.,P12 ,X89
sub69211-B1010
main69211-B1010-K1i201002-201604
GRAYISH PURPLE ME.OP.,P12
sub69211-B1010
main69211-B1010-R0i201002-201602
RED,R40
sub69211-B1010
main69211-B1010-S8i201002-201604
SILVER ME.,S28
sub69211-B1010
main69211-B1010-W6i201002-201404
WHITE PEARL.MC.,W16
sub69211-B1010
main69211-B1010-W9i201002-201604
WHITE,W09
sub69211-B1010
main69211-B1010-X7i201002-201604
BLACK M.M.,X07
sub69211-B1010
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-B1020i201002-201404
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69242-B1020i201002-201404
69296ASCREW, DOOR INSIDE HANDLE
main90164-50032i201002-201604
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201002-201404
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-B2030i201002-201404
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-B1040i201002-201404
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-B1040i201002-201404
69749BCLAMP, REAR DOOR LOCK LINK
main69749-32040i201002-201404
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-B1040i201002-201404
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69780-B1040i201002-201404
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9018905003
main90189-05003

26 parts on this diagram · 1 diagram in section
