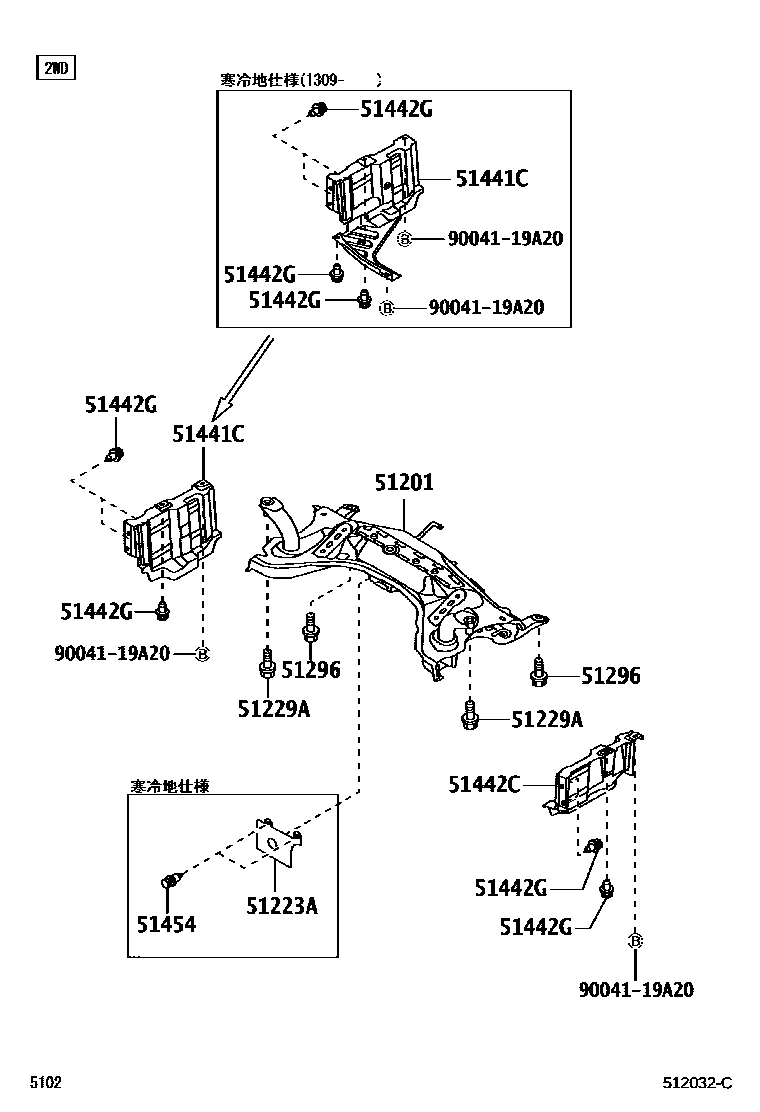

SUSPENSION CROSSMEMBER & UNDER COVER

0001 12WD 0002 14WD

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B1022iKGC35201002-201101

main51201-B1023iKGC35201102-201404

main51201-B1033iKGC30,NGC30201002-201012

main51201-B1034iKGC30,NGC30201101-201404

51223ACOVER, ENGINE MOUNTING HOLE

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-01638iKGC3#,NGC30201002-201604

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-19948iKGC3#,NGC30201002-201604

51441CCOVER, ENGINE UNDER, RH

main51441-B1050iKGC3#,NGC30201002-201404

51442CCOVER, ENGINE UNDER, LH

main51442-B1040iKGC3#,NGC30201002-201404

51442GCLIP, ENGINE UNDER COVER, NO.1

main90044-68320iKGC3#,NGC30201002-201404

main90044-68320iKGC3#,NGC30201404-201604

51454CLIP

main90044-67517

9004119A20

main90041-19A20

9 parts on this diagram · 2 diagrams in section
