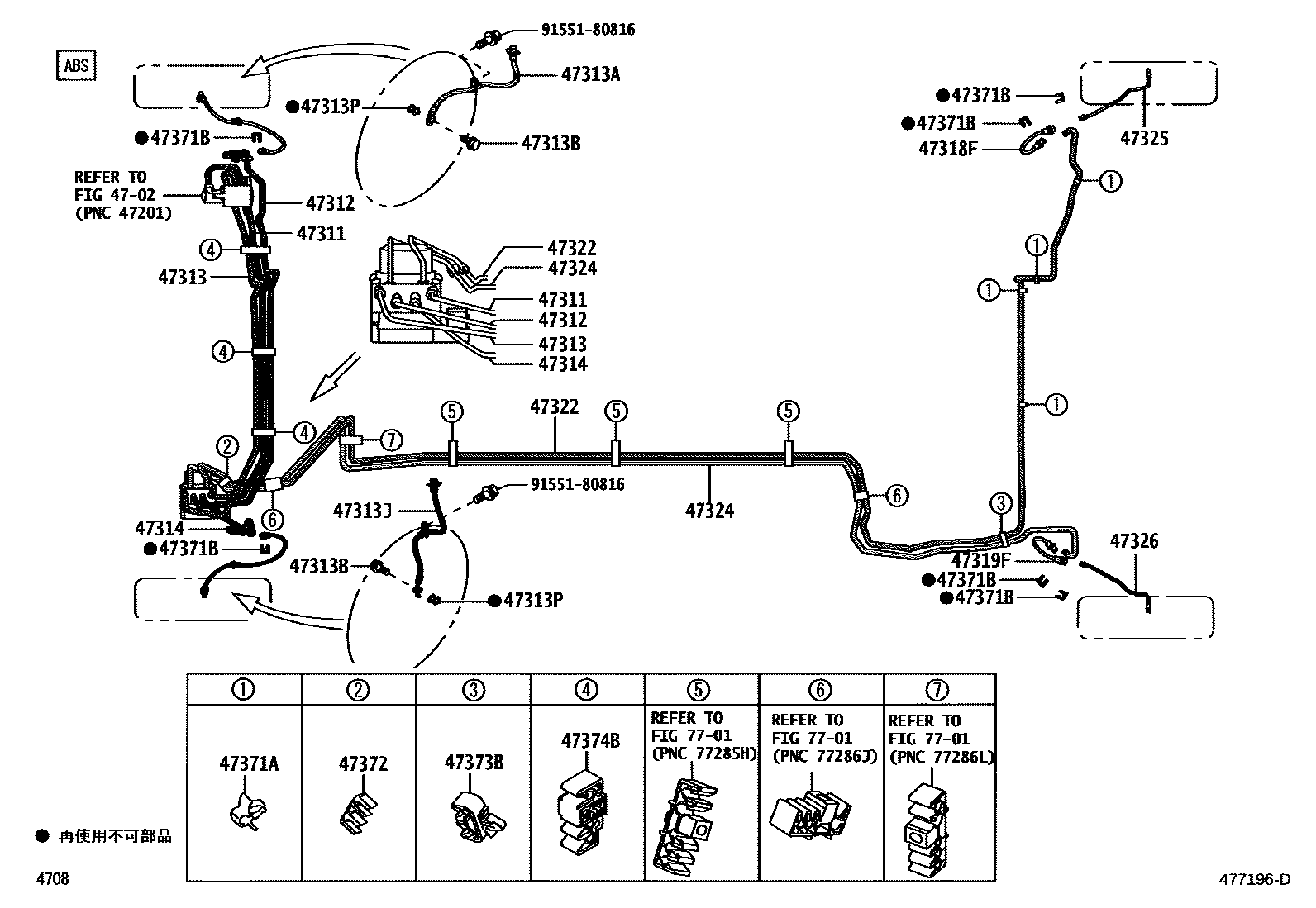

BRAKE TUBE & CLAMP

0001 1ABS 0002 1VSC 0003 1ABS ACTUATOR 0004 1VSC ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-B1170supersedes 47311-B1190iKGC3#,NGC30201002-201206

main47311-B1171supersedes 47311-B1190iKGC3#,NGC30201206-201404

47312TUBE, FRONT BRAKE, NO.2

main47312-B1100supersedes 47312-B1120iKGC3#,NGC30201002-201206

main47312-B1101supersedes 47312-B1120iKGC3#,NGC30201206-201404

47313TUBE, FRONT BRAKE, NO.3

main47313-B1170supersedes 47313-B1191iKGC3#,NGC30201002-201206

main47313-B1171supersedes 47313-B1191iKGC3#,NGC30201206-201404

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90049-22289iKGC35..HANA201404-201604

main90049-22298iKGC35..X;KGC30,NGC30201206-201404

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iKGC3#,NGC30201002-201206

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90049-22290iKGC35..HANA201206-201404

main90049-22299iKGC35..X;KGC30,NGC30201206-201404

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iKGC3#,NGC30201206-201404

47314TUBE, FRONT BRAKE, NO.4

main47314-B1070supersedes 47314-B1071iKGC3#,NGC30201002-201206

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90049-22186iKGC35201002-201206

main90049-22193iKGC30,NGC30201002-201206

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90049-22186iKGC35201002-201206

main90049-22193iKGC30,NGC30201206-201404

47322TUBE, REAR BRAKE, NO.2

main47322-B1150supersedes 47322-B1152iKGC30,NGC30201002-201206

main47322-B1151supersedes 47322-B1152iKGC30,NGC30201206-201404

main47322-B1160supersedes 47322-B1162iKGC35201002-201206

main47322-B1161supersedes 47322-B1162iKGC35201206-201404

47324TUBE, REAR BRAKE, NO.4

main47324-B1150supersedes 47324-B1151iKGC30,NGC30201002-201206

main47324-B1160supersedes 47324-B1161iKGC35201002-201206

47325TUBE, REAR BRAKE, NO.5

main47325-B1010iKGC30,NGC30201002-201206

main47325-B1070iKGC35201206-201404

47326TUBE, REAR BRAKE, NO.6

main47326-B1010iKGC30,NGC30201206-201404

main47326-B1070iKGC35201206-201404

47371ACLAMP, BRAKE TUBE, NO.1

main90044-64659×4iKGC3#,NGC30201206-201404

main90044-64889×4iKGC3#,NGC30201404

47371BCLAMP, BRAKE TUBE, NO.6

main90044-65441×6iKGC3#,NGC30; KGC35..HANA201002-201206

47372CLAMP, BRAKE TUBE, NO.2

main90044-64731iKGC3#,NGC30201206-201404

main90464-00904iKGC3#,NGC30201404

47373BCLAMP, BRAKE TUBE, NO.3

main90044-64780iKGC3#,NGC30201002-201206

main90044-64891iKGC3#,NGC30201404

47374BCLAMP, BRAKE TUBE, NO.4

main90044-64781×3iKGC3#,NGC30201002-201206

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9155180816

main91551-80816

22 parts on this diagram · 4 diagrams in section
