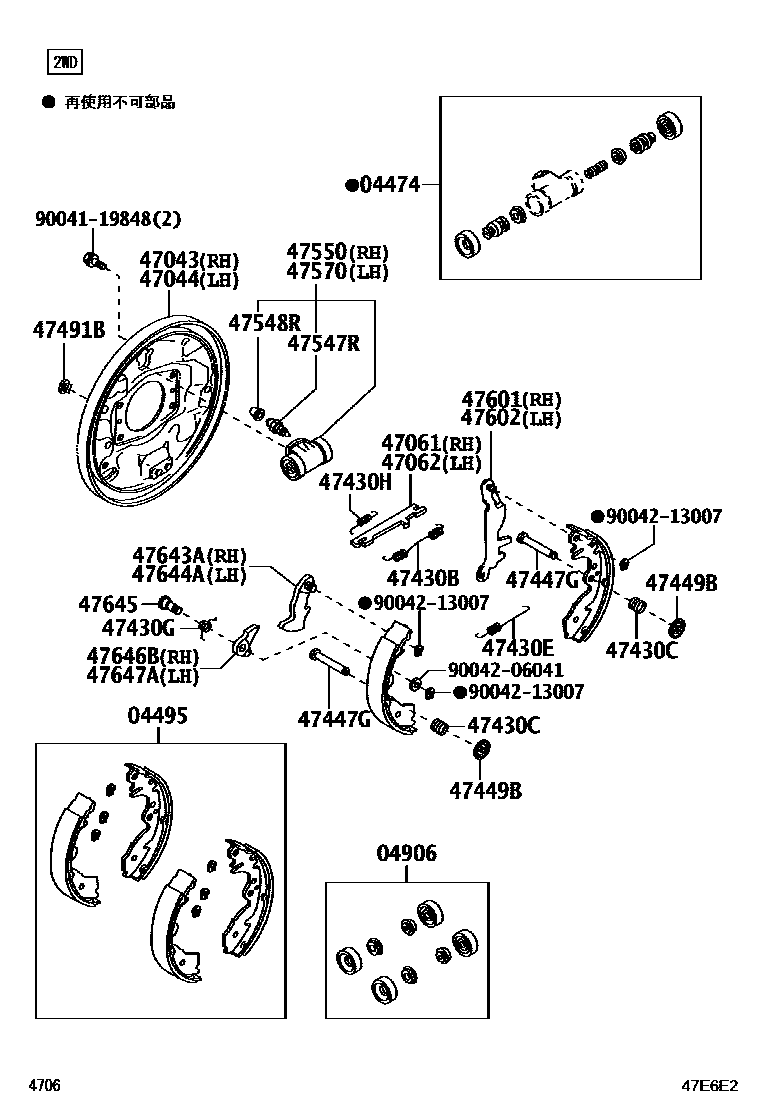

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 12WD 0002 14WD

04474CYLINDER KIT, REAR WHEEL

main04474-B1010×2iKGC3#,NGC30201002-201206

04495SHOE KIT, REAR BRAKE

main04495-B1081iKGC30,NGC30201404

main04495-B2260iKGC35201206-201404

04906CUP KIT, REAR WHEEL CYLINDER

main04906-B2010iKGC3#,NGC30201002-201206

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-B1030iKGC30,NGC30201404

main47043-B2060iKGC35201206-201404

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-B1030iKGC30,NGC30201002-201206

main47044-B2060iKGC35201206-201404

47061STRUT SET, PARKING BRAKE SHOE, RH

main47613-B1010iKGC35201206-201404

main47613-B2050iKGC30,NGC30201206-201404

47062STRUT SET, PARKING BRAKE SHOE, LH

main47613-B1010iKGC35201002-201206

main47613-B2050iKGC30,NGC30201002-201206

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90045-06197×2iKGC35201002-201206

main90045-06255×2iKGC30,NGC30201002-201206

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90045-01816×4iKGC30,NGC30201002-201206

main90045-01854×4iKGC35201206-201404

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main44699-B2010×2iKGC30,NGC30201002-201206

main90045-06257×2iKGC35201002-201206

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90045-08361iKGC35201002-201206

main90045-08362iKGC35201404

main90045-08383iKGC30,NGC30201404

main90045-08384iKGC30,NGC30201404

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90045-06196iKGC3#,NGC30201404

main90045-06199iKGC3#,NGC30201404

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87204×4iKGC30,NGC30201002-201206

main47447-87501×4iKGC35201206-201404

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201×4iKGC3#,NGC30201404

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-B1010×2iKGC3#,NGC30201002-201206

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-87203×2iKGC3#,NGC30201002-201206

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-87501×2iKGC3#,NGC30201206-201404

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-B2020iKGC30,NGC30201002-201206

main47560-B5010iKGC35201002-201206

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-B2020iKGC30,NGC30201002-201206

main47560-B5010iKGC35201206-201404

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-97501iKGC35201002-201206

main47601-B2040iKGC30,NGC30201002-201206

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-97501iKGC35201002-201206

main47602-B2040iKGC30,NGC30201206-201404

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47608-87201iKGC30,NGC30201404

main47608-87501iKGC35201404

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47609-87201iKGC30,NGC30201404

main47609-87501iKGC35201404

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-87201×2iKGC3#,NGC30201002-201206

47646BLATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47646-97201iKGC3#,NGC30201002-201206

47647ALATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47647-97201iKGC3#,NGC30201002-201206

9004119848

main90041-19848

9004206041

main90042-06041

9004213007

main90042-13007
