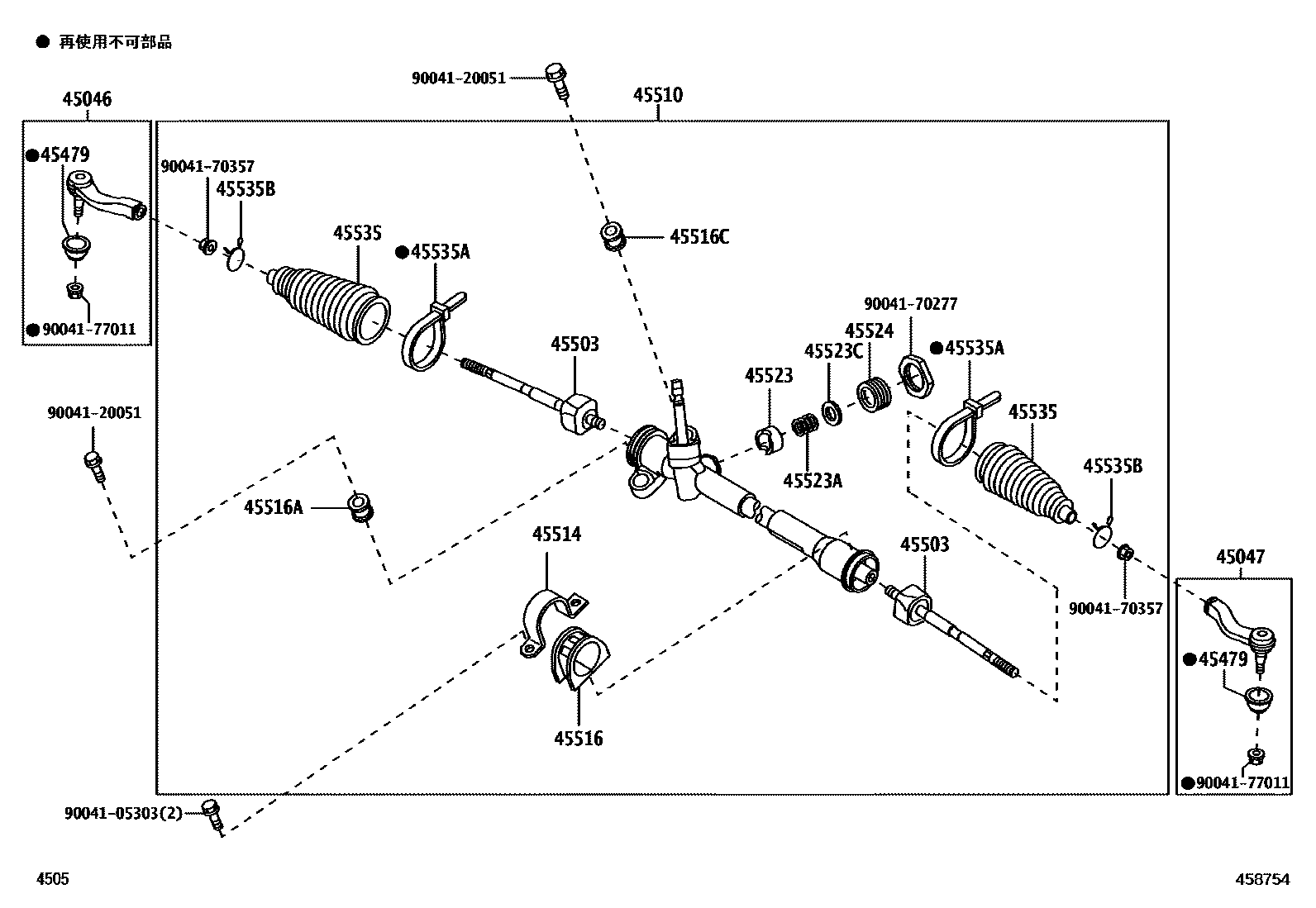

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-B9210iKGC3#,NGC30201002-201206

45047END SUB-ASSY, TIE ROD, LH

main45047-B9150iKGC3#,NGC30201404

45479SEAL, STEERING LINK JOINT DUST

main45479-B2010×2iKGC3#,NGC30201206-201404

45503END SUB-ASSY, STEERING RACK

main45503-B1020×2iKGC3#,NGC30201404

45510GEAR ASSY, STEERING

main45502-B1104supersedes 45502-B1095iKGC3#,NGC30..G,HANA; KGC3#..X201002-201206

main45502-B1105supersedes 45502-B1095iKGC3#,NGC30..G,HANA; KGC3#..X201211-201404

main45502-B1094iKGC3#..X; KGC30..HANA201206-201210

main45502-B1095iKGC3#..X; KGC30..HANA201211-201404

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-B2010iKGC3#,NGC30201002-201206

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-B1030iKGC3#,NGC30201002-201206

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-B2090iKGC3#,NGC30201002-201206

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-B2100iKGC3#,NGC30201002-201206

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-97501iKGC3#,NGC30201002-201009

main45523-B1030iKGC3#,NGC30201010-201206

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90045-01429iKGC3#,NGC30201002-201206

45523CSPACER(FOR RACK GUIDE)

main90042-08036iKGC3#,NGC30201002-201206

45524CAP, STEERING RACK GUIDE SPRING

main45524-87705iKGC3#,NGC30201002-201206

45535BOOT, STEERING RACK, NO.1

main45535-B2010×2iKGC3#,NGC30201002-201206

45535ACLAMP(FOR STEERING RACK BOOT)

main45536-87205×2iKGC3#,NGC30201002-201206

main45538-B2020×2iKGC3#,NGC30201211-201404

45535BCLIP(FOR STEERING RACK BOOT)

main45537-97201×2iKGC3#,NGC30201002-201206

9004105303

main90041-05303

9004120051

main90041-20051

9004170277

main90041-70277

9004170357

main90041-70357

9004177011

main90041-77011

21 parts on this diagram · 1 diagram in section
