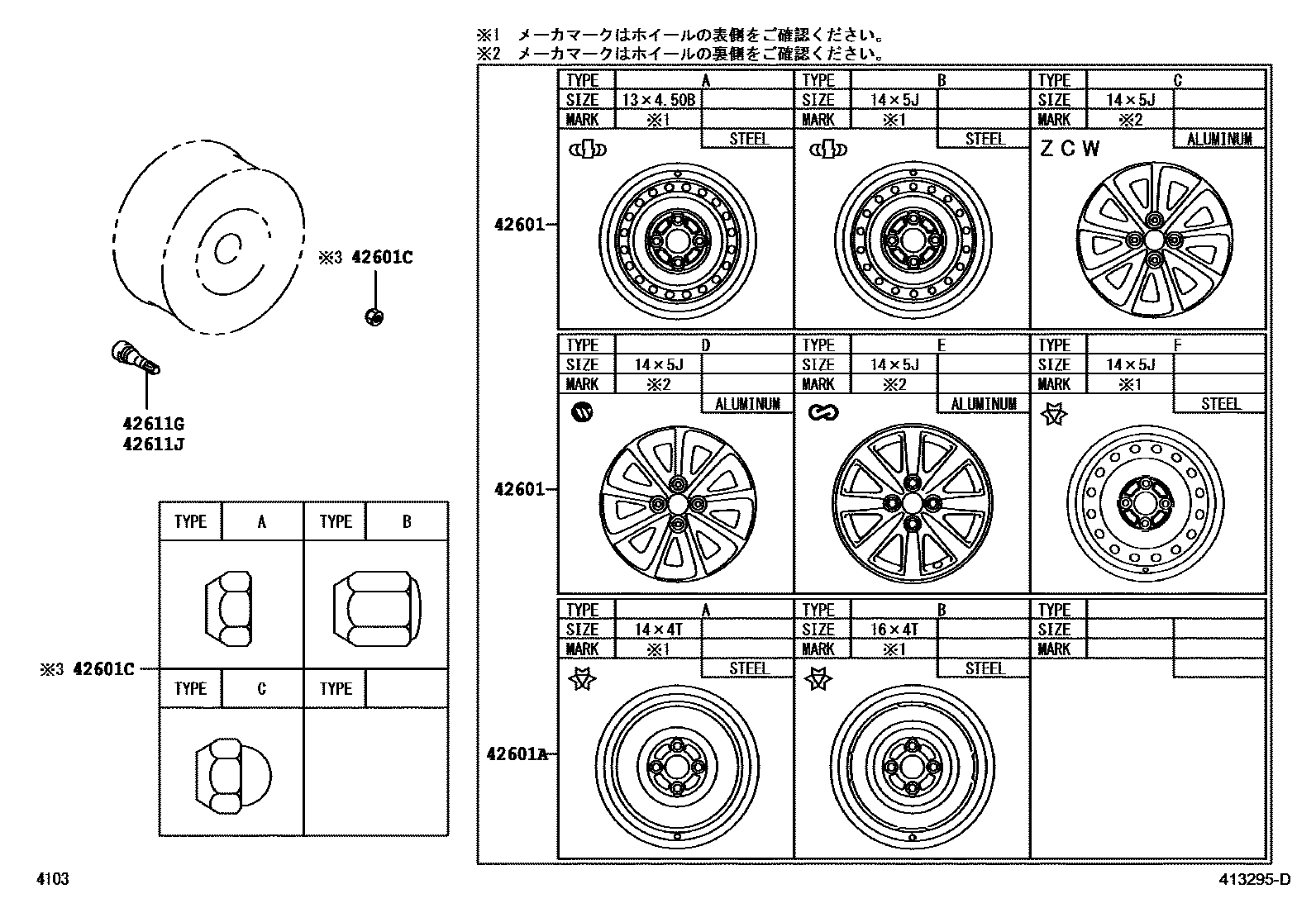

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-B1100×4supersedes 42611-B1012iKGC3#..X; NGC30..G;KGC3#..HANA201002-201206

main42611-B1160-E0×4iKGC3#..X; KGC30..HANA; NGC30..G; NGC30..HANA201206-201404

main42611-B1190-B0×4iKGC30..HANA; KGC30..X; NGC30..G; NGC30..HANA201404-201604

main42611-B1190-E0×4iKGC3#..X; KGC30..HANA; NGC30..G; NGC30..HANA201206-201404

main42611-BW060×4iKGC30;NGC30..G;KGC35..HANA201404-201604

main42611-B1012×4iKGC3#..X; KGC30..HANA201002-201206

main42611-B1022×4iKGC30..X201206-201404

main42611-B1110-E0×4iKGC35..HANA201206-201404

main42611-B1120×4supersedes 42611-B1012iKGC35..HANA; KGC35..X201404-201604

42601AWHEEL, DISC (FOR SPARE)

main42611-B1040iKGC30,NGC30201002-201206

main42611-B1050iKGC35201404-201512

main42611-B1051iKGC35201601

42601CNUT, HUB (FOR AXLE)

main90049-11036×16iKGC3#;NGC30..G201404

main90049-11047×16iKGC30;KGC35,NGC30..G,X; KGC35..HANA; NGC30..HANA201002-201206

main90049-11073×16iKGC30..X201002-201206

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4iKGC3#,NGC30201206-201404

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90049-02019iKGC3#,NGC30201002-201206

5 parts on this diagram · 3 diagrams in section
