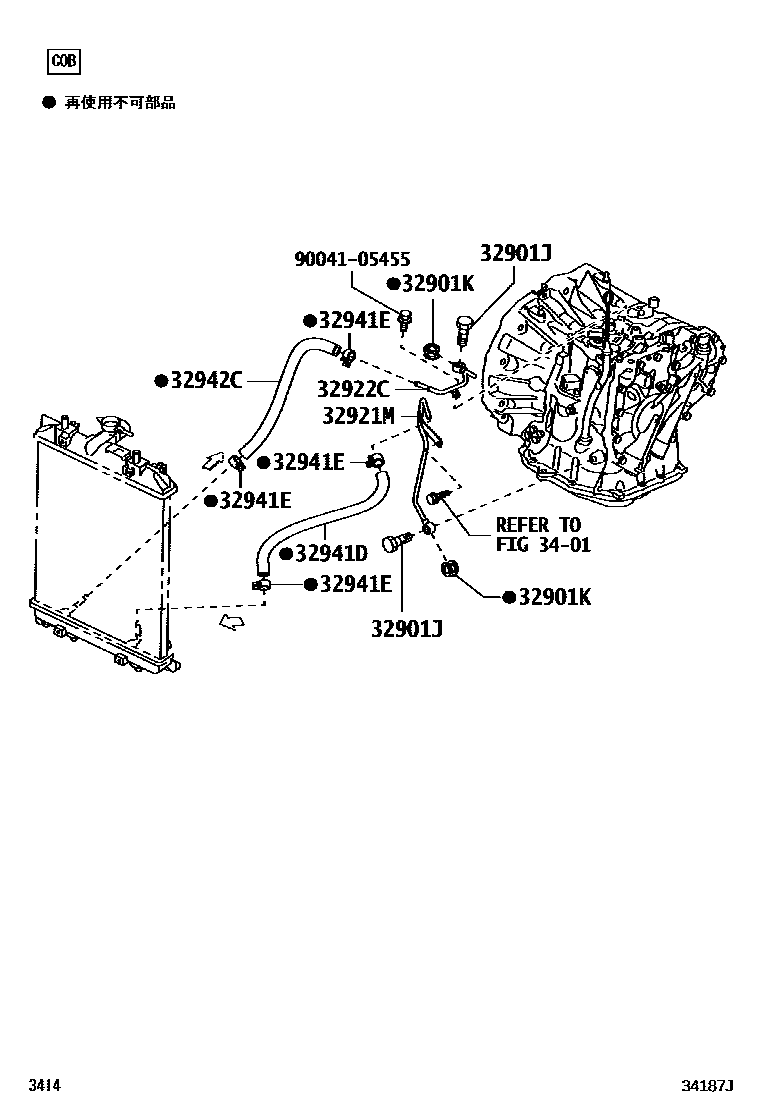

OIL COOLER & TUBE(CVT)

0001 1C0B 0002 1C0B 0003 1C0C 0004 1C0C

32901JBOLT, UNION(FOR OIL COOLER)

main90044-01081×2iKGC3#201002-201206

32901KGASKET(FOR OIL COOLER UNION)

main90044-30326×2iKGC3#201002-201009

main90044-30329×2iKGC3#201009-201206

32921MTUBE, OIL COOLER INLET, NO.1

main32904-B1030iKGC3#201002-201004

main32904-B1031iKGC3#201004-201206

main32904-B1060iKGC3#201404

32922CTUBE, OIL COOLER OUTLET, NO.1

main32905-B1060iKGC3#201002-201206

main32905-B1070iKGC3#201404

32941DHOSE, OIL COOLER INLET

main32941-B1050iKGC3#201002-201004

main32941-B1051iKGC3#201004-201206

main32941-B1090iKGC3#201404

32941ECLIP(FOR OIL COOLER TUBE)

main90044-67576×4iKGC3#201002-201206

main90044-67590×4iKGC3#201404

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-B1050iKGC3#201002-201206

main32942-B1090iKGC3#201404

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

9004105455

main90041-05455

9 parts on this diagram · 4 diagrams in section
