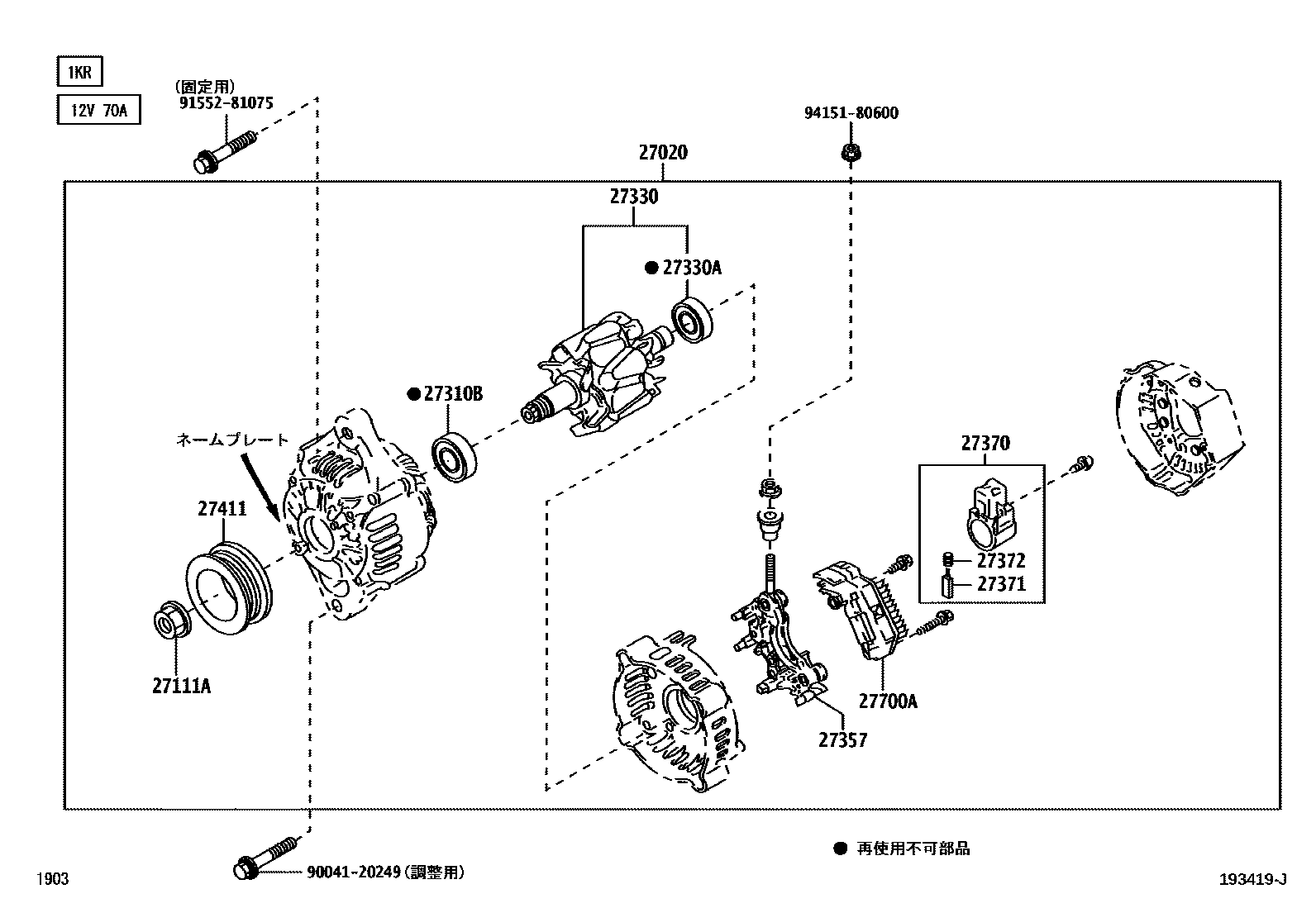

ALTERNATOR

0001 1 0002 1 0003 1

27020ALTERNATOR ASSY

main27060-B1100i1KRFE..KGC3#201002-201206

main27060-B1101i1KRFE..KGC3#201210-201404

main27060-B1110i1NRFE..NGC30201002-201206

main27060-B1150i1KRFE..KGC3#201404-201604

27111ANUT, ALTERNATOR

main90099-05171i1KRFE..KGC3#201002-201206

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-B1070i1KRFE..KGC3#201404

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main27791-87703i1NRFE..NGC30201002-201103

main27791-87707i1KRFE..KGC3#201002-201101

main9004C-37002i1NRFE..NGC30201206-201309

main9004C-37003i1KRFE..KGC3#201101-201206

main9004C-37008i1NRFE..NGC30201309-201404

27330ROTOR ASSY, ALTERNATOR

main27330-87716i1KRFE..KGC3#201206-201404

main27330-B1010i1NRFE..NGC30201206-201312

main27330-B1020i1NRFE..NGC30201312-201404

main27330-B1030i1KRFE..KGC3#201404

27330ABEARING(FOR ALTERNATOR ROTOR)

main27791-87708i1KRFE,1NRFE..KGC3#,NGC30201002-201206

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-87712i1KRFE..KGC3#201002-201206

main27357-B1010i1NRFE..NGC30201206-201404

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-87205i1KRFE..KGC3#201206-201404

main27370-B1010i1NRFE..NGC30201206-201404

main27370-B1020i1KRFE..KGC3#201404

27371BRUSH, ALTERNATOR

main27371-87501×2i1KRFE..KGC3#201002-201206

main27371-B1010×3i1NRFE..NGC30201206-201404

27372SPRING, ALTERNATOR BRUSH

main27372-87501×2i1KRFE..KGC3#201206-201404

27411PULLEY, ALTERNATOR

main27411-B1010i1KRFE..KGC3#201206-201404

27700AREGULATOR ASSY, GENERATOR

main27700-B1040i1NRFE..NGC30201404

main27700-B2030i1KRFE..KGC3#201206-201404

9004120249

main90041-20249

9155281075

main91552-81075

9415180600

main94151-80600

15 parts on this diagram · 3 diagrams in section
