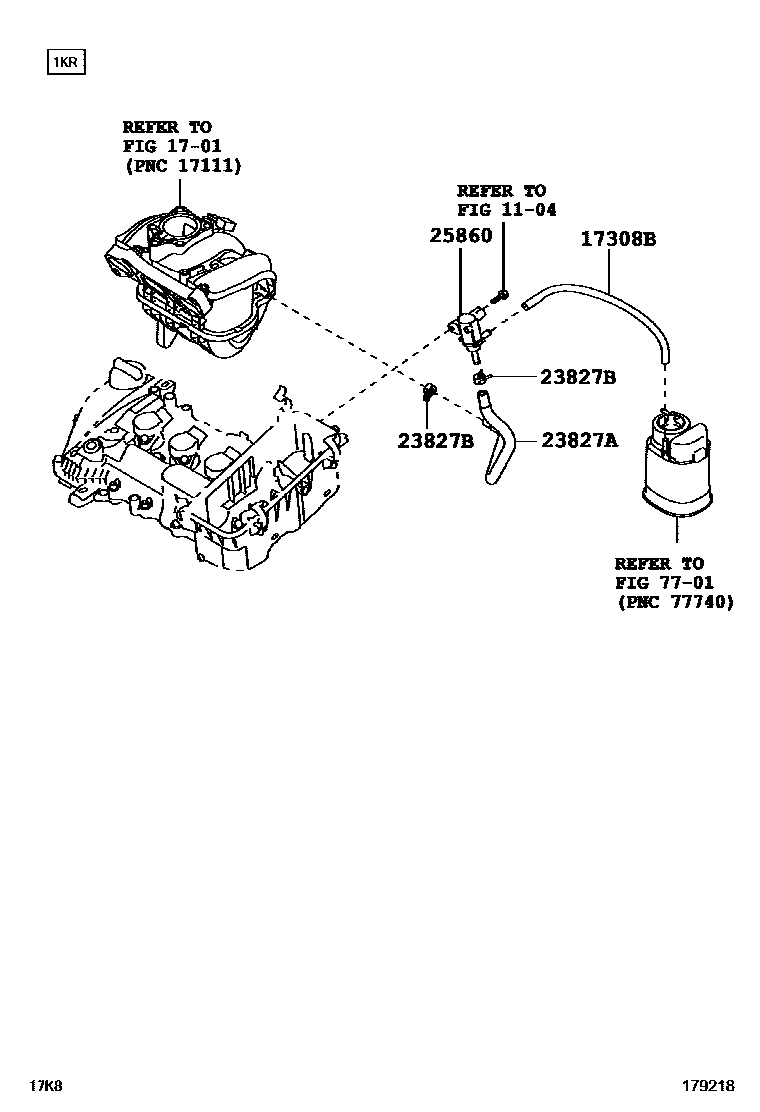

Toyota PASSO — VACUUM PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1701MANIFOLD

→ Go to FIG 17-01

17308BHOSE SUB-ASSY, VACUUM

23827AHOSE, FUEL VAPOR FEED, NO.2

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

25860-B1010

90910-12280

7701FUEL TANK & TUBE

→ Go to FIG 77-01

7 parts on this diagram · 2 diagrams in section

VACUUM PIPING for Toyota PASSO

This section contains 8 genuine Toyota parts for the VACUUM PIPING system of the Toyota PASSO. Key components include: CYLINDER HEAD, MANIFOLD, HOSE SUB-ASSY, VACUUM, HOSE, FUEL, HOSE, FUEL VAPOR FEED, NO.2.
