MANIFOLD

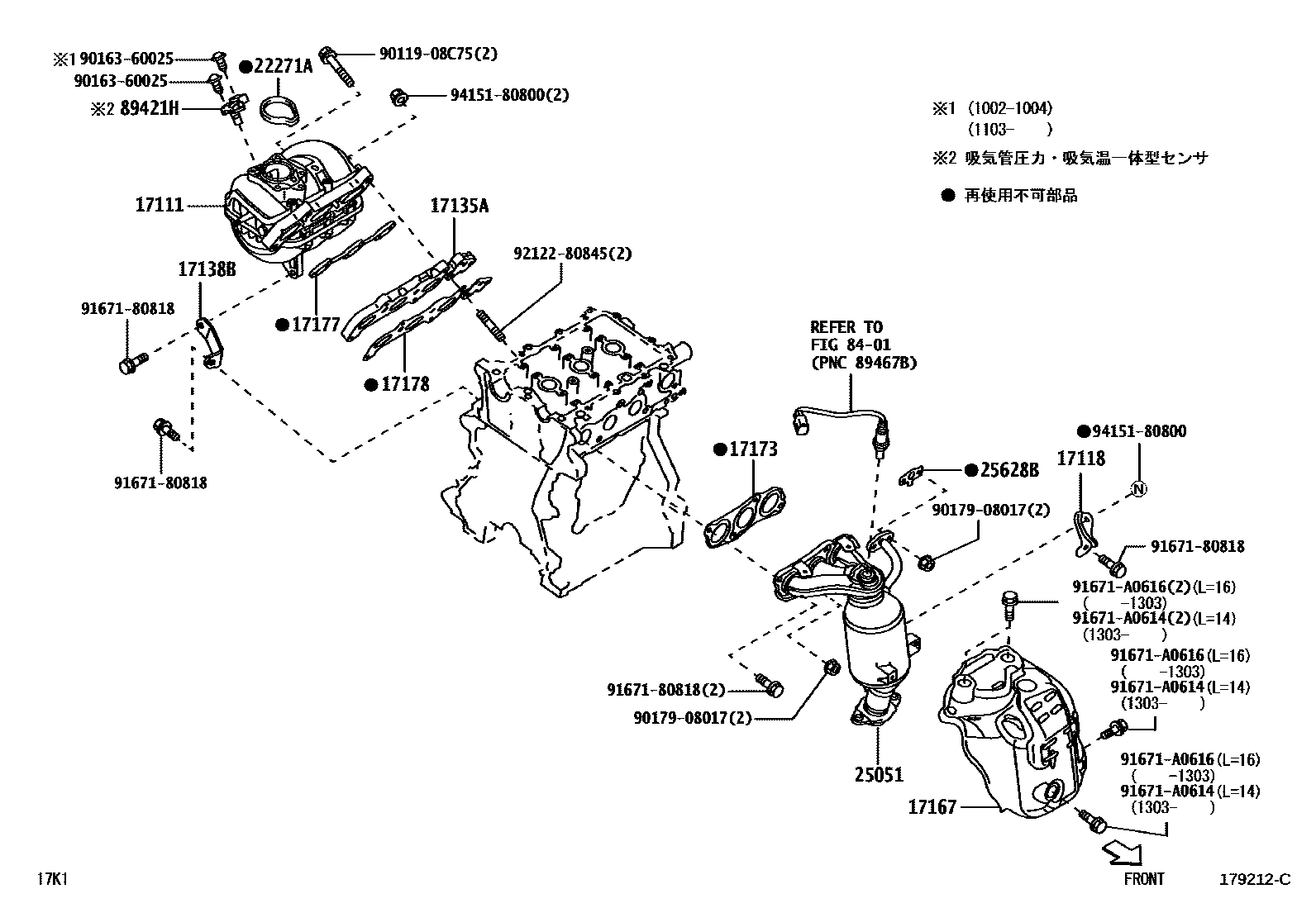

Parts diagram

17111MANIFOLD, INTAKE

main17101-40011i201002-201212

main17101-40012i201212-201404

main17101-40020i201404

main17120-47030i201002-201008

main17120-47031i201008-201111

main17120-47032i201111-201404

17118STAY, MANIFOLD

main17118-40010i201002-201404

main17118-40040i201404

main17118-47010i201002-201404

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-40020i201002-201404

main17135-40030i201404

17138BSTAY, INTAKE MANIFOLD

main17138-40020i201002-201404

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-40020i201002-201404

main17167-40060i201404

main17167-47011i201002-201404

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-40020i201002-201404

main17173-40040i201404

main17173-47020i201002-201008

main17173-47021i201009-201404

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-40020i201002-201404

main17177-40030i201404

main17177-47010i201002-201110

main17177-47011i201111-201404

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-40020i201002-201404

main17178-40030i201404

22271AGASKET, THROTTLE BODY

main22271-40010i201002-201404

main22271-40030i201404

main22271-47010i201002-201404

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-B1110i201002-201404

main25051-B1140i201002-201404

main25051-B1170i201404

25628BGASKET, EGR INLET

main25628-40020i201002-201404

main25628-47010i201002-201404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89421HSENSOR, VACUUM

main89421-26030i201002-201404

main89421-52010i201002-201404

9011908C75

main90119-08C75

9016360025

main90163-60025

9017908017

main90179-08017

9167180818

main91671-80818

91671A0614

main91671-A0614

91671A0616

main91671-A0616

9212280845

main92122-80845

9415180800

main94151-80800

21 parts on this diagram · 3 diagrams in section
