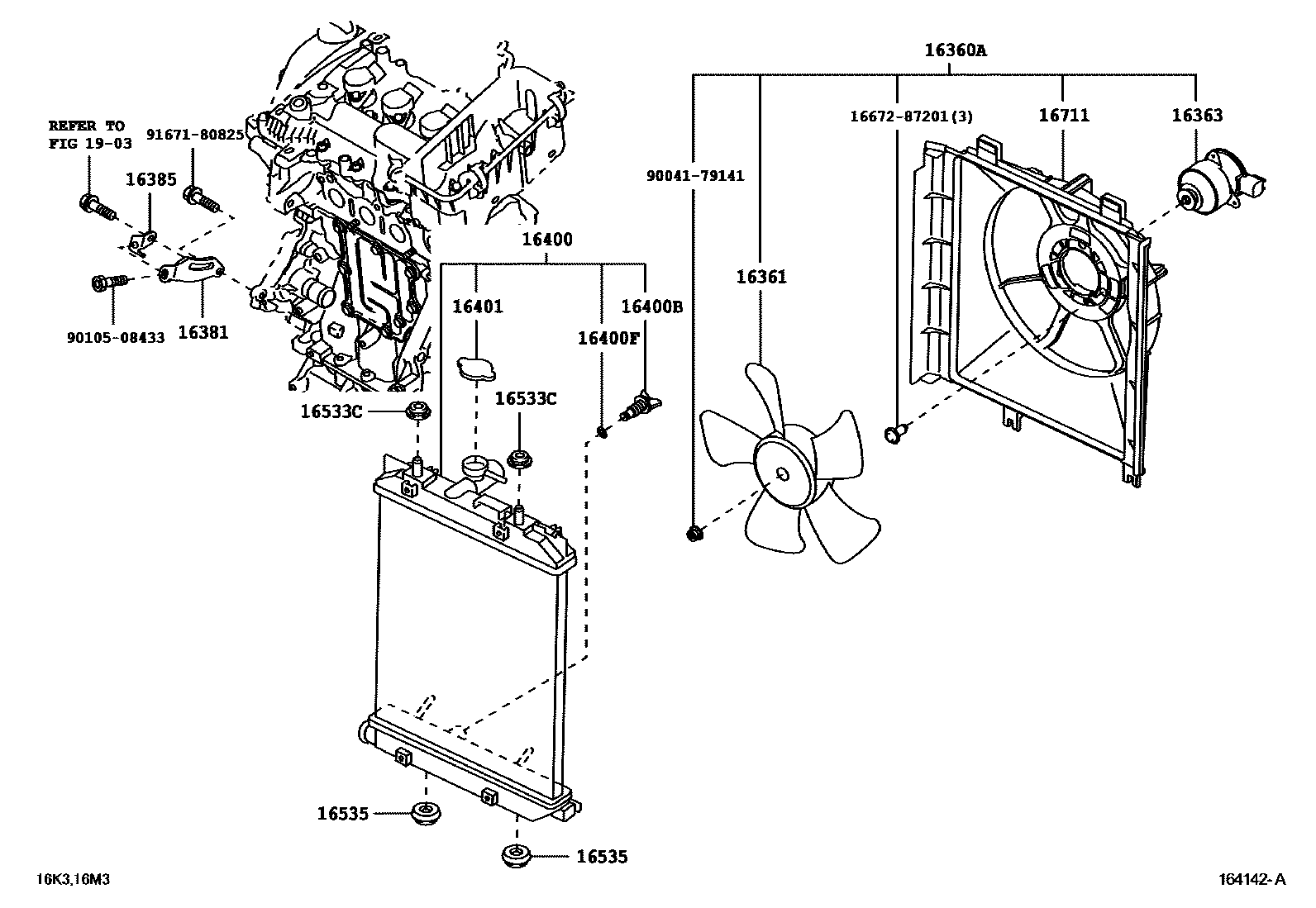

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16360AFAN ASSY, W/MOTOR

main16360-B1171i1KRFE..KGC3#; 1NRFE..NGC30201002-201206

16361FAN

main16361-B1070i1KRFE..KGC3#; 1NRFE..NGC30201002-201206

16363MOTOR, COOLING FAN

main16363-B1040i1KRFE..KGC3#; 1NRFE..NGC30201002-201206

16381BAR, FAN BELT ADJUSTING

main16381-B1050i1KRFE..KGC3#201002-201010

main16381-B1060i1KRFE..KGC3#201011-201206

16385SLIDER, FAN BELT ADJUSTING

main16385-40011i1KRFE..KGC3#201002-201206

16400RADIATOR ASSY

main16400-B1270i1NRFE..NGC30201206-201404

main16400-B1300i1KRFE..KGC3#201206-201404

main16400-B1390i1KRFE..KGC3#201404

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1KRFE..KGC3#; 1NRFE..NGC30201206-201404

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-97201i1KRFE..KGC3#; 1NRFE..NGC30201002-201206

16401CAP SUB-ASSY, RADIATOR

main16401-97202i1KRFE..KGC3#; 1NRFE..NGC30201404

16533CGROMMET(FOR RADIATOR SUPPORT)

main90044-80621×2i1KRFE..KGC3#; 1NRFE..NGC30201002-201206

16535SUPPORT, RADIATOR, LOWER

main90044-80592×2i1KRFE..KGC3#; 1NRFE..NGC30201206-201404

16711SHROUD, FAN

main16711-B1070i1KRFE..KGC3#; 1NRFE..NGC30201002-201206

1903ALTERNATOR

→ Go to FIG 19-03

1667287201

main16672-87201

9004179141

main90041-79141

9010508433

main90105-08433

9167180825

main91671-80825

17 parts on this diagram · 6 diagrams in section
