Toyota PASSO — VENTILATION HOSE

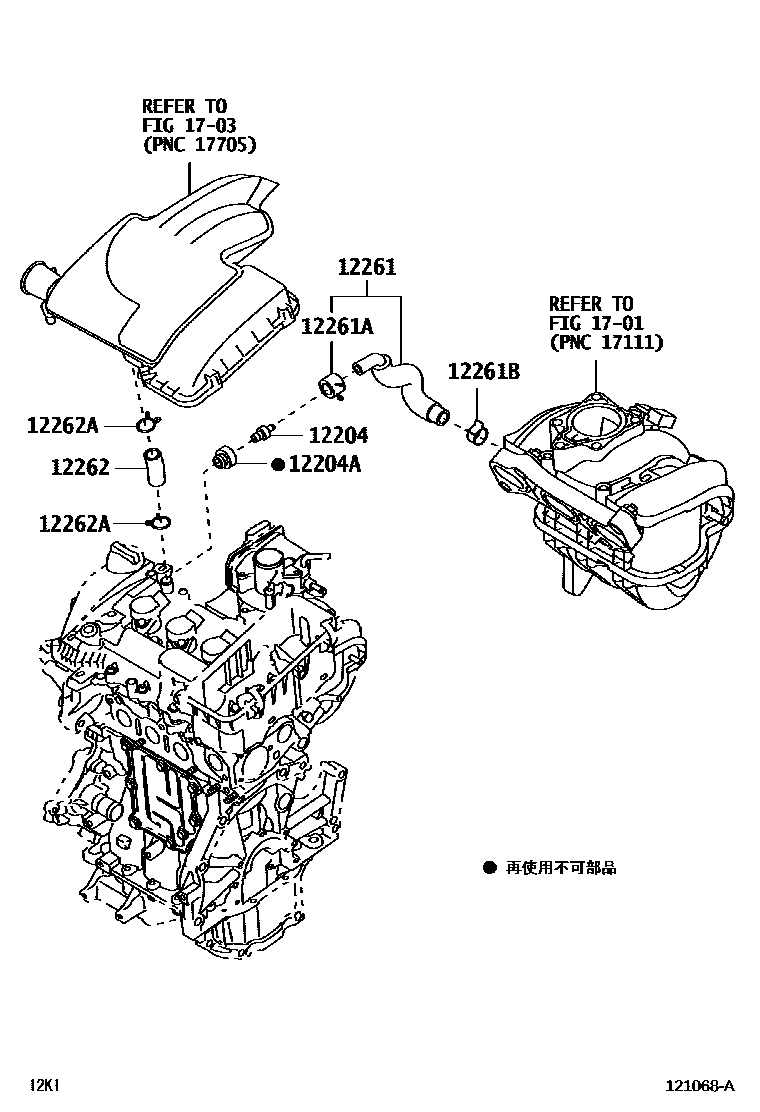

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

12204AGROMMET(FOR VENTILATION SYSTEM)

12261HOSE, VENTILATION

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

12262HOSE, VENTILATION, NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

9 parts on this diagram · 3 diagrams in section

VENTILATION HOSE for Toyota PASSO

This section contains 10 genuine Toyota parts for the VENTILATION HOSE system of the Toyota PASSO. Key components include: VALVE SUB-ASSY, VENTILATION, GROMMET(FOR VENTILATION SYSTEM), HOSE, VENTILATION, CLIP OR CLAMP(FOR VENTILATION HOSE).
