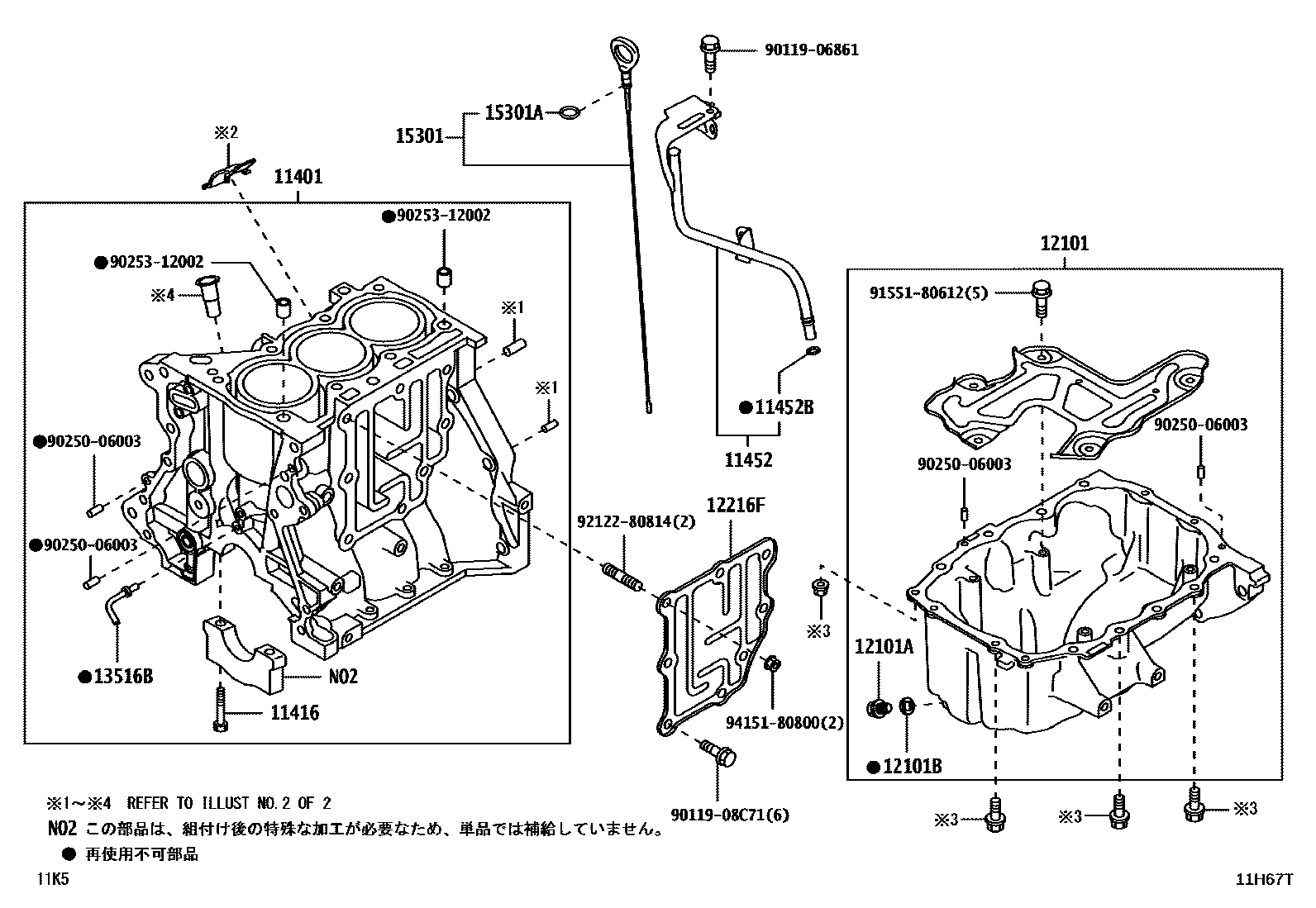

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-B9340i1KRFE..KGC3#201206-201310

main11401-B9341i1KRFE..KGC3#201404

main11401-B9342i1KRFE..KGC3#201311-201404

main11410-49016i1NRFE..NGC30201002-201005

main11410-49017i1NRFE..NGC30201206-201307

main11410-49018i1NRFE..NGC30201307-201309

main11410-49045i1NRFE..NGC30201309-201404

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10531×8i1KRFE..KGC3#201002-201206

main90910-02175×10i1NRFE..NGC30201404

11452GUIDE, OIL LEVEL GAGE

main11409-47011i1NRFE..NGC30201206-201207

main11409-47012i1NRFE..NGC30201207-201404

main11409-B1060i1KRFE..KGC3#201206-201404

main11409-B1070i1NRFE..NGC30201002-201005

main11409-B1080i1KRFE..KGC3#201404

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1KRFE..KGC3#201002-201206

main96741-19010i1NRFE..NGC30201206-201404

12101PAN SUB-ASSY, OIL

main12101-47110i1NRFE..NGC30201005-201112

main12101-47111i1NRFE..NGC30201112-201206

main12101-B1050i1NRFE..NGC30201002-201005

main12101-B1060i1KRFE..KGC3#201002-201206

main12101-B1070i1KRFE..KGC3#201404

12101APLUG(FOR OIL PAN DRAIN)

main90341-12032i1KRFE..KGC3#; 1NRFE..NGC30201002-201206

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1KRFE..KGC3#; 1NRFE..NGC30201002-201206

12216FPLATE, VENTILATION BAFFLE

main12216-40020i1KRFE..KGC3#201002-201206

13516BJET, OIL

main13516-40010i1KRFE..KGC3#; 1NRFE..NGC30201002-201206

15301GAGE SUB-ASSY, OIL LEVEL

main15301-47050i1NRFE..NGC30201206-201404

main15301-B1100i1KRFE..KGC3#201002-201206

main15301-B1110i1NRFE..NGC30201002-201005

main15301-B1120i1KRFE..KGC3#201404

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1KRFE..KGC3#201002-201206

9011906861

main90119-06861

9011908C71

main90119-08C71

9025006003

main90250-06003

9025312002

main90253-12002

9155180612

main91551-80612

9212280814

main92122-80814

9415180800

main94151-80800

18 parts on this diagram · 7 diagrams in section
